🔧 Focus - Fuel Pump Replacement

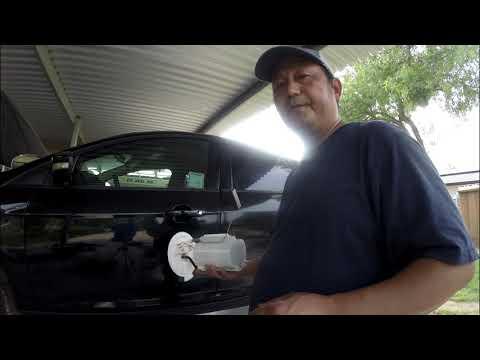

On your Focus, the fuel pump is part of an in-tank fuel pump module. Replacing it usually means lifting the rear seat, opening the service cover (if equipped), disconnecting the lines/wiring, and swapping the module without contaminating the tank.

Difficulty Level: Advanced | Estimated Time: 2.5-5.0 hours

Assumption: your Focus has a rear-seat service access cover; if not, the fuel tank must be lowered (steps included).

---

⚠️ Safety & Precautions

• ⚠️ Work outside or in strong ventilation; fuel vapors ignite easily.
• ⚠️ No smoking, flames, heaters, or spark tools near the car.
• ⚠️ Disconnect the battery negative cable before opening the tank.
• ⚠️ Relieve fuel pressure before disconnecting any fuel line to prevent spray.
• ⚠️ Keep dirt out of the tank; contamination can ruin the new pump/injectors.
• ⚠️ Use only approved fuel containers; wipe spills immediately.
• ⚠️ If you must raise the car, support it with jack stands; never rely on a jack.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Fire extinguisher Class B
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 10mm socket
• 8mm socket
• Ratchet
• 6-inch extension
• Flat trim tool
• Flathead screwdriver
• Needle-nose pliers
• Fuel line disconnect tool set (specialty)
• Brass punch (specialty)
• Small hammer
• Torque wrench (10–100 Nm range)
• Shop towels
• Catch pan
• Marker pen

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Fuel pump module assembly - Qty: 1
• Fuel pump module seal / tank O-ring - Qty: 1
• Fuel line retaining clips - Qty: 1 set

---

📋 Before You Begin

• 🅿️ Park on level ground, set the parking brake, and chock the rear wheels.
• Run the fuel level as low as possible; a lighter tank is safer and easier.
• Relieve fuel pressure: remove the fuel pump fuse/relay (engine bay fuse box), then start the engine and let it stall; crank for 3–5 seconds more.
• Disconnect the battery: use a 10mm socket to remove the negative terminal and isolate it so it can’t spring back.
• Clean the rear seat area so dirt can’t fall into the open tank.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Access the pump area

• Fold the rear seatbacks down.
• Lift the rear seat cushion: use a flat trim tool to pop the front seat-cushion retainers (they snap into clips).
• Peel back any insulation to find the round/oval service cover on the floor.

Step 2: Remove the service cover (if equipped)

• Remove the cover fasteners using an 8mm socket (some covers use screws; use a flathead screwdriver as needed).
• Lift the cover and set it aside.
• Use shop towels to wipe the top of the fuel pump module clean.

Step 3: Disconnect electrical connector

• Press the lock tab and unplug the pump electrical connector by hand (use needle-nose pliers gently only if the tab is stuck).
• If it’s brittle, don’t force it.

Step 4: Disconnect the fuel lines

• Place a catch pan and shop towels around the module to catch fuel.
• Use the fuel line disconnect tool set (specialty) to release the quick-connect fittings, then pull the lines straight off.
• Cap/cover the open lines with clean towels to keep dirt out.

Step 5: Mark module orientation

• Use a marker pen to mark the module position relative to the tank (helps keep the float/lines aligned during install).

Step 6: Remove the lock ring

• Use a brass punch (specialty) and small hammer to tap the lock ring counterclockwise until it releases.
• Brass helps avoid sparks on steel.

Step 7: Remove the fuel pump module

• Lift the module straight up slowly; tilt as needed to clear the float arm (the float measures fuel level).
• Let fuel drain into the tank; keep the module over the opening.
• Remove the old seal/O-ring from the tank opening by hand (use a flathead screwdriver carefully if stuck).

Step 8: Install the new seal and pump module

• Install the new seal/O-ring into the tank groove by hand (do not reuse the old one).
• Lower the new module into the tank, matching the alignment marks made with the marker pen.
• Install the lock ring and tap it clockwise using the brass punch (specialty) and small hammer until fully seated.
• Torque to 55 Nm (41 ft-lbs) if your lock ring design uses torqueable fasteners; if it’s a tap-lock ring, align fully to the factory stop marks.

Step 9: Reconnect lines and wiring

• Reconnect fuel lines by pushing them on until they click; gently tug to confirm they’re locked.
• Replace any broken line clips with the new ones by hand or with needle-nose pliers.
• Reconnect the electrical connector until it clicks.

Step 10: Reinstall the service cover and rear seat

• Reinstall the service cover using an 8mm socket.
• Torque to 4 Nm (35 in-lbs) for small cover fasteners if using a torque wrench; otherwise snug only (do not strip).
• Reposition insulation.
• Push the rear seat cushion down until the clips snap in.

Step 11 (If NO service cover): Lower the fuel tank (alternate path)

• Raise the rear safely using a floor jack (rated 3-ton minimum) and support with jack stands (rated 3-ton minimum); chock with wheel chocks.
• Support the tank with the floor jack and a block (use shop towels as padding).
• Remove tank strap bolts using a 10mm socket or 8mm socket as equipped, then lower the tank slightly to access the top connections.
• Disconnect electrical and fuel lines using the fuel line disconnect tool set (specialty), then lower the tank enough to remove the lock ring and module as above.
• Torque to 25 Nm (18 ft-lbs) for tank strap bolts on install (tighten evenly).

---

✅ After Repair

• Reconnect the battery negative terminal using a 10mm socket and Torque to 7 Nm (62 in-lbs).
• Prime the system: turn key to ON for 5 seconds, OFF for 5 seconds; repeat 3 times (don’t crank).
• Start the engine and let it idle for 1–2 minutes.
• Check carefully for leaks at the module top and fuel line connections (use a flashlight, not an open flame).
• If the fuel gauge reads wrong, recheck module orientation and connector seating.

---

💰 DIY vs Shop Cost

Shop Cost: $650-$1,250 (parts + labor)

DIY Cost: $180-$550 (parts only)

You Save: $470-$700 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2.5-4.0 hours.

---
