🔧 Escalade - Fuel Pump Replacement

On your Escalade, the fuel pump is part of an in-tank fuel pump module. Replacing it typically requires lowering the fuel tank so you can remove the pump module from the top of the tank.

Difficulty Level: Advanced | Estimated Time: 3-6 hours

---

⚠️ Safety & Precautions

• 🔥 Work outside or in a very well-ventilated area—fuel vapors ignite easily.
• 🧯 Keep all sparks/flames away (no smoking, no droplights with hot bulbs).
• 🧤 Wear safety glasses and fuel-resistant gloves—fuel can irritate skin/eyes.
• 🛑 Relieve fuel pressure before disconnecting lines to prevent fuel spray.
• ⬆️ Support the fuel tank securely before removing straps—fuel tanks are heavy.
• 🔋 Disconnect the negative battery cable before unplugging the pump wiring.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Fuel-resistant gloves
• Fire extinguisher (Class B)
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Transmission jack (specialty)
• Socket set (8mm-18mm)
• Ratchet (3/8" drive)
• Extensions (3" and 6")
• Torque wrench (10-200 ft-lbs)
• Flathead screwdriver
• Trim clip removal tool
• Fuel line quick-disconnect tool set (3/8" and 1/2") (specialty)
• Pliers
• Brass drift punch (specialty)
• Small hammer
• Shop towels
• Drain pan (at least 10 qt)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Fuel pump module assembly - Qty: 1
• Fuel pump module tank seal (O-ring gasket) - Qty: 1
• Fuel pump module lock ring - Qty: 1
• Fuel line retaining clips - Qty: 1 set

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the front wheels using wheel chocks.
• Try to run the fuel level as low as possible. Less fuel = much lighter tank.
• Relieve fuel pressure before opening any fuel line (steps below).
• Have a clean work area—dirt must not fall into the tank opening.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Relieve fuel pressure

• Open the hood and remove the engine cover if needed.
• Remove the fuel pump fuse/relay (from the underhood fuse block) using your fingers or pliers as needed.
• Start the engine and let it run until it stalls. Crank for 3 more seconds to bleed off remaining pressure.
• Turn the key off.

Step 2: Disconnect the battery

• Disconnect the negative battery cable using the appropriate socket from your socket set (8mm-10mm typical).
• Move the cable aside so it cannot spring back to the terminal.

Step 3: Raise and support the Escalade

• Lift the rear using a floor jack (rated 3-ton minimum) at the proper rear lift point.
• Set the vehicle onto jack stands (rated 3-ton minimum) and confirm it is stable before getting underneath.

Step 4: Support the fuel tank

• Position a transmission jack (specialty) under the fuel tank.
• Use a piece of wood on the jack saddle if needed to spread the load (prevents tank damage).

Step 5: Disconnect filler neck and vent connections

• At the filler neck area, loosen hose clamps using a flathead screwdriver.
• Disconnect any vent/EVAP hoses by releasing clips with a trim clip removal tool or pliers as needed.
• Place a drain pan (at least 10 qt) under the area and keep shop towels ready for drips.

Step 6: Disconnect electrical connector(s) at the tank

• Locate the fuel pump module wiring connector near the front/top of the tank area.
• Release the locking tab and unplug the connector by hand (use a flathead screwdriver carefully only if stuck).

Step 7: Disconnect the fuel lines

• Use the correct size from the fuel line quick-disconnect tool set (3/8" and 1/2") (specialty) to release the quick-connect fittings.
• Pull the line straight off—do not twist aggressively.
• If it won’t release, re-seat and try again.

Step 8: Remove shields/skid plate (if equipped)

• If there is a shield/skid plate under the tank, remove fasteners using a ratchet (3/8" drive) and socket set (10mm-15mm typical).
• Set hardware aside in a tray so you don’t lose it.

Step 9: Remove the fuel tank straps

• Keep slight upward pressure on the tank with the transmission jack (specialty).
• Remove the strap bolts using a ratchet (3/8" drive), extensions (3" and 6"), and the correct socket from your socket set (13mm-18mm typical).
• Lower the tank slowly a few inches and re-check for any hoses/wiring still connected.
• Torque to OEM specification (strap bolts) when reinstalling.

Step 10: Lower the tank enough to access the pump module

• Lower the tank on the transmission jack (specialty) until you can comfortably reach the top.
• Clean the top of the tank around the pump opening using shop towels so dirt can’t fall in.

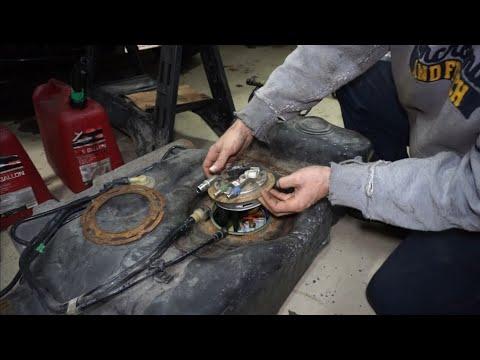

Step 11: Remove the lock ring and pump module

• Use a brass drift punch (specialty) and small hammer to tap the lock ring counterclockwise until it releases.
• Lift the fuel pump module up carefully—tilt as needed to clear the float arm (fuel level sender).
• Remove and discard the old fuel pump module tank seal (O-ring gasket).

Step 12: Install the new pump module and seal

• Install the new fuel pump module tank seal (O-ring gasket) into the tank groove.
• Lower the new fuel pump module assembly into the tank without folding/pinching the seal.
• Install the new fuel pump module lock ring and tap clockwise using the brass drift punch (specialty) and small hammer until fully seated.
• Torque to OEM specification (lock ring seating requirement) if a spec/procedure is provided with your module/service info.

Step 13: Reinstall the tank

• Raise the tank using the transmission jack (specialty).
• Reconnect fuel lines until they click; gently tug to confirm they are locked.
• Reconnect the electrical connector(s) by hand until the lock clicks.
• Reconnect filler neck and vent hoses, tightening clamps with a flathead screwdriver.
• Reinstall tank straps and bolts using a ratchet (3/8" drive) and socket set (13mm-18mm), then torque to OEM specification.
• Reinstall any shield/skid plate using a ratchet (3/8" drive) and socket set, then torque to OEM specification.

Step 14: Restore power and prime the fuel system

• Reinstall the fuel pump fuse/relay by hand.
• Reconnect the negative battery cable using the correct socket from your socket set, then torque to OEM specification.
• Turn the key to ON (engine off) for 5 seconds, then OFF for 5 seconds. Repeat 3 times to prime the system.

Step 15: Start and inspect for leaks

• Start the engine and let it idle.
• Check under the vehicle for leaks at the fuel line connections and around the tank area using a flashlight (no incandescent trouble lights).

---

✅ After Repair

• Test drive 5-10 minutes, then re-check for fuel smell or damp spots under the tank.
• If the check engine light comes on, you may need to scan for EVAP/fuel pressure codes (often from a loose connection).
• Keep at least 1/4 tank to help pump cooling.

---
