🔧 Corolla - Fuel Pump Replacement

On your Corolla, the fuel pump sits inside the fuel tank as part of an in-tank pump module. You’ll access it from inside the car under the rear seat, swap the pump/module, then prime the system and check carefully for leaks.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• 🧯 Work in a well-ventilated area; fuel vapors ignite easily.
• 🔥 No smoking, no sparks, and avoid using trouble lights with hot bulbs.
• 🧤 Wear safety glasses and fuel-resistant gloves; fuel can irritate skin/eyes.
• 🔋 Disconnect the negative battery cable before opening the fuel system.
• ⛔ Relieve fuel pressure before disconnecting fuel lines to prevent spray.
• 🧼 Keep dirt out of the tank—clean around the opening before removal.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Fuel-resistant nitrile gloves
• Fire extinguisher (Class B)
• Trim removal tool
• Phillips screwdriver
• Flathead screwdriver (small)
• 8mm socket
• 10mm socket
• 1/4" drive ratchet
• 3" extension (1/4" drive)
• Torque wrench (inch-pound)
• Needle-nose pliers
• Clean shop towels
• Painter’s tape and marker
• Plastic catch pan

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Fuel pump module assembly - Qty: 1
• Fuel pump module tank seal (O-ring/gasket) - Qty: 1
• Fuel pump strainer (sock filter) - Qty: 1
• Replacement fuel line retaining clip(s) - Qty: 1-2

---

📋 Before You Begin

• 🅿️ Park on level ground, set the parking brake, and open a door/window for ventilation.
• 🧼 Vacuum/clean the rear seat area so dirt won’t fall into the tank opening.
• 🔋 Use a 10mm socket to disconnect the negative battery terminal and isolate it so it can’t spring back.
• ⛽ Plan to work with a lower fuel level if possible; a full tank makes the module messier to remove.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Relieve fuel pressure

• Remove the fuel filler cap to release tank vapor pressure.
• Open the engine compartment fuse/relay box, then pull the fuel pump/EFI circuit power so the engine can stall from lack of fuel. Use needle-nose pliers to pull the relay/fuse straight up.
• Reconnect the negative battery temporarily with a 10mm socket, start the engine, and let it run until it stalls. Crank for 2-3 seconds more to bleed off remaining pressure.
• Disconnect the negative battery again using the 10mm socket.
• Tip: If it won’t start, pressure may already be low.

Step 2: Remove the rear seat cushion

• From the rear passenger area, release the seat cushion clips (they pop free). Use a trim removal tool to help lift if needed.
• Lift the cushion out and set it aside on a clean surface.

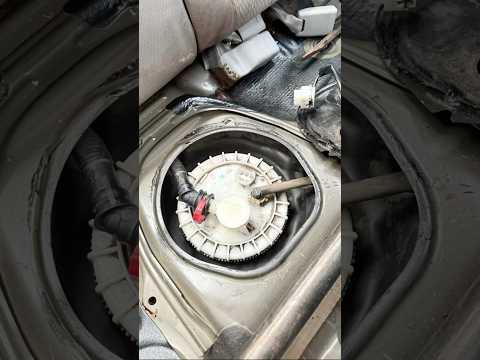

Step 3: Open the fuel pump access cover

• Locate the metal access panel (often called the service hole cover—it’s the factory access opening above the tank).
• Remove fasteners using an 8mm socket or Phillips screwdriver (varies by cover).
• Peel back any butyl sealer carefully using a flathead screwdriver (small) without bending the cover too much.

Step 4: Disconnect electrical connector(s) and fuel line

• Unplug the pump/module electrical connector by pressing the locking tab; use a flathead screwdriver (small) only if the tab is stubborn.
• Place shop towels under the fuel line connection.
• Disconnect the fuel line quick-connector (a quick-connect is a push-on fitting with a locking tab/clip). Use needle-nose pliers to remove any retaining clip, then press the connector tabs and pull straight off.
• Catch any drips in the plastic catch pan.

Step 5: Clean the area around the pump flange

• Wipe and clean the top of the module and surrounding area using shop towels.
• Use painter’s tape and marker to mark the module’s orientation to the tank (helps reinstall it the same way).
• Tip: Cleanliness prevents tank contamination.

Step 6: Remove the fuel pump module retaining hardware

• Your Corolla uses a top-retained module (either small bolts/nuts or a retaining ring depending on build). Remove the retainers evenly in a crisscross pattern using an 8mm socket.
• If equipped with a retaining ring style, carefully work it loose without making sparks; use a flathead screwdriver (small) only on plastic tabs—not on metal-to-metal contact.
• Set hardware aside in a tray.

Step 7: Lift out the pump module

• Lift the module straight up slowly. Angle it as needed to clear the float arm (fuel level sensor arm).
• Let fuel drain from the module into the tank for a moment, then move it to the plastic catch pan.
• Remove the old tank seal (O-ring/gasket—a rubber sealing ring that prevents leaks). Use a trim removal tool to lift it if it’s stuck.

Step 8: Install the new seal and new pump/module

• Install the new O-ring/gasket onto the tank opening (or onto the module, whichever matches your replacement design). Make sure it sits flat and is not twisted.
• Transfer any required items from the old unit to the new one if your part requires it (commonly the fuel level sensor or vapor/line fittings). Use a Phillips screwdriver and flathead screwdriver (small) as needed.
• Lower the new module into the tank carefully, keeping the float arm from bending.
• Align to your orientation mark, then install the retainers finger-tight first.
• Tighten retainers evenly in a crisscross pattern using an inch-pound torque wrench: Torque to 4.4 Nm (39 in-lbs).

Step 9: Reconnect the fuel line and electrical connector

• Push the fuel line quick-connector on until it clicks. Install a new retaining clip (if equipped) using needle-nose pliers.
• Gently tug the line to confirm it’s locked.
• Reconnect the electrical connector until it clicks.

Step 10: Reinstall the access cover and rear seat

• Reinstall the service hole cover and fasteners using an 8mm socket or Phillips screwdriver.
• Reinstall the rear seat cushion and press down firmly to snap the clips back in.

---

✅ After Repair

• 🔋 Reconnect the negative battery terminal using a 10mm socket.
• 🔑 Prime the system: turn ignition to ON (engine off) for 5 seconds, then OFF; repeat 3-5 times to build fuel pressure.
• 🧼 Start the engine and inspect the pump cover area for any fuel smell or wetness. If you see any leak, shut the engine off immediately.
• 🛠️ If the check engine light comes on, scan for codes (often from a loose connector) and re-check connections.

---

💰 DIY vs Shop Cost

Shop Cost: $650-$1,200 (parts + labor)

DIY Cost: $180-$550 (parts only)

You Save: $470-$650 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-3 hours.

---
