🔧 Rogue - Fuel Pump Replacement

You’ll be replacing the in-tank electric fuel pump module that sits inside the fuel tank under the rear seat. This restores proper fuel pressure if you have hard starting, stalling, or low-power issues caused by a weak pump.

Difficulty Level: Intermediate | Estimated Time: 2–3 hours

---

⚠️ Safety & Precautions

• ⚠️ Work in a very well-ventilated area; gasoline vapors are toxic and highly flammable.
• ⚠️ Keep all sparks, cigarettes, open flames, and hot tools away from the work area.
• ⚠️ Disconnect the negative battery cable before opening the fuel system to reduce fire and airbag risk.
• ⚠️ Relieve fuel pressure first to avoid fuel spray when disconnecting lines.
• ⚠️ Wear safety glasses and fuel-resistant gloves; fuel can irritate skin and eyes.
• ⚠️ Avoid creating sparks when removing the pump lock ring; use non-sparking tools if possible.
• ⚠️ Keep a class B/C fire extinguisher nearby, just in case.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🧰 10mm socket
• 🧰 12mm socket
• 🧰 Ratchet handle (3/8" drive)
• 🧰 3/8" drive extension (3–6")
• 🧰 Flathead screwdriver (medium)
• 🧰 Phillips screwdriver #2
• 🧰 Plastic interior trim removal tool
• 🧰 Fuel line quick-disconnect tool set (specialty)
• 🧰 Fuel pump lock ring tool (Nissan-style, 5-tab) (specialty)
• 🧰 Plastic or brass drift/punch (non-sparking)
• 🧰 Small hammer
• 🧰 Needle-nose pliers
• 🧰 Shop rags
• 🧰 Drain pan or small container for fuel
• 🧰 Torque wrench (inch-lb and ft-lb capable)
• 🧰 Flashlight or work light (explosion-proof if possible)
• 🧰 Safety glasses
• 🧰 Nitrile or fuel-resistant gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🔩 Fuel pump module assembly (in-tank) for Rogue AWD 2.5L - Qty: 1
• 🔩 Fuel pump module sealing O-ring/gasket - Qty: 1
• 🔩 Fuel pump lock ring - Qty: 1 (recommended if original is corroded or damaged)
• 🔩 Fuel line retaining clips - Qty: 2–4 (optional, replace if any break)
• 🔩 Electrical connector terminal repair kit - Qty: 1 (optional, only if connector is damaged)
• 🔩 Shop towels - Qty: 1 pack
• 🔩 Fuel system-safe cleaning spray - Qty: 1

---

📋 Before You Begin

• Park your Rogue on a flat surface, shift to Park, and set the parking brake.
• Ideally, have less than half a tank of fuel; a lower level makes the pump lighter and reduces spillage.
• Open all doors or at least the rear doors for ventilation.
• Turn ignition OFF and remove the key from inside the vehicle.
• Disconnect the negative battery terminal using a 10mm socket and move the cable aside so it cannot touch the post.
• Relieve fuel pressure:
  • Locate the fuel pump fuse in the engine bay or interior fuse box (refer to fuse box cover diagram).
  • Pull the fuse using needle-nose pliers.
  • Start the engine and let it run until it stalls, then crank for 3–5 more seconds.
  • Turn ignition OFF.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Access the fuel pump under the rear seat

• Open both rear doors and locate the bottom seat cushion.
• Use your hands (or a plastic trim removal tool) to lift the front edge of the rear seat cushion straight up; it is held in by clips.
• Once the front clips release, tilt the cushion up and forward, then carefully pull it out of the vehicle. If there are bolts at the rear, remove them with a 12mm socket and ratchet.
• You’ll see a metal access cover with wires on the right side (passenger side); this is the fuel pump access panel.

Step 2: Remove the fuel pump access cover

• Use a Phillips screwdriver #2 to remove the screws holding the metal access cover.
• Lift the cover and gently peel back any sealing tape or butyl sealant. Use a plastic trim tool if needed to avoid bending the cover.
• Set the cover and screws aside in a clean area.
• Clean dirt and dust around the pump top with shop towels and fuel system-safe cleaning spray. Keep debris out of tank.

Step 3: Disconnect electrical connector and fuel lines

• Use a flathead screwdriver to gently lift the tab on the electrical connector and pull the connector off the pump top.
• Place shop rags around the fuel line connections to catch any drips.
• Use your fuel line quick-disconnect tool set on the fuel lines:
  • Slide the tool into the connection to release the internal clips.
  • Gently pull the line off while holding the tool in place.
• Cap or wrap the open fuel lines with clean shop rags.

Step 4: Remove the fuel pump lock ring

• Look at the lock ring that holds the pump module in the tank; note its position and the alignment marks on the tank and ring. Take a photo for reference.
• If you have a fuel pump lock ring tool, place it over the ring tabs and turn counterclockwise using a ratchet or small hammer on the tool.
• If you don’t have the special tool, place a plastic or brass drift/punch on a tab of the ring and gently tap with a hammer counterclockwise to loosen it. Avoid steel tools that can spark.
• Once loose, spin the lock ring off by hand and remove it. Inspect it for damage or corrosion.

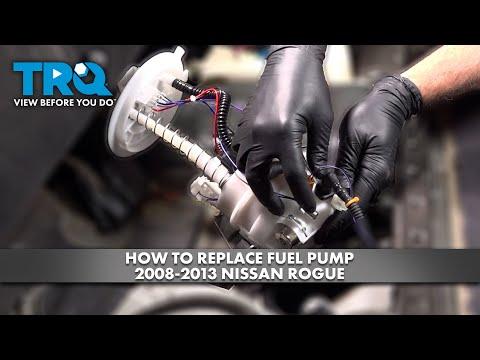

Step 5: Remove the fuel pump module

• Carefully lift the fuel pump module straight up by the top flange.
• Fuel will drip; keep shop rags and a drain pan close.
• As you lift, tilt the module slightly to maneuver the float arm (the small arm with a float on it) out of the tank without bending it.
• Let excess fuel drain from the module into the drain pan.
• Remove and discard the old sealing O-ring/gasket from the tank opening.

Step 6: Prepare the new fuel pump module

• Compare the new pump module to the old one to confirm:
  • Same height and shape
  • Same number and style of line connections
  • Same electrical connector configuration
• Install any supplied new fuel level sensor or transfer the old sensor if the new module requires it, following the pump’s instructions and using a flathead screwdriver or needle-nose pliers for clips.
• Lightly coat the new sealing O-ring with clean fuel for easier seating.

Step 7: Install the new sealing O-ring and pump module

• Place the new O-ring into the groove on the tank opening. Make sure it lies flat with no twists.
• Carefully lower the new pump module into the tank:
  • Guide the float arm in without bending it.
  • Keep the O-ring in place as you lower the module.
• Align the tab or mark on the top of the pump module with the matching mark on the tank.

Step 8: Reinstall and tighten the lock ring

• Place the lock ring over the module and start it by hand, ensuring it engages the threads evenly.
• Use the fuel pump lock ring tool or a plastic/brass drift and hammer to turn the ring clockwise until the alignment marks line up and the ring is fully seated.
• Do not overtighten; the ring should be snug with no play and the module should not move. Even compression prevents leaks.

Step 9: Reconnect fuel lines and electrical connector

• Remove any rags from the fuel lines.
• Push each fuel line back onto its matching port on the pump until you feel or hear a click. Pull gently to confirm it is locked.
• Reconnect the electrical connector by pushing it on until it clicks. Tug gently to ensure it is secure.
• Wipe the area dry with shop towels so you can spot any future leaks easily.

Step 10: Reinstall access cover and rear seat

• Place the metal access cover back over the pump opening.
• Reinstall the screws with a Phillips screwdriver #2 and snug them evenly.
• If there was sealing tape, press it back down or replace with new butyl seal if needed.
• Position the rear seat cushion back into the vehicle.
• Engage any rear locating hooks or install rear bolts with a 12mm socket and tighten them firmly.
• Push down firmly on the front of the seat cushion to lock the front clips back into place.

Step 11: Restore power and prime the fuel system

• Reinstall the fuel pump fuse you removed earlier using needle-nose pliers.
• Reconnect the negative battery cable with a 10mm socket and snug the nut. Terminal should not rotate by hand.
• Without starting the engine, turn the ignition to ON (run) for about 5–10 seconds; you should hear the pump humming.
• Turn ignition OFF and repeat this ON–OFF cycle 2–3 times to fully prime the system.

Step 12: Start the engine and check for leaks

• Start the engine and let it idle.
• Listen for smooth running; it may take an extra second to start the first time.
• With the engine running, carefully lift the seat cushion front edge and inspect around the pump access cover area (without removing the cover) for any strong fuel smell.
• If you smell fuel or see wet spots, shut the engine off immediately and recheck line connections and lock ring seating.

---

✅ After Repair

• Let the engine idle for 5–10 minutes and check for any warning lights on the dash.
• Check under the vehicle for any drips or fuel smell.
• Take your Rogue for a short, gentle drive; verify smooth acceleration with no hesitation or stalling.
• If you previously had a check engine light related to fuel pressure, you may need a scan tool to clear stored codes, though many will clear on their own after several drive cycles.
• Recheck under the rear seat after the test drive for any sign of leaks or fuel odors.

---

💰 DIY vs Shop Cost

Shop Cost: $650–$900 (parts + labor)

DIY Cost: $250–$450 (parts only)

You Save: $400–$450 by doing it yourself!

Shop labor rates vary but typically run $100–$150/hour. This repair takes a shop approximately 2–3 hours.

---
