🔧 Fuel Pump - Replacement

This job replaces the in-tank fuel pump module on your Passat. On this model, the pump is accessed from inside the cabin under the rear seat area, so the fuel tank usually does not need to be removed.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• Work outside or in a very well-ventilated area. Fuel vapors are flammable.
• No smoking, sparks, open flames, or hot work anywhere nearby.
• Disconnect the negative battery cable before opening the fuel system.
• Relieve fuel pressure before disconnecting any fuel lines.
• Keep a fire extinguisher rated for flammable liquids nearby.
• Wear safety glasses and fuel-resistant gloves.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm wrench
• Torx T20 screwdriver
• Fuel pump lock ring tool (specialty)
• Small flat blade screwdriver
• Trim panel tool
• Needle-nose pliers
• Shop rags
• Drain pan
• Torque wrench
• Safety glasses
• Fuel-resistant gloves
• Jack stands

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Fuel pump module - Qty: 1
• Fuel pump seal ring - Qty: 1
• Fuel line O-rings - Qty: 1 set
• Fuel filter - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Lower the fuel level as much as possible before starting. A near-empty tank makes this much easier.
• Open the fuel cap, then disconnect the negative battery cable with a 10mm wrench.
• Relieve fuel pressure by removing the fuel pump fuse or relay and cranking the engine until it stalls, if applicable for your Passat.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Access the fuel pump module

• Use a trim panel tool to lift the rear seat cushion.
• Remove the fuel pump access cover using a Torx T20 screwdriver.
• Set the cover and screws aside in order.

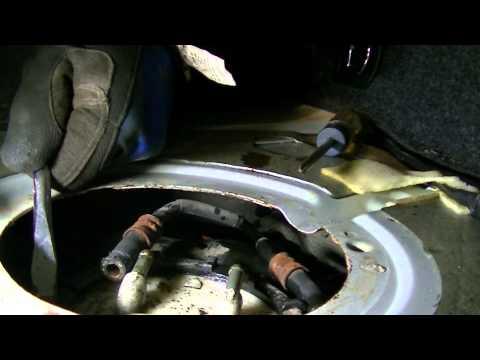

Step 2: Disconnect electrical and fuel connections

• Use a small flat blade screwdriver to release the electrical connector lock if needed.
• Disconnect the fuel supply/return lines carefully with a small flat blade screwdriver or by hand, depending on the connector type.
• Wrap the area with shop rags to catch any fuel drips.

Step 3: Remove the lock ring

• Use the fuel pump lock ring tool (specialty) to turn the retaining ring counterclockwise.
• Lift the lock ring out and keep it clean.
• Keep dirt out of the tank.

Step 4: Remove the fuel pump module

• Carefully lift the fuel pump module straight up and out of the tank.
• Use a drain pan under the opening if fuel spills.
• Remove the old seal ring from the tank opening.

Step 5: Install the new seal and pump

• Install the new fuel pump seal ring in the tank opening.
• Lower the new fuel pump module straight into place using the same orientation as the old one.
• Install the lock ring and tighten it with the fuel pump lock ring tool (specialty).
• Torque to manufacturer specification if available on the replacement kit or service data.

Step 6: Reconnect lines and wiring

• Reconnect the fuel lines until they click locked in place.
• Reconnect the electrical connector.
• Use needle-nose pliers only if a retaining clip needs careful repositioning.

Step 7: Reassemble the interior

• Reinstall the access cover with a Torx T20 screwdriver.
• Reinstall the rear seat cushion by hand.
• Reconnect the negative battery cable with a 10mm wrench.

---

✅ After Repair

• Cycle the ignition key or start button to ON for 5 seconds, then OFF, 2-3 times to prime the system.
• Check closely for fuel leaks at the module, lines, and access area.
• Start the engine and let it idle while watching for warning lights.
• If the engine cranks long or stalls, recheck the fuel line connections and electrical plug.

---

💰 DIY vs Shop Cost

Shop Cost: $700-$1,300 (parts + labor)

DIY Cost: $180-$450 (parts only)

You Save: $500-$850 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
