🔧 Corolla - Fuel Pump Replacement

On your Corolla, the fuel pump is part of an in-tank module accessed from inside the car under the rear seat. The job is mostly careful disassembly, keeping dirt out of the tank, and swapping the pump/module without damaging the fuel lines or seal.

Difficulty Level: Intermediate | Estimated Time: 1.5-3 hours

---

⚠️ Safety & Precautions

• ⚠️ Work outside or in a well-ventilated area—fuel vapors are flammable.
• ⚠️ No smoking, no hot lights, and keep a fire extinguisher nearby.
• ⚠️ Disconnect the negative battery cable before opening the fuel system.
• ⚠️ Relieve fuel pressure before disconnecting any fuel line.
• ⚠️ Clean around the access area first—dirt in the tank can damage the new pump.
• ⚠️ Replace the tank seal (gasket); reusing it can cause fuel smell/leaks.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" ratchet
• 3" extension
• Phillips screwdriver #2
• Flat trim tool
• Needle-nose pliers
• Pick tool
• Brass punch (specialty)
• Dead-blow mallet
• Shop vacuum
• Clean shop towels
• Plastic catch pan
• Nitrile gloves
• Safety glasses
• Inch-pound torque wrench (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Fuel pump module assembly - Qty: 1
• Fuel tank pump module seal/gasket - Qty: 1
• Fuel pump strainer (sock filter) - Qty: 1
• Fuel pump lock ring - Qty: 1 (recommended if corroded/damaged)

---

📋 Before You Begin

• Park on level ground, set the parking brake, and open the windows for ventilation.
• Lower the fuel level if possible (under 1/2 tank is easier and less messy).
• Have a shop vacuum ready and clean the rear seat area before opening the access cover.
• Plan to replace the seal/gasket—this is the #1 cause of post-repair fuel smell.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm what you’re replacing

• Are you replacing the entire fuel pump module (recommended) or the pump motor only inside the module?
• If you’re not sure, choose module assembly—it reduces comebacks and fitment issues.

Step 2: Relieve fuel pressure

• Open the hood and locate the under-hood fuse/relay box.
• Remove the fuel pump control relay (commonly labeled C/OPN on Toyotas) using needle-nose pliers.
• Start the engine and let it run until it stalls, then crank for 2–3 seconds to bleed off remaining pressure.
• If you can’t find a clearly labeled fuel-pump relay, stop here and tell me what relay labels you see.

Step 3: Disconnect the battery

• Disconnect the negative battery terminal using a 10mm socket.
• Prevents sparks near fuel vapors.

Step 4: Remove the rear seat bottom cushion

• From the rear footwell area, release the seat cushion clips (push back and lift) using a flat trim tool if needed.
• Lift the seat bottom out and set it aside.

Step 5: Open the fuel pump access cover

• Locate the metal access cover on the floor under the seat area.
• Remove the cover fasteners using a 10mm socket or Phillips screwdriver #2 (fastener type varies).
• Peel back any butyl sealant carefully with a flat trim tool.

Step 6: Clean the area before disconnecting anything

• Use a shop vacuum and clean shop towels to remove all dirt around the module top.
• Any dirt that falls in can ruin the new pump.

Step 7: Disconnect electrical connector and fuel lines

• Unplug the fuel pump electrical connector by releasing the lock tab using a pick tool.
• Place clean shop towels around the fuel line connection.
• Disconnect the quick-connect fuel line by pressing the connector tabs and pulling straight off (use a flat trim tool gently if stuck).
• Catch any fuel drips in a plastic catch pan.

Step 8: Remove the lock ring

• The module is held by a large lock ring.
• Use a brass punch (specialty) and dead-blow mallet to tap the lock ring counterclockwise until it releases.
• Brass reduces spark risk versus steel.

Step 9: Remove the fuel pump module

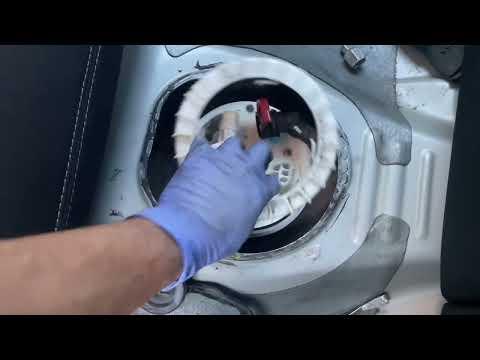

• Lift the module straight up slowly, guiding the float arm and strainer out without bending anything.
• Angle it as needed and drain fuel from the module into a plastic catch pan.
• Remove and discard the old seal/gasket from the tank opening using a pick tool.

Step 10: Swap parts (module assembly or pump motor)

• If replacing the whole module: Compare the new module to the old one (connector, line port, float position).
• If replacing pump motor only: Disassemble the module on a clean bench using a Phillips screwdriver #2 and flat trim tool, then transfer the pump motor and strainer exactly as removed.
• Replace the strainer (sock) if your kit includes one.

Step 11: Install new seal and reinstall module

• Lightly seat the new tank seal/gasket in the groove (do not twist it) using your hands and nitrile gloves.
• Lower the module in carefully, guiding the float and strainer into the tank.
• Install the lock ring and tap it clockwise using the brass punch (specialty) and dead-blow mallet until it’s fully seated/aligned to its stops.
• Torque: Lock ring is seated to its mechanical stop (no small bolt torque spec applies).

Step 12: Reconnect fuel line and electrical connector

• Push the fuel line on until you feel/hear a solid click; then tug-check by hand.
• Reconnect the electrical connector until it clicks.

Step 13: Close access cover and reinstall rear seat

• Reinstall the access cover using a 10mm socket or Phillips screwdriver #2.
• Reinstall the rear seat bottom cushion and press down to engage the clips.

Step 14: Prime the system and check for leaks

• Reconnect the negative battery terminal using a 10mm socket.
• Reinstall the fuel pump relay using needle-nose pliers.
• Turn the key to ON (do not start) for 5 seconds, then OFF. Repeat 2–3 times to prime.
• Start the engine and check under the rear seat access area for any fuel smell or seepage.

---

✅ After Repair

• Let the engine idle for 2–3 minutes and re-check for leaks at the quick-connect fitting.
• Road-test for 10–15 minutes, then re-check for fuel odor inside the cabin.
• If you get a check engine light, you may have a loose connector or an EVAP seal issue (often the access cover sealing area).

---

💰 DIY vs Shop Cost

Shop Cost: $650-$1,200 (parts + labor)

DIY Cost: $180-$600 (parts only)

You Save: $470-$600 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
