🔧 Escape - Fuel Pump Replacement

Replacing the fuel pump on your Escape means removing the fuel tank, disconnecting the fuel lines and wiring, then replacing the in-tank fuel pump module. The fuel pump is inside the tank and supplies pressurized fuel to the engine, so this job requires careful fuel-safety handling.

Difficulty Level: Advanced | Estimated Time: 3-5 hours

---

⚠️ Safety & Precautions

• 🔥 Work outside or in a very well-ventilated area. Gasoline fumes are flammable and dangerous.
• 🚫 Keep all sparks, flames, cigarettes, heaters, and power tools that can spark away from the work area.
• 🧯 Keep a Class B fire extinguisher nearby. This is the type rated for fuel fires.
• ⚠️ Relieve fuel pressure before disconnecting any fuel line.
• 🔋 Disconnect the negative battery cable before working on the fuel system.
• ⛽ Run the fuel tank as low as possible before starting. A full tank is heavy and unsafe to lower.
• 🛞 Support your Escape securely with jack stands. Never work under a vehicle supported only by a jack.
• 👀 Wear safety glasses and fuel-resistant gloves. Gasoline can injure eyes and skin.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 8mm socket
• 10mm socket
• 13mm socket
• 15mm socket
• 3/8-inch ratchet
• 3/8-inch extension set
• Torque wrench rated 10-100 Nm
• Flat-blade screwdriver
• Fuel line disconnect tool set (specialty)
• Fuel pump lock ring tool (specialty)
• Transmission jack or low-profile floor jack
• Wood block
• Floor jack rated 3-ton minimum
• Jack stands rated 3-ton minimum
• Wheel chocks
• Plastic trim tool
• Fuel-safe drain pan
• Shop towels
• Safety glasses
• Fuel-resistant gloves
• Class B fire extinguisher

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Fuel pump module assembly - Qty: 1
• Fuel pump tank seal - Qty: 1
• Fuel pump lock ring - Qty: 1
• Fuel line retaining clips - Qty: As needed
• Fresh gasoline - Qty: As needed

---

📋 Before You Begin

• 🅿️ Park your Escape on level ground, set the parking brake, and chock the front wheels.
• ⛽ Drive the fuel level down close to empty before starting.
• 🔋 Disconnect the negative battery cable with a 10mm socket.
• 🧰 A fuel line disconnect tool separates spring-lock fuel connectors without breaking them.
• 🔧 A fuel pump lock ring tool turns the large retaining ring that holds the pump in the tank.
• 📱 No infotainment menu or scan-tool command is normally required for fuel pump replacement on your Escape.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Relieve Fuel Pressure

• Use a plastic trim tool to remove the interior fuse panel cover.
• Use the fuse diagram on the cover to locate the fuel pump fuse or relay.
• Use your fingers or a plastic trim tool to remove the fuel pump fuse or relay.
• Start the engine and let it run until it stalls.
• Crank the engine for 3-5 seconds more to release remaining pressure.
• Turn the ignition off.
• Keep your face away from fuel lines.

Step 2: Disconnect the Battery

• Open the hood.
• Use a 10mm socket and 3/8-inch ratchet to loosen the negative battery terminal.
• Move the cable aside so it cannot touch the battery post.

Step 3: Raise and Support the Vehicle

• Place wheel chocks at the front wheels.
• Use a floor jack rated 3-ton minimum to lift the rear of your Escape at the proper rear lift point.
• Place jack stands rated 3-ton minimum under the rear support points.
• Lower the vehicle gently onto the stands.
• Give the vehicle a light push to confirm it is stable.

Step 4: Remove the Rear Underbody Shields if Equipped

• Use an 8mm socket or 10mm socket with a 3/8-inch ratchet to remove the shield fasteners.
• Use a plastic trim tool to remove any push clips.
• Set the shields aside in order.

Step 5: Support the Fuel Tank

• Place a wood block on a transmission jack or low-profile floor jack.
• Position it under the center of the fuel tank.
• Raise the jack just enough to support the tank. Do not crush the tank.

Step 6: Disconnect Fuel Filler and Vent Connections

• Use an 8mm socket or flat-blade screwdriver to loosen the fuel filler hose clamp.
• Slide the filler hose off the tank neck by hand.
• Use a flat-blade screwdriver to gently release vent hose clips.
• Mark hose positions with shop towels or tape if needed.
• Do not force plastic fittings.

Step 7: Disconnect Fuel Lines and Electrical Connectors

• Place a fuel-safe drain pan under the fuel line area.
• Use shop towels around the fuel connector to catch drips.
• Use the correct size from the fuel line disconnect tool set to release the fuel line connector.
• Press the electrical connector lock tab by hand and unplug the fuel pump wiring connector.
• Use a flat-blade screwdriver only if the lock tab is stuck, and pry gently.

Step 8: Remove the Fuel Tank Strap Bolts

• Keep the tank supported with the transmission jack or low-profile floor jack.
• Use a 13mm socket or 15mm socket with a 3/8-inch ratchet to remove the fuel tank strap bolts.
• Lower the straps out of the way.
• During installation, tighten the fuel tank strap bolts to Torque to 40 Nm (30 ft-lbs).

Step 9: Lower the Fuel Tank

• Slowly lower the tank with the transmission jack or low-profile floor jack.
• Pause every few inches and check for hoses, wiring, or lines still attached.
• Use a flat-blade screwdriver to release any remaining clips carefully.
• Lower the tank enough to access the top fuel pump module.

Step 10: Clean Around the Fuel Pump Module

• Use shop towels to clean dirt from the top of the tank around the fuel pump.
• Do not let dirt fall into the tank.
• Cleanliness protects the new pump.

Step 11: Remove the Fuel Pump Lock Ring

• Place the fuel pump lock ring tool on the lock ring.
• Use a 3/8-inch ratchet to turn the lock ring counterclockwise.
• Remove the lock ring and set it aside if reusing, though replacement is preferred.
• Lift the fuel pump module slightly by hand.

Step 12: Remove the Old Fuel Pump Module

• Carefully angle the fuel pump module out of the tank by hand.
• Watch the fuel level float arm. This thin arm reads fuel level and can bend easily.
• Remove the old tank seal by hand.
• Use shop towels to catch fuel drips.

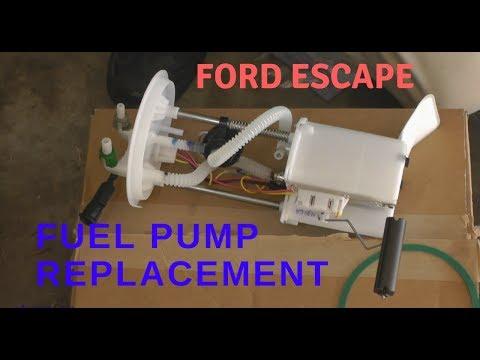

Step 13: Install the New Fuel Pump Module

• Install the new fuel pump tank seal into the tank opening by hand.
• Lower the new fuel pump module assembly into the tank carefully.
• Align the pump tabs with the tank marks.
• Install the new fuel pump lock ring.
• Use the fuel pump lock ring tool and 3/8-inch ratchet to turn the ring clockwise until fully seated.
• Do not hammer the ring with metal tools because sparks are dangerous.

Step 14: Raise and Reconnect the Fuel Tank

• Use the transmission jack or low-profile floor jack to raise the tank slowly.
• Reconnect the fuel pump electrical connector by hand until it clicks.
• Reconnect fuel lines by hand until each connector clicks.
• Gently tug each fuel line by hand to confirm it is locked.
• Reconnect vent hoses and filler hose by hand.
• Use an 8mm socket or flat-blade screwdriver to tighten the filler hose clamp snugly.

Step 15: Reinstall the Fuel Tank Straps

• Position the fuel tank straps by hand.
• Start the strap bolts by hand to avoid cross-threading.
• Use a 13mm socket or 15mm socket with a torque wrench rated 10-100 Nm.
• Tighten the fuel tank strap bolts to Torque to 40 Nm (30 ft-lbs).

Step 16: Reinstall Underbody Shields

• Position the shields by hand.
• Use an 8mm socket or 10mm socket with a 3/8-inch ratchet to reinstall the fasteners.
• Use a plastic trim tool to press push clips back into place.
• Tighten small shield fasteners snugly. Do not overtighten plastic parts.

Step 17: Reconnect Battery and Prime the Fuel System

• Reinstall the fuel pump fuse or relay by hand.
• Use a 10mm socket and 3/8-inch ratchet to reconnect the negative battery cable.
• Turn the ignition to ON without starting the engine for 5 seconds.
• Turn the ignition OFF for 10 seconds.
• Repeat this ON/OFF cycle 3 times to prime the system.

Step 18: Check for Leaks

• Put on safety glasses and fuel-resistant gloves.
• Use a flashlight only if it is fuel-safe; otherwise inspect in good daylight.
• Look and smell around the fuel tank, fuel lines, and filler hose area.
• If you see or smell fuel, turn the ignition OFF immediately and fix the leak before starting.

---

✅ After Repair

• ✅ Start the engine and let it idle for 2-3 minutes.
• 👂 Listen for smooth idle and normal pump operation.
• ⛽ Add fresh gasoline if the tank is very low.
• 🔍 Recheck underneath for leaks after the engine has run.
• 🚗 Take a short test drive, then inspect for leaks one more time.
• ⚠️ If the engine cranks but will not start, recheck the fuel pump fuse, relay, wiring connector, and fuel line connections.

---

💰 DIY vs Shop Cost

Shop Cost: $850-$1,400 (parts + labor)

DIY Cost: $250-$550 (parts only)

You Save: $600-$850 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-4 hours.

---
