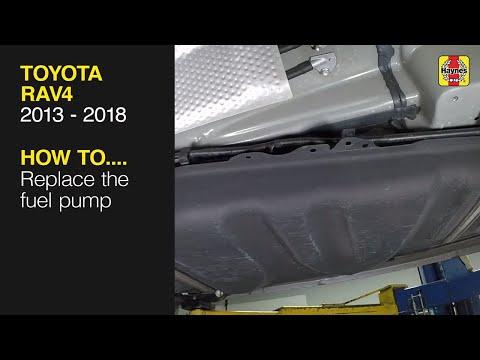

🔧 Fuel Pump - Replacement

The fuel pump on your RAV4 is inside the fuel tank, so the job is mostly about safely accessing the pump module, swapping the assembly, and sealing everything back up without leaks. This repair involves gasoline vapors, so take your time and keep sparks, flames, and static electricity away from the work area.

Difficulty Level: Intermediate | Estimated Time: 3-5 hours

---

⚠️ Safety & Precautions

• Work outside or in a very well-ventilated area. Gasoline vapors are flammable.
• Do not smoke, weld, grind, or use heat near the vehicle.
• Disconnect the negative battery cable before opening the fuel system.
• Relieve fuel pressure before disconnecting any fuel lines.
• Keep a fire extinguisher rated for fuel fires nearby.
• Use jack stands if you raise the vehicle. Never rely on a jack alone.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• Ratchet
• Extension bar
• Flathead screwdriver
• Fuel line disconnect tool
• Needle-nose pliers
• Trim panel tool
• Torque wrench
• Shop towels
• Drain pan
• Safety glasses
• Nitrile gloves
• Jack stands
• Floor jack (rated 3-ton minimum)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Fuel pump module assembly - Qty: 1
• Fuel pump strainer - Qty: 1
• Fuel pump seal / tank gasket - Qty: 1
• Fuel pump lock ring - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Run the fuel level as low as safely possible before starting. A full tank makes this job much harder.
• Disconnect the negative battery terminal before servicing the fuel system.
• Relieve fuel pressure by removing the fuel pump fuse or relay, then starting the engine and letting it stall. Crank a few more seconds after it stalls.
• Wait several minutes after pressure is relieved before opening the tank access area.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect power and relieve fuel pressure

• Use a 10mm socket to disconnect the negative battery cable.
• Remove the fuel pump fuse or relay from the under-hood fuse box.
• Start the engine and let it run until it stalls. Crank for 5 more seconds to reduce pressure.
• Keep a fire extinguisher close.

Step 2: Access the fuel pump service opening

• Open the rear cargo area and remove the rear floor panel and storage pieces using a trim panel tool.
• Locate the fuel pump access cover under the cargo floor.
• Remove the access cover fasteners with a 10mm socket or flathead screwdriver, depending on fastener type.
• Lift the cover carefully and set it aside.

Step 3: Disconnect the fuel pump electrical connector and lines

• Use a flathead screwdriver or your fingers to release the electrical connector lock, then unplug the connector.
• Use a fuel line disconnect tool to disconnect the fuel supply line.
• Wrap the fitting with shop towels first to catch any fuel drips.
• Mark hose routing before removal.

Step 4: Remove the fuel pump lock ring

• Clean the top of the module and surrounding area with shop towels so dirt cannot fall into the tank.
• Use a brass punch and hammer if needed, or the correct lock-ring tool if available, to rotate the lock ring counterclockwise.
• Lift the lock ring off once it is free.
• Carefully raise the fuel pump module straight up out of the tank.

Step 5: Install the new seal and fuel pump module

• Remove the old seal from the tank opening.
• Install the new fuel pump seal / tank gasket in the correct groove.
• Transfer any needed parts from the old module only if the replacement part does not include them.
• Lower the new fuel pump module into the tank in the same orientation as the old one.
• Install the lock ring and tighten it evenly. Torque to 47 Nm (35 ft-lbs).
• Do not pinch the seal.

Step 6: Reconnect lines, wiring, and covers

• Reconnect the fuel line until it clicks fully into place.
• Reconnect the electrical connector and make sure the lock is engaged.
• Reinstall the access cover and tighten fasteners with a 10mm socket. Tighten snugly; do not over-tighten small trim fasteners.
• Reinstall the cargo floor and trim pieces with the trim panel tool.

Step 7: Restore power and prime the system

• Reinstall the fuel pump fuse or relay.
• Reconnect the negative battery cable with a 10mm socket.
• Turn the ignition to ON for 5 seconds, then OFF. Repeat 2-3 times to prime the fuel system.
• Start the engine and let it idle.

Step 8: Check for leaks and verify operation

• Inspect the service cover area and fuel line connections for any fuel smell or wet spots.
• If the engine starts hard, cycle the key ON/OFF once more and try again.
• Recheck for leaks after a short road test.

---

✅ After Repair

• Confirm the engine starts cleanly and idles normally.
• Check for fuel leaks at the service cover and under the vehicle.
• If a check engine light was on before repair, clear codes with a scan tool and confirm they do not return.
• After the first drive, inspect again for fuel odor or seepage.

---

💰 DIY vs Shop Cost

Shop Cost: $700-$1,400 (parts + labor)

DIY Cost: $180-$450 (parts only)

You Save: $520-$950 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-5 hours.

---
