🔧 Escape - Fuel Pump Replacement

The fuel pump on your Escape is part of an in-tank fuel pump module, so replacement means safely dropping the fuel tank, removing the pump module, and installing the new sealed module. This is done when the pump fails (no-start, low fuel pressure) or the module is leaking/contaminated.

Assumption: Most Escapes require lowering the fuel tank (no top access panel).

Difficulty Level: Advanced | Estimated Time: 3-5 hours

---

⚠️ Safety & Precautions

• 🧯 Work outdoors or in a very well-ventilated area; fuel vapors are flammable.
• 🔥 No smoking, sparks, hot lights, or grinding anywhere nearby.
• 🧤 Wear safety glasses and fuel-resistant gloves; gas can irritate skin/eyes.
• 🔋 Disconnect the negative battery cable to reduce spark risk.
• ⛽ Relieve fuel pressure before disconnecting fuel lines to prevent spray.
• 🧰 Support the fuel tank with a transmission jack (or a wide board on a floor jack); never let it hang by hoses/wires.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Wheel chocks
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Transmission jack (specialty)
• Socket set (8mm-15mm)
• Ratchet
• Torque wrench (10-200 Nm range)
• Flathead screwdriver
• Pry tool set
• Fuel line disconnect tool set (specialty)
• Brass punch (specialty)
• Small hammer
• Trim clip remover
• Drain pan (at least 10 liters)
• Shop towels
• Work light (LED)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Fuel pump module assembly - Qty: 1
• Fuel pump module tank seal O-ring - Qty: 1
• Fuel line retaining clips - Qty: 1 set

---

📋 Before You Begin

• 🅿️ Park on level ground, set the parking brake, and chock the rear wheels.
• ⛽ Drive until the tank is as low as possible; a lighter tank is much safer to lower.
• 🔋 Use a socket/ratchet to disconnect the negative battery cable and isolate it so it can’t spring back.
• 🧽 Clean dirt off the tank area and fuel line connections; keeping debris out is critical.
• 🧰 Have a fire extinguisher nearby and keep doors open for ventilation.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Relieve fuel system pressure

• Remove the fuel filler cap by hand to release tank vapor pressure.
• Open the under-hood fuse box and pull the fuel pump fuse/relay using a fuse puller or needle-nose pliers (use the diagram on the fuse box cover).
• Start the engine and let it run until it stalls; crank for 3-5 seconds more to remove remaining pressure.

Step 2: Raise and support the Escape

• Use a floor jack (rated 3-ton minimum) at the proper jacking point to lift the rear.
• Set the vehicle down on jack stands (rated 3-ton minimum) placed at solid lift/support points.
• Shake-test the vehicle before crawling under.

Step 3: Support the fuel tank

• Position a transmission jack (specialty) under the center of the fuel tank.
• If needed, place a flat wood board on the jack saddle to spread the load.

Step 4: Disconnect the EVAP and electrical connections

• Locate the fuel pump module electrical connector near the tank and unplug it by hand; use a flathead screwdriver gently if a tab is stuck.
• Disconnect EVAP/vapor lines from the tank using a trim clip remover or pry tool set as needed for retainers.
• Take a photo before disconnecting lines.

Step 5: Disconnect the fuel supply line

• Place a drain pan (at least 10 liters) under the fuel line connection.
• Use a fuel line disconnect tool set (specialty) to release the quick-connect fitting (this tool slides into the connector to release the internal spring).
• Catch any fuel drips with shop towels.

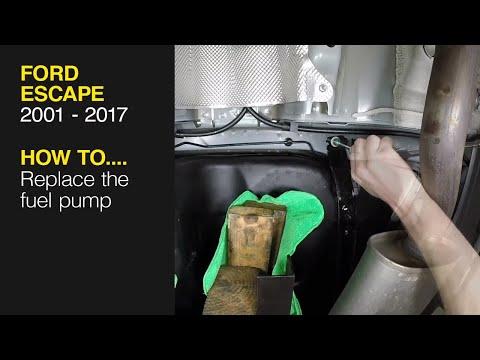

Step 6: Remove tank shield/straps and lower the tank

• Remove any tank shield/cover fasteners using the appropriate socket set (8mm-15mm) and ratchet.
• Remove the fuel tank strap bolts using a socket set (8mm-15mm) and ratchet, while keeping the tank supported on the transmission jack (specialty).
• Slowly lower the tank a few inches and check for any remaining hoses/wires; disconnect as needed with a flathead screwdriver or by hand.

Step 7: Clean the pump module area

• With the tank lowered enough to access the top, brush/wipe dirt away using shop towels.
• Do not blow debris into the tank opening.

Step 8: Remove the fuel pump lock ring

• The lock ring is the large retaining ring that twists to hold the pump module into the tank.
• Use a brass punch (specialty) and small hammer to tap the lock ring counterclockwise until it unlocks.
• Lift the lock ring off and set it aside.

Step 9: Remove the fuel pump module

• Carefully lift the module straight up; angle it as needed to clear the float arm (fuel level sender).
• Let fuel drain back into the tank, then move the module into the drain pan (at least 10 liters).
• Remove and discard the old tank seal O-ring.

Step 10: Install the new seal and fuel pump module

• Install the new fuel pump module tank seal O-ring onto the tank opening (make sure it sits flat and is not twisted).
• Lower the new module into the tank carefully, guiding the float arm so it doesn’t bend.
• Align the module index marks/tabs with the tank marks by hand.

Step 11: Reinstall and tighten the lock ring

• Reinstall the lock ring and tap it clockwise with the brass punch (specialty) and small hammer until fully seated/locked.
• Stop if the ring feels cross-bound; realign.

Step 12: Raise the tank and reconnect lines

• Use the transmission jack (specialty) to raise the tank back into position.
• Reconnect the fuel line until it clicks; install new fuel line retaining clips if equipped.
• Reconnect EVAP/vapor lines by hand and confirm each connector is locked.
• Reconnect the pump electrical connector by hand until it clicks.

Step 13: Reinstall tank straps/shields

• Install the tank straps and bolts using a socket set (8mm-15mm) and ratchet.
• Tighten strap bolts using a torque wrench (10-200 Nm range) to Torque to 35 Nm (26 ft-lbs).
• Reinstall any shields/covers using a socket set (8mm-15mm) and ratchet.

Step 14: Restore power and prime the fuel system

• Reinstall the fuel pump fuse/relay by hand.
• Reconnect the negative battery cable using a socket set (8mm-15mm) and ratchet.
• Turn the key to ON (do not start) for 5 seconds, then OFF for 10 seconds; repeat 3 times to prime.

---

✅ After Repair

• 🧪 Start the engine and let it idle 1-2 minutes while you inspect under the Escape for leaks.
• 🔍 Check for fuel smell around the tank area; if present, shut off and recheck lock ring/line connections.
• 🛠️ If a check engine light appears, a loose EVAP connector is common; recheck every vapor line click/lock.
• 🚗 Test drive 10-15 minutes, then inspect once more for seepage.

---

💰 DIY vs Shop Cost

Shop Cost: $900-$1,600 (parts + labor)

DIY Cost: $250-$650 (parts only)

You Save: $650-$950 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-5 hours.

---
