🔧 Civic - Fuel Pump Replacement

On your Civic, the fuel pump is inside the fuel tank as part of an in-tank “fuel pump module” accessed from under the rear seat. You’ll relieve fuel pressure, open the access cover, disconnect the fuel lines/wiring, then swap the module and seal so it doesn’t leak or smell like fuel.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Work outside or in a very well-ventilated area; gasoline fumes are flammable.
• ⚠️ No smoking, flames, heaters, or incandescent work lights near the car.
• ⚠️ Disconnect the negative battery cable before opening the fuel system.
• ⚠️ Relieve fuel pressure before disconnecting any fuel line to avoid spray.
• ⚠️ Keep a class B fire extinguisher nearby and clean spills immediately.
• ⚠️ Do not reuse a flattened/old pump seal (O-ring); it can cause leaks and hard starts.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Fire extinguisher class B
• Trim clip removal tool
• Phillips screwdriver #2
• Flat-blade screwdriver (small)
• 10mm socket
• 1/4" drive ratchet
• 3" extension (1/4")
• Torque wrench (inch-pound capable)
• Torque wrench (ft-lb capable)
• Needle-nose pliers
• Pick tool set (small)
• Brass punch (specialty)
• Small hammer
• Shop towels
• Catch pan (small)
• Vacuum (shop vac)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Fuel pump module assembly - Qty: 1
• Fuel pump module seal (tank O-ring/gasket) - Qty: 1
• Fuel pump strainer (sock filter) - Qty: 1 (if not included with module)
• Fuel line O-rings - Qty: 1 set (recommended if lines are disturbed)

---

📋 Before You Begin

• Park on level ground, set the parking brake, and open the driver window (so you can get in if the car locks).
• Remove the fuel filler cap to reduce tank vapor pressure.
• Vacuum the rear seat area first so dirt can’t fall into the tank.
• Plan to work with a lower fuel level (about 1/4 tank or less) to reduce spill risk.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Relieve fuel pressure

• Fold the rear seat bottom up or remove it (use a trim clip removal tool and/or 10mm socket as needed).
• Locate the fuel pump electrical connector at the access area (under the rear seat) and unplug it.
• Start the engine and let it run until it stalls. Crank for 2–3 seconds once more to bleed off remaining pressure.
• Turn the key OFF.
• Tip: This prevents fuel spraying when lines open.

Step 2: Disconnect the battery

• Use a 10mm socket to disconnect the negative battery cable and move it aside so it can’t spring back.

Step 3: Open the fuel pump access cover

• Remove the rear seat bottom fully if needed (use trim clip removal tool and 10mm socket).
• Remove the access cover fasteners (use a Phillips screwdriver #2).
• Lift the cover and set it aside, then vacuum (shop vac) all loose dirt around the pump top.

Step 4: Disconnect the fuel lines and wiring

• Place shop towels and a catch pan (small) under the line area to catch drips.
• Disconnect the fuel line quick-connect fitting:
  • Use a pick tool set (small) or flat-blade screwdriver (small) to help release the connector tab (don’t break it).
  • Pull the line straight off while holding the fitting steady.
• Unplug any remaining electrical connectors on the module.

Step 5: Remove the pump module retaining ring (lock ring)

• A “lock ring” is the large ring that twists to clamp the pump module to the tank.
• Mark the ring position with a flat-blade screwdriver (small) (light scratch mark) so you can align it on install.
• Use a brass punch (specialty) and small hammer to tap the lock ring counterclockwise until it releases.
• Lift the lock ring off and set it aside.

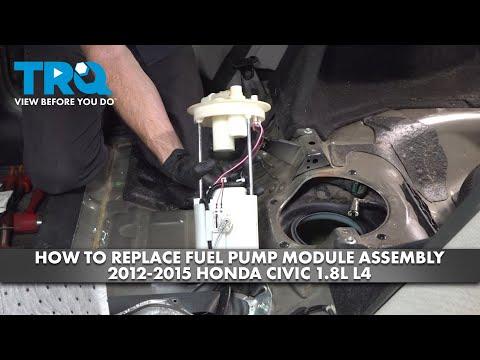

Step 6: Remove the fuel pump module

• Carefully lift the module straight up, angling as needed to clear the fuel level float.
• Let fuel drain into the tank for a moment, then set the module into a catch pan (small).
• Remove the old tank seal/O-ring from the tank opening (use a pick tool set (small) gently).

Step 7: Install the new seal and pump module

• Install the new tank seal/O-ring into the groove on the tank opening (make sure it sits flat and isn’t twisted).
• Lower the new pump module into the tank, guiding the float carefully so it doesn’t bend.
• Align the module marks with the tank marks.

Step 8: Reinstall and tighten the lock ring

• Install the lock ring and start it by hand to avoid cross-binding.
• Tap the lock ring clockwise using the brass punch (specialty) and small hammer until fully seated at the alignment mark.
• If you are using a lock-ring tightening tool and torque wrench, tighten to: Torque to 70 Nm (52 ft-lbs).
• Tip: Brass reduces spark risk versus steel.

Step 9: Reconnect fuel line(s) and wiring

• Reconnect the fuel line until it clicks, then gently tug to confirm it’s locked (use shop towels to wipe any fuel).
• Reconnect all electrical connectors.

Step 10: Reinstall the access cover and rear seat

• Reinstall the access cover (use a Phillips screwdriver #2).
• Reinstall the rear seat bottom (use 10mm socket if bolts are used).

Step 11: Reconnect the battery and prime the fuel system

• Reconnect the negative battery cable (use a 10mm socket).
• Turn the key to ON (do not start) for 2 seconds, then OFF. Repeat 3 times to prime the system.
• Start the engine.

---

✅ After Repair

• With the engine running, check carefully for leaks at the fuel line connection and around the pump seal.
• If the engine cranks a long time before starting, cycle the key ON/OFF a few more times to finish priming.
• Clear any fuel smell by airing out the cabin; recheck the seal area if odor persists.

---

💰 DIY vs Shop Cost

Shop Cost: $600-$1,100 (parts + labor)

DIY Cost: $180-$450 (parts only)

You Save: $420-$650 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
