🔧 F-150 - Fuel Pump Replacement

The fuel pump on your F-150 is inside the fuel tank, so this job usually means lowering the tank and replacing the pump module. You’ll need to relieve fuel pressure first, then disconnect the tank, swap the module, and reinstall everything carefully to avoid leaks.

Difficulty Level: Advanced | Estimated Time: 4-6 hours

---

⚠️ Safety & Precautions

• Work outside or in a very well-ventilated area. Fuel vapors are flammable.
• No smoking, sparks, hot lights, or open flames near the vehicle.
• Relieve fuel pressure before opening any fuel lines.
• Disconnect the negative battery cable before starting.
• Use a proper transmission jack or fuel tank jack. A full tank is very heavy.
• Support the tank before removing straps.
• Wear safety glasses and fuel-resistant gloves.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Fuel-resistant gloves
• Wheel chocks
• Floor jack (rated 3-ton minimum)
• Jack stands
• Transmission jack or fuel tank jack
• 1/4-inch ratchet
• 3/8-inch ratchet
• 8mm socket
• 10mm socket
• 13mm socket
• 15mm socket
• Fuel line disconnect tool
• Flat-blade screwdriver
• Pick set
• Torque wrench
• Drain pan
• Shop towels

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Fuel pump module - Qty: 1
• Fuel pump module seal/O-ring - Qty: 1
• Fuel tank strap bolts - Qty: 2
• Fuel filter - Qty: 1
• Fuel line retainer clips - Qty: 1 set

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Disconnect the negative battery cable.
• Relieve fuel pressure from the system before disconnecting lines.
• If the tank is more than half full, drain fuel first to reduce weight.
• Raise the rear of the truck and support it securely with jack stands.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Relieve fuel pressure

• Remove the fuel pump fuse or relay from the underhood fuse box.
• Start the engine and let it run until it stalls.
• Crank for a few more seconds to release remaining pressure.
• Turn the key off and reinstall the fuse or relay after pressure is gone.

Step 2: Disconnect the battery

• Use a 10mm socket to disconnect the negative battery cable.
• Isolate the cable so it cannot spring back and touch the terminal.

Step 3: Raise and support the truck

• Use a floor jack to lift the rear of the truck.
• Place jack stands under the frame and lower the truck onto them.
• Make sure the truck is stable before getting underneath it.

Step 4: Support the fuel tank

• Position a transmission jack or fuel tank jack under the tank.
• Raise it slightly so the tank is supported before removing straps.
• Keep the tank level.

Step 5: Disconnect tank connections

• Use a fuel line disconnect tool to disconnect the fuel supply and EVAP lines.
• Disconnect the electrical connector at the tank using your hands or a flat-blade screwdriver if needed.
• Label hoses if needed so they go back in the same place.

Step 6: Remove the fuel tank straps

• Use a 15mm socket and 3/8-inch ratchet to remove the tank strap bolts.
• Lower the straps carefully while keeping the tank supported.
• Lower the tank just enough to reach the top of the pump module.

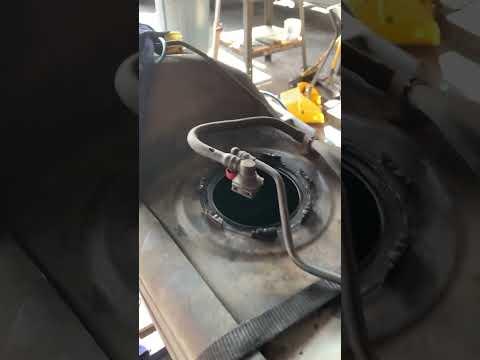

Step 7: Remove the fuel pump module

• Clean dirt from the top of the tank before opening it.
• Disconnect the pump module electrical connector and fuel lines if still attached.
• Use a pick set and flat-blade screwdriver to release the lock ring if equipped.
• Lift the old module out carefully and remove the old seal.
• Do not bend the float arm.

Step 8: Install the new fuel pump module

• Install the new fuel pump module seal/O-ring in the tank opening.
• Lower the new module into place, making sure the float arm enters cleanly.
• Lock the module in place with the retaining ring.
• Reconnect the electrical connector and fuel lines.

Step 9: Reinstall the fuel tank

• Raise the tank back into position with the transmission jack.
• Reinstall the straps using the 15mm socket.
• Torque the tank strap bolts to 40 Nm (30 ft-lbs).
• Reconnect the EVAP lines, fuel lines, and electrical connector.

Step 10: Reconnect battery and prime the system

• Reconnect the negative battery cable using a 10mm socket.
• Turn the key to ON for 5 seconds, then OFF.
• Repeat this 3-4 times to prime the fuel system.
• Start the engine and check for leaks at all connections.

---

✅ After Repair

• Verify the engine starts normally and idles smoothly.
• Inspect the tank, fuel lines, and top module seal for leaks.
• Road test the truck and confirm there is no hesitation or stalling.
• If the Check Engine Light is on, scan and clear codes after confirming the repair.

---

💰 DIY vs Shop Cost

Shop Cost: $900-$1,600 (parts + labor)

DIY Cost: $250-$650 (parts only)

You Save: $650-$950 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 4-6 hours.

---
