🔧 Civic - Fuel Pump Replacement

On your Civic, the fuel pump sits inside the fuel tank as part of a pump module under the rear seat. You’ll remove the rear seat cushion, open the access panel, swap the pump/module, then prime the fuel system and check carefully for leaks.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Work outside or in a well-ventilated area—fuel vapors are highly flammable.
• ⚠️ No smoking, no sparks, no hot work lights; keep a Class B fire extinguisher nearby.
• ⚠️ Disconnect the negative battery terminal before opening the tank.
• ⚠️ Relieve fuel pressure before disconnecting the fuel line to reduce spray.
• ⚠️ Clean dirt around the pump opening—debris in the tank can damage the new pump.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" drive ratchet
• 3" socket extension
• Phillips #2 screwdriver
• Flat-blade screwdriver
• Trim removal tool
• Needle-nose pliers
• Fuel line disconnect pick set
• Fuel-safe drain pan
• Shop towels
• Non-marring brass punch
• Small hammer
• Torque wrench (inch-pound)
• Nitrile gloves
• Safety glasses
• Class B fire extinguisher

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Fuel pump module assembly - Qty: 1
• Fuel pump tank seal / O-ring gasket - Qty: 1
• Fuel pump strainer (sock filter) - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and open the windows for ventilation.
• Try to work with a low fuel level (around 1/4 tank) to reduce slosh and fumes.
• Relieve fuel pressure: remove the fuel pump fuse/relay, then start the engine and let it run until it stalls; crank for 2–3 seconds once more.
• Disconnect the battery: use a 10mm socket to remove the negative cable and isolate it so it can’t spring back.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the rear seat bottom cushion

• Use your hands to pull up sharply at the front edge of the rear seat cushion to release the clips.
• If your Civic has seat cushion bolts, remove them using a 10mm socket and ratchet.
• Lift the cushion out and set it aside.

Step 2: Open the fuel pump access panel

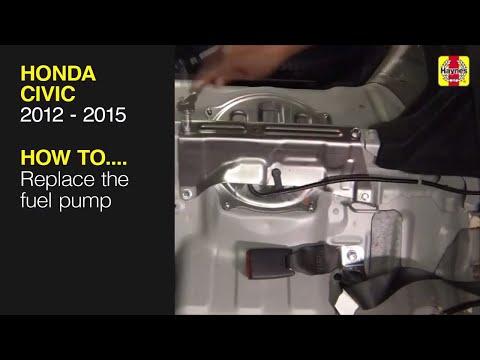

• Find the metal access cover in the floor under the seat area.
• Remove the cover screws using a Phillips #2 screwdriver.
• Peel back any butyl sealer carefully using a trim removal tool.

Step 3: Clean the area thoroughly

• Use shop towels to wipe dust/dirt away from the top of the pump module and the surrounding metal.
• Clean first so dirt can’t fall in.

Step 4: Disconnect the electrical connector

• Press the tab and unplug the connector by hand; use a trim removal tool gently if the tab is stubborn.

Step 5: Disconnect the fuel line

• Place a fuel-safe drain pan and shop towels under the connection.
• Release the quick-connector (usually squeeze tabs) and pull the line off.
• If it won’t release, use a fuel line disconnect pick set to help lift the lock tabs without breaking them.

Step 6: Remove the pump lock ring

• Mark the lock ring and tank with a reference line using a flat-blade screwdriver (light scratch mark) so you can line it up during install.
• Tap the lock ring counterclockwise using a non-marring brass punch and small hammer.
• Brass helps reduce spark risk.

Step 7: Remove the fuel pump module

• Lift the module straight up slowly; angle it as needed to clear the float arm (fuel level sender).
• Let fuel drain from the module into the tank, then move it to the fuel-safe drain pan.
• Remove the old tank seal/O-ring from the tank opening.

Step 8: Install the new seal and pump/module

• Install the new tank seal / O-ring gasket into the groove on the tank opening.
• Carefully lower the new pump/module in, keeping the float arm from bending.
• Align the module’s positioning marks/tabs with the tank marks.

Step 9: Reinstall and tighten the lock ring

• Install the lock ring and turn it clockwise by hand until seated.
• Finish tightening using the non-marring brass punch and small hammer until the alignment marks match.
• Torque to 93 Nm (69 ft-lbs) if using the correct lock-ring tool and a torque method. Verify spec for your exact ring style.

Step 10: Reconnect the fuel line and electrical connector

• Push the fuel line on until it clicks and locks; tug gently to confirm it’s secure.
• Plug in the electrical connector until it clicks.

Step 11: Reinstall the access cover and rear seat

• Reinstall the access cover screws using a Phillips #2 screwdriver.
• Reinstall the rear seat cushion and press down firmly to re-engage the clips.
• If bolts were removed, reinstall using a 10mm socket and ratchet and torque to 12 Nm (9 ft-lbs).

---

✅ After Repair

• Reconnect the battery negative cable using a 10mm socket.
• Prime the system: turn the key to ON (not start) for 5 seconds, then OFF; repeat 3 times.
• Start the engine and let it idle; inspect the pump top and fuel line connection for any wetness or fuel smell.
• If the check engine light appears, have codes scanned—low fuel pressure codes can set if priming was skipped.

---

💰 DIY vs Shop Cost

Shop Cost: $600-$1,100 (parts + labor)

DIY Cost: $180-$450 (parts only)

You Save: $420-$650 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
