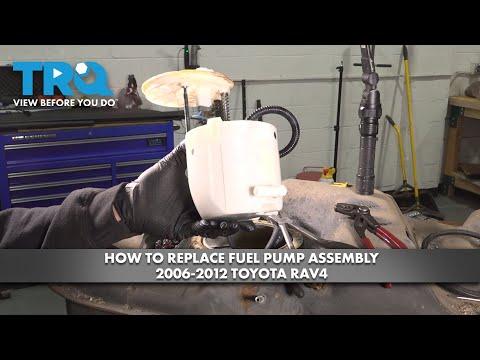

🔧 RAV4 - Fuel Pump Replacement

The fuel pump on your RAV4 is inside the fuel tank as part of an in-tank pump/module. The job is usually done through an access panel under the rear seat, so you typically don’t need to drop the fuel tank.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• 🧯 Work outdoors or in a very well-ventilated area—fuel vapors are highly flammable.
• 🔥 No smoking, flames, heat guns, or incandescent drop lights near the vehicle.
• 🧤 Wear safety glasses and fuel-resistant gloves; gasoline can irritate skin and eyes.
• 🔋 Disconnect the negative battery cable to prevent accidental sparks.
• ⛔ Relieve fuel pressure before disconnecting any fuel line to avoid a fuel spray.
• 🧼 Clean dirt around the pump opening—dirt in the tank can damage the new pump.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Fire extinguisher (Class B)
• 10mm socket
• 12mm socket
• 3/8" ratchet
• 3" extension
• Trim panel tool
• Phillips screwdriver #2
• Needle-nose pliers
• Fuel line disconnect tool set (specialty)
• Shop rags
• Small catch pan
• Torque wrench (in-lb range)
• Torque wrench (ft-lb range)
• Brass punch (specialty)
• Small hammer
• Hand vacuum

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• In-tank fuel pump module assembly - Qty: 1
• Fuel pump seal / tank O-ring gasket - Qty: 1
• Fuel pump strainer (sock filter) - Qty: 1
• Fuel line retaining clips - Qty: 1 kit

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Lower the fuel level to under 1/4 tank if possible—less fuel means less mess and less vapor.
• Have a hand vacuum ready to remove dirt around the access cover before opening it.
• Plan to replace the seal/O-ring—reusing old seals is a common cause of fuel smell and leaks.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Relieve the fuel pressure

• Open the hood and remove the engine cover if equipped (pull upward by hand).
• Open the under-hood fuse/relay box and remove the fuel pump relay (use needle-nose pliers).
• Start the engine and let it run until it stalls, then crank for 3-5 seconds more.
• Turn the key OFF.
• This reduces fuel spray at the line.

Step 2: Disconnect the battery

• Use a 10mm socket to loosen the negative battery terminal clamp.
• Remove the negative cable and secure it so it can’t spring back to the battery.
• Torque to 5.4 Nm (48 in-lbs) when reinstalling the clamp.

Step 3: Remove the rear seat cushion to access the service panel

• From inside the cabin, remove the rear seat cushion fasteners (varies by setup).
• If your cushion has bolts: use a 12mm socket to remove them, then lift the cushion out.
• Torque to 37 Nm (27 ft-lbs) for rear seat cushion bolts on reinstall (if equipped).

Step 4: Remove the fuel pump access cover

• Vacuum dirt around the access area using a hand vacuum.
• Use a Phillips screwdriver #2 or 10mm socket (varies) to remove the access cover fasteners.
• Lift off the cover and set it aside.

Step 5: Disconnect electrical connector(s) and fuel line(s)

• Unplug the pump/module electrical connector(s) by releasing the tab (use a trim panel tool gently if stuck).
• Place shop rags around the fuel line connection and position a small catch pan underneath.
• Disconnect the fuel line:
  • If it’s a quick-connect: use a fuel line disconnect tool set (specialty) and pull the line straight off.
  • Save/replace any broken retaining clips (use needle-nose pliers).
• Pull straight—twisting can crack fittings.

Step 6: Remove the pump/module retaining ring (two common styles)

• Clean the top of the module and surrounding area using shop rags so no dirt falls into the tank.
• Style A (Lock ring):
  • Use a brass punch (specialty) and small hammer to tap the lock ring counterclockwise to unlock it.
  • Lift the lock ring off once it’s free.
  • Use brass to reduce spark risk.
• Style B (Small bolts/nuts):
  • Use a 10mm socket to remove the fasteners evenly in a crisscross pattern.
  • Set the fasteners aside.
  • Torque to 4.0 Nm (35 in-lbs) on reinstall (tighten evenly).

Step 7: Remove the fuel pump/module assembly

• Carefully lift the module straight up.
• Angle it as needed to clear the fuel level float arm (the float arm is the thin rod/lever for the fuel gauge).
• Let fuel drip into the tank, then move the module to the small catch pan.

Step 8: Replace the seal/O-ring and install the new pump/module

• Remove the old tank seal/O-ring from the opening (use a trim panel tool carefully).
• Install the new seal/O-ring in the tank groove. Make sure it sits flat and is not twisted.
• Lower the new module in, aligning the locating marks/tabs.
• Reinstall the lock ring or fasteners:
  • Lock ring: use brass punch (specialty) and small hammer to tap clockwise until fully seated and alignment marks line up.
  • Bolts/nuts: use a 10mm socket to snug in a crisscross pattern, then torque to 4.0 Nm (35 in-lbs).

Step 9: Reconnect fuel line(s) and electrical connector(s)

• Reconnect the fuel line until it clicks/locks.
• Gently tug the line to confirm it’s locked.
• Reconnect the electrical connector(s) until fully seated.

Step 10: Reinstall access cover and rear seat

• Reinstall the access cover using a Phillips screwdriver #2 or 10mm socket.
• Reinstall the rear seat cushion using a 12mm socket (if equipped bolts).
• Torque to 37 Nm (27 ft-lbs) for rear seat cushion bolts (if equipped).

Step 11: Prime the system and check for leaks

• Reconnect the negative battery cable using a 10mm socket and torque to 5.4 Nm (48 in-lbs).
• Reinstall the fuel pump relay using needle-nose pliers.
• Turn the key to ON (do not crank) for 5 seconds, then OFF. Repeat 3 times to prime.
• Start the engine and let it idle while you inspect the pump area for any fuel seepage or odor.

---

✅ After Repair

• Run the engine for 5-10 minutes and re-check for leaks around the fuel line and pump seal.
• Take a short test drive, then re-check again for any fuel smell inside the cabin.
• If you get a check-engine light, you may need a code scan (often from a loose connector or line).

---

💰 DIY vs Shop Cost

Shop Cost: $650-$1,200 (parts + labor)

DIY Cost: $200-$550 (parts only)

You Save: $450-$650 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
