🔧 Fuel Pump - Replacement

On your Sienna, the fuel pump is inside the fuel tank. If the factory access panel is present, the job is much easier; if not, the fuel tank must be lowered to service the pump module. Work slowly and keep the fuel system sealed to avoid spills and fire risk.

Difficulty Level: Advanced | Estimated Time: 4-7 hours

---

⚠️ Safety & Precautions

• Work outside or in a very well-ventilated area. Fuel vapors are flammable.
• Disconnect the negative battery cable before opening the fuel system.
• No smoking, sparks, shop lights with hot bulbs, or open flames.
• Keep a fire extinguisher rated for fuel fires nearby.
• Relieve fuel pressure before disconnecting any lines.
• If lowering the tank, support it fully with a transmission jack or floor jack and a wide wood block.
• Fuel is heavy. A nearly full tank is unsafe to remove. Run the tank low first.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 12mm socket
• 14mm socket
• Ratchet
• Long extension
• Flat blade trim tool
• Fuel line disconnect tool
• Torque wrench
• Needle-nose pliers
• Floor jack
• Jack stands
• Wood block
• Drain pan
• Shop towels
• Safety glasses
• Nitrile gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Fuel pump module - Qty: 1
• Fuel pump module seal - Qty: 1
• Fuel filter sock - Qty: 1
• Fuel pump strainer retaining parts - Qty: 1 set
• Fuel tank filler neck seal - Qty: 1
• Fuel line O-rings - Qty: 1 set
• Replacement hose clamps - Qty: 1 set
• Fuel pump access cover gasket or butyl seal - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Run the fuel level as low as possible before starting.
• Remove the fuel cap to help relieve tank pressure.
• Disconnect the negative battery cable with a 10mm socket.
• If your Sienna has the under-floor access panel, use that path first. If not, lower the fuel tank.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Relieve fuel pressure and disconnect power

• Use a 10mm socket to disconnect the negative battery cable.
• Remove the fuel pump relay or fuse from the under-hood fuse box if accessible.
• Crank the engine briefly to bleed off remaining fuel pressure, then turn the key off.

Step 2: Access the fuel pump

• Access panel path: Use a flat blade trim tool to lift the rear interior trim and carpeting over the service opening. Remove the cover screws with a 10mm socket.
• Tank removal path: Raise the rear of the vehicle with a floor jack and support it on jack stands. Remove the rear undercovers and fuel tank shield fasteners with a 10mm socket and 12mm socket.

Step 3: Disconnect fuel lines and wiring

• Use a fuel line disconnect tool to release the fuel supply line.
• Unplug the pump electrical connector by hand.
• If lowering the tank, disconnect the filler neck hose and vent hose with needle-nose pliers if clamps are installed.

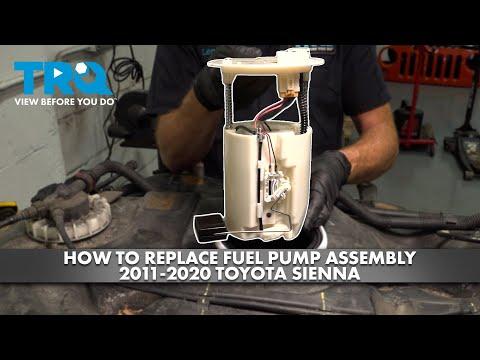

Step 4: Remove the fuel pump module

• Access panel path: Use a 12mm socket or the correct retaining-ring tool to remove the pump lock ring.
• Lift the module straight up carefully and angle the float arm out without bending it.
• Remove the old seal and clean the sealing surface with shop towels.
• Keep dirt out of the tank.

Step 5: Lower the fuel tank if required

• Support the tank with a floor jack and a wood block.
• Remove the tank strap bolts with a 14mm socket.
• Lower the tank slowly, then disconnect the top-side wiring and lines if not already removed.
• Remove the pump module from the top of the tank once it is on the ground.

Step 6: Install the new fuel pump module

• Transfer any required parts from the old unit only if the new module does not include them.
• Install the new seal in the correct groove. Do not twist it.
• Lower the new module into place with the float arm positioned correctly.
• Install the lock ring and tighten it evenly. Torque to 40 Nm (30 ft-lbs).

Step 7: Reinstall the tank or access cover

• If the tank was lowered, raise it with the floor jack and reinstall the straps.
• Tighten the tank strap bolts. Torque to 35 Nm (26 ft-lbs).
• Reconnect the filler neck, vent hose, fuel line, and electrical connector.
• Install the access cover and interior trim if you used the service opening.

Step 8: Restore power and prime the system

• Reconnect the negative battery cable with a 10mm socket. Torque to 5 Nm (44 in-lbs).
• Reinstall the fuel pump fuse or relay.
• Turn the key to ON for 5 seconds, then OFF. Repeat 3 times to prime the system.

Step 9: Check for leaks and start the engine

• Inspect the top of the tank, fuel line connections, and access cover for leaks.
• Start the engine and let it idle.
• Recheck all fuel connections after the engine runs.

---

✅ After Repair

• Verify smooth idle, normal starting, and no fuel smell.
• Check the fuel gauge operation after a short drive.
• If the check engine light is on, scan for fuel system codes and clear them after the repair is confirmed.
• Top off the tank only after the leak check is complete.

---

💰 DIY vs Shop Cost

Shop Cost: $900-$1,600 (parts + labor)

DIY Cost: $250-$650 (parts only)

You Save: $650-$950 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 4-7 hours.

---
