🔧 Suburban - Fuel Pump Replacement

On your Suburban, the fuel pump is part of an in-tank fuel pump module. Replacement requires safely relieving fuel pressure, lowering the fuel tank, swapping the module and seal, then priming the system and checking for leaks.

Difficulty Level: Advanced | Estimated Time: 3-5 hours

---

⚠️ Safety & Precautions

• Work outside or in a very well-ventilated area—fuel vapors are highly flammable.
• No smoking, sparks, shop lights with hot bulbs, or grinding near the truck.
• Let the exhaust cool completely before starting.
• Disconnect the battery negative cable before disconnecting fuel lines.
• Support the tank with a jack before removing tank straps—fuel is heavy.
• Have a Class B fire extinguisher nearby and keep rags ready for spills.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Socket set (8mm-21mm)
• Ratchet (3/8" drive)
• Extensions (3" and 6")
• Wrench set (8mm-21mm)
• Torque wrench (10-100 ft-lbs range)
• Fuel line quick-disconnect tool set (3/8" and 5/16") (specialty)
• Flat-head screwdriver
• Pliers
• Brass punch (specialty)
• Dead-blow hammer
• Drain pan
• Shop rags
• Safety glasses
• Nitrile gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Fuel pump module assembly - Qty: 1
• Fuel pump module tank seal (O-ring) - Qty: 1
• Fuel tank strap bolts (optional, if rusted) - Qty: 2

---

📋 Before You Begin

• Park on level ground, set the parking brake, and use wheel chocks at the front wheels.
• Try to run the tank down to 1/4 or less—this makes the tank much lighter.
• Relieve fuel pressure before opening any fuel line.
• Plan where you’ll set the tank down (clear, flat area).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Relieve fuel system pressure

• Open the hood and remove the fuel cap to release tank vapor pressure.
• Remove the fuel pump fuse/relay from the underhood fuse box using your fingers or pliers.
• Start the engine and let it run until it stalls.
• Turn the key OFF.
• Crank 2 seconds to clear remaining pressure.

Step 2: Disconnect the battery

• Use a 10mm socket and ratchet to remove the negative battery cable and move it aside.

Step 3: Raise and support the rear safely

• Lift the rear using a floor jack (rated 3-ton minimum).
• Set the frame on jack stands (rated 3-ton minimum) and gently lower onto them.
• Shake the truck lightly to confirm it’s stable before going underneath.

Step 4: Support the fuel tank

• Place the floor jack (rated 3-ton minimum) under the tank with a flat piece of wood (use your own scrap) on the jack pad to spread the load.
• Raise the jack until it just supports the tank.

Step 5: Disconnect filler neck and vent connections

• At the filler neck area, loosen hose clamps using a flat-head screwdriver.
• Use pliers as needed to slide spring clamps back.
• Carefully twist and pull the hoses free.

Step 6: Disconnect fuel lines and electrical connector at the tank

• Slowly lower the tank a few inches using the floor jack (rated 3-ton minimum) so you can reach the top connections.
• Unplug the fuel pump electrical connector by hand (use a flat-head screwdriver gently if the lock tab is stubborn).
• Disconnect the fuel supply/return/vapor lines using the fuel line quick-disconnect tool set (3/8" and 5/16") (specialty).
• Quick-connect means a snap-on fitting with a retainer.
• Keep a drain pan and shop rags under the connections for spill control.

Step 7: Remove the tank straps and lower the tank

• Use a socket set (8mm-21mm), ratchet (3/8" drive), and extensions (3" and 6") to remove the fuel tank strap bolts.
• Lower the straps and slowly lower the tank with the floor jack (rated 3-ton minimum).
• When reinstalling the strap bolts: Torque to 40 Nm (30 ft-lbs).

Step 8: Clean the area around the fuel pump module

• Use shop rags to wipe dirt off the top of the tank around the module.
• This helps keep dirt from falling into the tank.

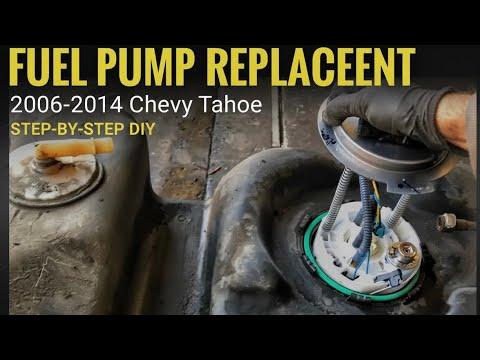

Step 9: Remove the lock ring and fuel pump module

• The lock ring is a metal ring that twists to clamp the module into the tank.
• Use a brass punch (specialty) and dead-blow hammer to tap the lock ring counterclockwise until it releases.
• Lift the module out slowly, angling it as needed to clear the float arm.
• Remove the old tank seal (O-ring) by hand.

Step 10: Install the new seal and new fuel pump module

• Install the new tank seal (O-ring) into the tank groove by hand.
• Carefully lower the new module into place, keeping the float arm from bending.
• Reinstall the lock ring and use the brass punch (specialty) and dead-blow hammer to tap it clockwise until it’s fully seated and aligned.

Step 11: Reinstall the fuel tank

• Raise the tank into position using the floor jack (rated 3-ton minimum).
• Reconnect the electrical connector by hand.
• Reconnect fuel lines using the correct size from the fuel line quick-disconnect tool set (3/8" and 5/16") (specialty) as needed, then tug lightly to confirm they’re locked.
• Reconnect filler and vent hoses using a flat-head screwdriver and pliers to secure clamps.
• Reinstall tank straps/bolts using a socket set (8mm-21mm), ratchet (3/8" drive), and torque wrench (10-100 ft-lbs range): Torque to 40 Nm (30 ft-lbs).

Step 12: Lower the truck and reconnect battery

• Raise slightly with the floor jack (rated 3-ton minimum), remove the jack stands (rated 3-ton minimum), then lower to the ground.
• Reconnect the negative battery cable using a 10mm socket and ratchet.
• Reinstall the fuel pump fuse/relay by hand.

---

✅ After Repair

• Prime the system: turn key ON for 2 seconds, OFF for 10 seconds; repeat 3-4 times (no cranking).
• Start the engine and let it idle while you inspect underneath for leaks.
• If you have a check engine light after the repair, scan for codes—loose EVAP lines can trigger EVAP leak codes.
• Recheck for seepage after a short test drive.

---

💰 DIY vs Shop Cost

Shop Cost: $900-$1,400 (parts + labor)

DIY Cost: $250-$450 (parts only)

You Save: $650-$950 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-5 hours.

---
