🔧 Fuel Pump - Replacement

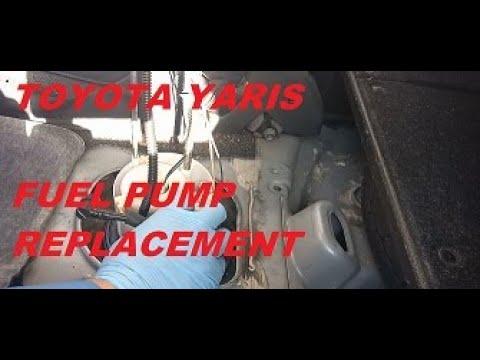

The fuel pump on your Yaris is inside the fuel tank. This job usually means relieving fuel pressure, accessing the pump module, then swapping the pump assembly and sealing it back up carefully so it does not leak fuel or vapor.

Difficulty Level: Advanced | Estimated Time: 3-5 hours

---

⚠️ Safety & Precautions

• Work in a well-ventilated area away from sparks, open flames, and cigarettes.
• Relieve fuel pressure before disconnecting any fuel line.
• Disconnect the negative battery cable before opening the fuel system.
• Keep a class B fire extinguisher nearby.
• Fuel will spill out of the module and lines; wear safety glasses and fuel-resistant gloves.
• Do not use power tools near open fuel vapors.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• Ratchet
• Extension bar
• Flat-blade screwdriver
• Trim panel tool
• Fuel line disconnect tool
• Torque wrench
• Pliers
• Drain pan
• Shop towels
• Safety glasses
• Fuel-resistant gloves
• Jack stands
• Floor jack rated 3-ton minimum

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Fuel pump module - Qty: 1
• Fuel pump module seal - Qty: 1
• Fuel filter strainer - Qty: 1
• Fuel pump lock ring - Qty: 1
• Fuel line clip - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Run the fuel level as low as safely possible before starting. Less fuel makes the tank easier and safer to handle.
• Disconnect the negative battery cable.
• Let the engine cool completely.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Relieve fuel pressure

• Use the fuel pump fuse or relay method if accessible, then crank the engine briefly until it stalls.
• Turn the key off and disconnect the negative battery cable with a 10mm socket.
• Take your time here.

Step 2: Access the fuel pump module

• Fold or remove the rear seat bottom as needed using a trim panel tool.
• Lift the service cover to expose the fuel pump access area.
• Clean around the cover before opening it so dirt does not fall into the tank.

Step 3: Disconnect electrical and fuel connections

• Unplug the fuel pump electrical connector by hand.
• Use the fuel line disconnect tool to remove the fuel line from the module.
• Have a drain pan and shop towels ready for fuel drips.

Step 4: Remove the lock ring and pump module

• Use a flat-blade screwdriver and pliers only if needed to carefully release the lock ring.
• Lift the pump module straight out slowly so the float arm does not bend.
• Remove the old seal and discard it.

Step 5: Install the new pump module

• Transfer any needed parts from the old module only if the new assembly does not include them.
• Install the new fuel pump module seal in the groove.
• Set the new module into the tank in the same orientation as the old one.
• Install the lock ring and tighten it evenly. Torque to 40 Nm (30 ft-lbs).

Step 6: Reconnect lines and reassemble

• Reconnect the fuel line until it clicks into place.
• Plug in the electrical connector.
• Reinstall the service cover and rear seat parts.
• Reconnect the negative battery cable with the 10mm socket.

Step 7: Prime and check for leaks

• Turn the key to ON for 5 seconds, then OFF. Repeat 2-3 times to prime the system.
• Start the engine and inspect the fuel pump area and fuel line connection for leaks.
• If the engine does not start right away, check the connector and fuel line engagement.

---

✅ After Repair

• Let the engine idle for a few minutes and recheck for fuel leaks.
• Confirm the fuel gauge works normally.
• Test drive gently and verify there is no hesitation or stalling.

---

💰 DIY vs Shop Cost

Shop Cost: $700-$1,300 (parts + labor)

DIY Cost: $180-$450 (parts only)

You Save: $450-$850 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-5 hours.

---
