🔧 Altima - Fuel Pump Replacement

On your Altima, the fuel pump sits inside the fuel tank as part of an in-tank module (often called the “fuel pump assembly”). The most common method is through the access panel under the rear seat—no need to drop the tank in most cases.

Difficulty Level: Intermediate | Estimated Time: 1.5–3 hours

---

⚠️ Safety & Precautions

• 🧯 Work outdoors or in a very well-ventilated area—fuel vapors ignite easily.
• 🚭 No smoking, no sparks, no hot work lights; keep a fire extinguisher nearby.
• 🔋 Disconnect the negative battery terminal before opening the tank.
• ⛽ Relieve fuel pressure before disconnecting fuel lines to avoid spray.
• 🧤 Wear gloves and safety glasses; fuel is harsh on skin/eyes.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 3/8" drive ratchet
• 3" extension (3/8" drive)
• Phillips screwdriver #2
• Flathead screwdriver (small)
• Trim removal tool (plastic)
• Needle-nose pliers
• Brass drift punch (specialty)
• Small hammer
• Torque wrench (3/8" drive)
• Shop towels
• Catch pan (small)
• Nitrile gloves
• Safety glasses
• Fire extinguisher (Class B)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Fuel pump module assembly (in-tank) - Qty: 1
• Fuel pump module tank seal / O-ring - Qty: 1
• Fuel pump strainer (sock filter) - Qty: 1
• Fuel line retaining clips (if damaged) - Qty: 1 set

---

📋 Before You Begin

• Park on level ground, turn the ignition OFF, and remove the key.
• Open the fuel door to reduce tank pressure.
• Disconnect the negative battery terminal using a 10mm socket.
• Plan to keep the fuel level below 1/2 tank if possible (less spill risk).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Relieve fuel pressure

• Fold down the rear seatbacks (if equipped) for more working space.
• Remove the rear seat bottom cushion: use your hands to pull up sharply at the front edge near the left and right seating positions; then lift it out. If a fastener is present, remove it with a 10mm socket.
• Find the fuel pump access cover area and unplug the fuel pump electrical connector (press the tab and pull).
• Reconnect the negative battery terminal temporarily using the 10mm socket.
• Start the engine and let it run until it stalls (it may crank a few seconds). This uses up the remaining fuel pressure.
• Turn ignition OFF, then disconnect the negative battery terminal again using the 10mm socket.
• Tip: Crank 2–3 seconds once more.

Step 2: Remove the access cover

• Remove the access cover screws using a Phillips screwdriver #2 (some covers use small bolts—use a 10mm socket if needed).
• Lift the cover off using a trim removal tool (plastic) if it’s stuck.
• Clean the top of the tank/module area with shop towels so dirt doesn’t fall into the tank.

Step 3: Disconnect fuel lines and wiring

• Place a catch pan (small) and shop towels around the fittings to catch drips.
• Disconnect the electrical connector(s) by pressing the locking tab and pulling straight off.
• Disconnect the fuel line quick-connector using your fingers or needle-nose pliers (only if needed). A quick-connector is a snap-on fitting with a release tab—don’t pry aggressively.
• If the connector has a locking clip, release it gently with a flathead screwdriver (small) before pulling the line off.

Step 4: Remove the fuel pump lock ring

• Mark the module’s orientation (use a small scratch mark or note the arrow alignment) so you reinstall it the same way.
• Use a brass drift punch (specialty) and small hammer to tap the lock ring counterclockwise to loosen it (brass helps reduce spark risk).
• Remove the lock ring and set it aside.
• Tip: Tap in small steps around the ring.

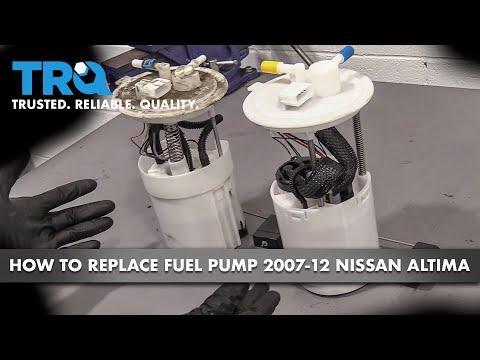

Step 5: Remove the fuel pump module

• Lift the module straight up carefully; angle it as needed to clear the float arm (fuel level sensor arm).
• Remove and discard the old tank seal/O-ring.
• Use shop towels to wipe the sealing surface clean (no dirt, no old rubber).

Step 6: Install the new fuel pump module and seal

• Install the new seal/O-ring into the tank groove (make sure it sits flat and is not twisted).
• Lower the new module into the tank, keeping the float arm from bending.
• Align the module to your orientation marks.

Step 7: Reinstall the lock ring and reconnect everything

• Install the lock ring and start it by hand.
• Tighten the lock ring evenly using the brass drift punch (specialty) and small hammer until it fully seats.
• Torque to Nissan specification using a torque wrench (spec varies by ring style).
• Reconnect the fuel line quick-connector: push on until it clicks, then pull back lightly to confirm it’s locked.
• Reconnect the electrical connector(s) until they click.

Step 8: Reinstall the access cover and rear seat

• Reinstall the access cover screws using a Phillips screwdriver #2 (or 10mm socket if equipped).
• Reinstall the rear seat bottom cushion: hook the rear, then push down at the front until it locks in.

---

✅ After Repair

• Reconnect the negative battery terminal using a 10mm socket.
• Prime the system: turn ignition ON for 5 seconds (do not crank), then OFF. Repeat 3 times.
• Start the engine and let it idle for 1–2 minutes.
• Check carefully for fuel smell or dampness at the pump top and fuel line connection (rear seat area).
• If you have a check engine light after the repair, scan for codes—an EVAP/fuel pressure code can appear if a connector isn’t fully seated.

---

💰 DIY vs Shop Cost

Shop Cost: ₹12,000–₹25,000 (parts + labor)

DIY Cost: ₹6,000–₹16,000 (parts only)

You Save: ₹6,000–₹9,000 by doing it yourself!

Shop labor rates vary but typically run ₹800–₹1,500/hour. This repair takes a shop approximately 1.5–3 hours.

---
