🔧 Fuel Pump - Replacement

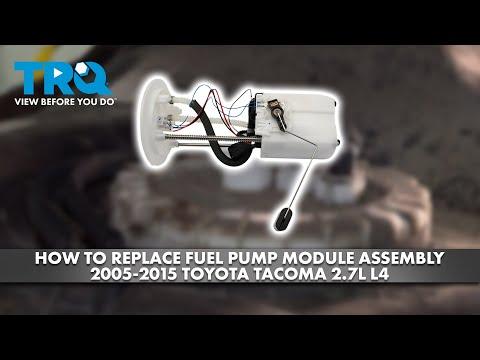

On your Tacoma, the fuel pump is inside the fuel tank as part of the pump/sender module. Replacement is mostly about safely depressurizing the fuel system, accessing the top of the tank, and swapping the module without introducing dirt or damaging the tank seal.

Difficulty Level: Advanced | Estimated Time: 2.5-5.0 hours

---

⚠️ Safety & Precautions

• 🧯 Work outdoors or in a very well-ventilated area; fuel vapors are extremely flammable.
• 🔥 No smoking, no sparks, no hot lights; keep a Class B fire extinguisher nearby.
• 🔋 Disconnect the negative battery cable before opening the fuel system.
• 🧼 Cleanliness matters: dirt that falls into the tank can damage the new pump.
• 🛻 Support the truck securely on jack stands if you’re going under it.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Nitrile gloves
• Safety glasses
• Class B fire extinguisher
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Socket set (8mm-19mm)
• Ratchet (3/8")
• Extensions (3/8")
• Torque wrench (3/8" drive)
• Flathead screwdriver
• Needle-nose pliers
• Fuel line disconnect tool set (specialty)
• Brass punch and small hammer (specialty)
• Shop rags
• Drain pan
• Marker pen

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Fuel pump module assembly - Qty: 1
• Fuel tank pump seal O-ring - Qty: 1
• Fuel pump strainer (sock filter) - Qty: 1
• Optional: Fuel filter (if serviced separately) - Qty: 1

---

📋 Before You Begin

• 🧠 I need 2 quick details so I can give you the exact access method and the correct torque specs.
• Is there an interior access cover for the pump (under the cab interior trim/carpet), or do you only have access from underneath (meaning tank drop/bed lift)?
• Are you replacing the entire pump module or only the pump motor inside the module?

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Relieve fuel pressure

• Remove the fuel filler cap to vent tank pressure.
• Disconnect the negative battery terminal using a 10mm socket.
• Place shop rags under any line you open to catch fuel.
• Let the truck cool fully first.

Step 2: Choose your access path (I’ll finalize once you answer the 2 questions)

• Path A (Interior access cover): You work from inside the cab to reach the top of the module.
• Path B (Drop tank / lift bed): You work from underneath to reach the top of the tank.

Step 3: Prep the area (both paths)

• Blow/brush dirt away from the top of the tank area you’ll open (use shop rags and a flathead screwdriver carefully for packed dirt).
• Use a marker pen to mark the module orientation before removal.

Step 4: Disconnect electrical connector(s) and fuel lines

• Unplug the module electrical connector by releasing the lock tab using a flathead screwdriver.
• Disconnect the fuel line quick-connect using a fuel line disconnect tool set (specialty).
• Catch any spill into a drain pan and wipe with shop rags.

Step 5: Remove the pump lock ring / retaining ring

• Use a brass punch and small hammer (specialty) to tap the lock ring loose (brass reduces spark risk).
• Lift the ring off and set it aside.

Step 6: Remove the module

• Carefully lift the module straight up; angle it as needed to clear the float arm.
• Remove the old fuel tank pump seal O-ring from the tank opening.

Step 7: Install the new seal and module

• Install the new fuel tank pump seal O-ring into the tank groove (make sure it sits flat and isn’t twisted).
• Lower the new module into the tank, keeping your orientation marks aligned.

Step 8: Reinstall lock ring and reconnect lines

• Reinstall the lock ring and seat it by tapping with the brass punch and small hammer (specialty) until fully locked.
• Reconnect the fuel line until it clicks; lightly tug to confirm it’s locked.
• Reconnect the electrical connector until it clicks.
• Torque specs: I’ll provide the exact fastener torques for your access path after you answer the 2 questions above.

Step 9: Reassemble access (Path A or Path B)

• Path A: Reinstall the access cover and interior trim using the socket set (8mm-12mm) as applicable.
• Path B: Reinstall tank/bed hardware using the socket set (12mm-19mm) and torque wrench (3/8" drive).

---

✅ After Repair

• Reconnect the negative battery terminal using a 10mm socket.
• Cycle the key to ON for 3 seconds, OFF for 3 seconds, repeat 3-4 times to prime the system.
• Start the engine and inspect for leaks around the line connection and module seal.
• If you smell fuel, shut it off immediately and re-check the quick-connect and seal seating.

---

💰 DIY vs Shop Cost

Shop Cost: $650-$1,200 (parts + labor)

DIY Cost: $180-$650 (parts only)

You Save: $470-$550 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2.5-5.0 hours.

---
