🔧 Corolla - Fuel Pump Replacement

Your Corolla’s fuel pump sits inside the fuel tank as part of a pump module under the rear seat. Replacing it involves relieving fuel pressure, opening the access cover, disconnecting lines/wiring, and swapping the pump/module so the engine gets proper fuel pressure again.

Difficulty Level: Intermediate | Estimated Time: 1.5-3 hours

---

⚠️ Safety & Precautions

• ⚠️ Work outside or in a well-ventilated area (gas fumes are dangerous).
• ⚠️ No smoking, flames, heaters, or power tools that can spark near the car.
• ⚠️ Wear safety glasses and fuel-resistant gloves (gas can irritate skin/eyes).
• ⚠️ Relieve fuel pressure before disconnecting any fuel line (prevents spray).
• ⚠️ Disconnect the negative battery cable before unplugging the fuel pump wiring.
• ⚠️ Keep dirt out of the tank—clean the top of the module before opening it.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Fuel-resistant nitrile gloves
• Fire extinguisher Class B
• 10mm socket
• 3/8" ratchet
• 6" extension
• Phillips screwdriver #2
• Flat trim tool
• Needle-nose pliers
• Small pick tool
• Torque wrench (inch-pound)
• Shop towels
• Catch pan
• Painter’s tape and marker

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Fuel pump module assembly - Qty: 1
• Fuel pump module tank seal / O-ring - Qty: 1
• New hose clamps (fuel-rated) - Qty: 2

---

📋 Before You Begin

• 🅿️ Park on level ground and open the fuel door to reduce tank vapor pressure.
• 🧯 Place a Fire extinguisher Class B within reach.
• 🧼 Have a clean work area and plenty of shop towels ready.
• 🔋 You will disconnect the negative battery cable after relieving fuel pressure.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Relieve fuel pressure

• Open the under-hood fuse/relay box.
• Remove the EFI fuse using needle-nose pliers.
• Start the engine and let it run until it stalls (it may take a few seconds).
• Crank the engine for 2–3 seconds one more time to release leftover pressure.
• Turn key OFF.
• Tip: This reduces fuel spray at the line.

Step 2: Disconnect the battery

• Use a 10mm socket and 3/8" ratchet to loosen the negative battery terminal.
• Remove the negative cable and keep it from springing back.

Step 3: Remove the rear seat cushion

• From the rear footwell area, release the seat cushion retainers (they pop loose).
• Use a flat trim tool if needed, then lift the cushion out.

Step 4: Open the fuel pump access cover

• Locate the access panel in the floor under the rear seat.
• Use a Phillips screwdriver #2 or 10mm socket (varies by cover fasteners) to remove the cover screws/bolts.
• Peel back any butyl sealer carefully with a small pick tool.

Step 5: Clean the area (important)

• Wipe the top of the pump module and surrounding area with shop towels.
• Do not let dirt fall into the tank opening.

Step 6: Disconnect the electrical connector

• Press the connector tab and unplug it by hand.
• If stuck, use a small pick tool gently on the tab (don’t break it).

Step 7: Disconnect the fuel line(s)

• Place shop towels around the line connection to catch any fuel.
• Release the quick-connector by squeezing the tabs and pulling the line straight off.
• Let any small amount of fuel drain into a catch pan.
• Tip: Pull straight—twisting can damage the connector.

Step 8: Remove the pump module retaining fasteners

• Use painter’s tape and marker to mark the module orientation (so it goes back the same way).
• Remove the retaining nuts/bolts using a 10mm socket, ratchet, and extension.

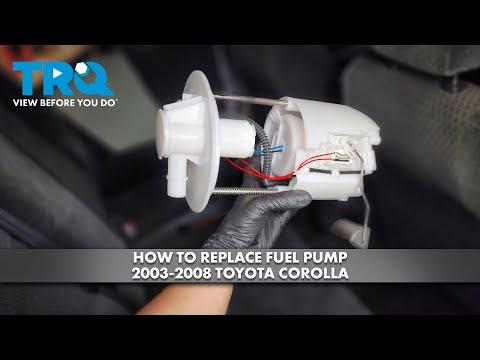

Step 9: Lift out the pump module

• Lift the module straight up slowly.
• Angle it as needed to clear the float arm (fuel level sensor) without bending it.
• Have the catch pan ready—fuel will drip from the module.

Step 10: Replace the seal (O-ring) and install the new module

• Remove the old tank seal/O-ring and wipe the sealing surface clean with shop towels.
• Install the new seal/O-ring evenly in its groove (no twists).
• Lower the new module into the tank, keeping the float arm safe.
• Align it with your tape marks.

Step 11: Tighten the retaining fasteners

• Start all nuts/bolts by hand to avoid cross-threading.
• Tighten evenly in a crisscross pattern using a 10mm socket.
• Final tighten using an inch-pound torque wrench: Torque to 35 in-lbf (4 N·m).

Step 12: Reconnect fuel line(s) and electrical connector

• Push the fuel line on until it clicks. Tug lightly to confirm it’s locked.
• Plug in the electrical connector until it clicks.

Step 13: Reinstall the access cover and rear seat

• Reinstall the access cover using a Phillips screwdriver #2 or 10mm socket.
• Reinstall the rear seat cushion and press down firmly to lock the retainers.

Step 14: Restore power and prime the system

• Reinstall the EFI fuse using needle-nose pliers.
• Reconnect the negative battery terminal using a 10mm socket.
• Turn key to ON (do not start) for 5 seconds, then OFF. Repeat 3 times to prime.
• Start the engine.

---

✅ After Repair

• 🔎 With the engine running, check the pump module top and fuel line connection for leaks.
• 👃 If you smell strong fuel odor, shut it off and recheck the seal and line lock.
• 🛣️ Take a short test drive, then recheck for leaks again.

---

💰 DIY vs Shop Cost

Shop Cost: $650-$1,200 (parts + labor)

DIY Cost: $180-$450 (parts only)

You Save: $470-$750 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3 hours.

---
