🔧 Fuel Pump - Replacement

The fuel pump on your F-150 is inside the fuel tank, so the tank has to be lowered to replace the pump module. This is a bigger job, but it is straightforward if you work safely and keep everything clean.

Difficulty Level: Advanced | Estimated Time: 4-6 hours

---

⚠️ Safety & Precautions

• Fuel is flammable. Work outside or in a very well-ventilated area away from sparks, heaters, and cigarettes.
• Relieve fuel pressure before disconnecting any lines.
• Disconnect the negative battery cable before starting.
• The fuel tank is heavy when full. Run the tank low on fuel before beginning.
• Support the tank securely with a floor jack and a wide wood block.
• Use eye protection and fuel-resistant gloves.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 13mm socket
• 15mm socket
• Ratchet
• Long extension
• Torque wrench
• Fuel line disconnect tool (specialty)
• Flat-blade screwdriver
• Floor jack (rated 3-ton minimum)
• Jack stands
• Wood block
• Fuel-safe drain pan
• Shop towels
• Safety glasses
• Nitrile gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Fuel pump module - Qty: 1
• Fuel tank seal / lock ring seal - Qty: 1
• Fuel filter sock - Qty: 1
• Fuel line O-rings - Qty: 1 set
• Fuel filler neck seal - Qty: 1

---

📋 Before You Begin

• Run the fuel level as low as possible before starting.
• Park on level ground and set the parking brake.
• Disconnect the negative battery cable.
• Relieve fuel pressure at the fuel rail before opening the system.
• Raise the truck safely and support it on jack stands.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Relieve fuel pressure and disconnect the battery

• Use a scan tool or follow the fuel pump fuse method to depressurize the system.
• Disconnect the negative battery cable with a 10mm socket.

Step 2: Raise and support the truck

• Use a floor jack (rated 3-ton minimum) and jack stands to safely lift the rear of the truck.
• Keep the fuel tank area fully supported and stable.

Step 3: Remove the spare tire if it blocks access

• Use the appropriate 15mm socket and ratchet to lower the spare tire if needed for tank access.

Step 4: Disconnect the fuel filler and vent hoses

• Use a flat-blade screwdriver to loosen hose clamps if equipped.
• Remove the hoses carefully and label them if needed.

Step 5: Disconnect the electrical connector and fuel lines

• Use a fuel line disconnect tool (specialty) to release the fuel lines.
• Disconnect the fuel pump electrical connector by hand.
• Catch any spilled fuel with a fuel-safe drain pan and shop towels.

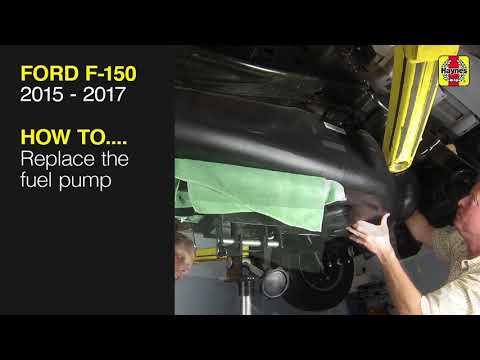

Step 6: Support and lower the fuel tank

• Place a floor jack (rated 3-ton minimum) with a wood block under the tank.
• Use a 15mm socket to remove the tank strap bolts.
• Lower the tank slowly and check that nothing is still attached.

Step 7: Remove the fuel pump module

• Clean the top of the tank before opening it.
• Use a fuel pump lock ring tool (specialty) if available, or carefully remove the lock ring as designed.
• Lift the fuel pump module straight out to avoid damaging the float arm.
• Keep dirt out of the tank.

Step 8: Install the new fuel pump module

• Install the new fuel tank seal / lock ring seal.
• Lower the new pump module into place.
• Install and tighten the lock ring fully.

Step 9: Reinstall the fuel tank

• Raise the tank with the floor jack and wood block.
• Reconnect the fuel lines and electrical connector.
• Reinstall the tank strap bolts with a 15mm socket.
• Torque tank strap bolts to 41 Nm (30 ft-lbs).

Step 10: Reconnect hoses, battery, and prime the system

• Reconnect the filler and vent hoses.
• Reconnect the negative battery cable with a 10mm socket.
• Turn the key to ON for 5 seconds, then OFF. Repeat 3 times to prime the fuel system.

---

✅ After Repair

• Check carefully for fuel leaks at the tank, lines, and filler neck.
• Start the engine and let it idle while checking for leaks again.
• Verify the fuel gauge reads correctly.
• Take a short test drive and confirm normal engine power and no warning lights.

---

💰 DIY vs Shop Cost

Shop Cost: $1,000-$1,800 (parts + labor)

DIY Cost: $250-$650 (parts only)

You Save: $750-$1,150 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 4-6 hours.

---
