🔧 Malibu - Fuel Pump Replacement

The fuel pump on your Malibu is part of an in-tank fuel pump module (pump + level sender). Replacement involves safely relieving fuel pressure, disconnecting fuel lines/electrical, and either accessing the module from an interior service cover (if equipped) or lowering the fuel tank.

Difficulty Level: Advanced | Estimated Time: 2.5-5.0 hours

---

⚠️ Safety & Precautions

• 🧯 Work outside or in a well-ventilated area; no sparks/flames/smoking.
• 🛑 Disconnect the negative battery cable before opening the fuel system.
• ⛽ Relieve fuel pressure first to prevent a high-pressure spray.
• 🧼 Clean dirt off the pump area before opening the tank to avoid contamination.
• 🧱 If lowering the tank, support the car with jack stands and support the tank with a jack.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Fire extinguisher (Class B)
• Wheel chocks
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Drain pan
• Siphon pump (hand pump)
• Shop towels
• Ratchet
• Socket set (7mm, 10mm, 13mm, 15mm)
• Extension set (3" and 6")
• Torque wrench (10-100 ft-lbs range)
• Flat trim tool
• Flathead screwdriver
• Fuel line quick-disconnect tool set (5/16" and 3/8")
• Brass punch (non-sparking)
• Hammer

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Fuel pump module assembly - Qty: 1
• Fuel pump module tank seal (O-ring) - Qty: 1
• Fuel pump module lock ring - Qty: 1 (recommended)
• Fuel line retaining clips - Qty: 1 set (optional, if brittle)

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Plan to work with a low fuel level. Less fuel = safer, easier tank handling.
• Relieve fuel pressure (steps below) before disconnecting any fuel line.
• Disconnect the negative battery cable after relieving pressure.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Relieve fuel pressure

• Open the hood and remove the engine cover if it blocks access (use a flat trim tool as needed).
• Remove the fuel pump fuse/relay (use your owner’s manual fuse map; use flathead screwdriver if needed to lift the cover).
• Start the engine and let it run until it stalls, then crank for 2–3 seconds to remove remaining pressure.
• Turn the key OFF.

Step 2: Disconnect the battery

• Use a 10mm socket to disconnect the negative battery cable and isolate it so it can’t spring back.

Step 3: Determine access method (you’ll use A or B)

• If your Malibu has an interior service cover (usually under the rear seat cushion or rear carpet area), use Method A.
• If there is no service cover, you must lower the fuel tank using Method B.

Step 4A (Method A): Open the interior access cover (if equipped)

• Remove the rear seat bottom cushion (pull the release tabs and lift; use a flat trim tool if clips are tight).
• Peel back any insulation to reveal the fuel pump service cover.
• Remove the cover fasteners using a 7mm socket or 10mm socket (varies by cover).

Step 5A (Method A): Disconnect wiring and fuel lines at the module

• Unplug the pump electrical connector (release the tab by hand or use a flat trim tool gently).
• Place a drain pan and shop towels under the lines.
• Disconnect the fuel line quick-connects using the fuel line quick-disconnect tool set (5/16" and 3/8"). (A quick-connect is a snap-on fuel fitting; the tool releases the internal spring.)

Step 6A (Method A): Remove the lock ring and pump module

• Clean the area around the lock ring using shop towels so dirt can’t fall into the tank.
• Use a brass punch and hammer to rotate the lock ring counterclockwise until it releases.
• Lift the module straight up. Angle it as needed to clear the level float without bending it.
• Remove the old tank seal (O-ring) and wipe the sealing surface clean with shop towels.

Step 4B (Method B): Raise the car and support the fuel tank

• Chock the wheels with wheel chocks.
• Lift the rear with a floor jack (rated 3-ton minimum) and support it securely on jack stands (rated 3-ton minimum).
• Siphon excess fuel into an approved container using a siphon pump (hand pump) to reduce tank weight.
• Support the fuel tank with a floor jack (rated 3-ton minimum) (use a wide block/pad if available) and keep light upward pressure on it.

Step 5B (Method B): Disconnect tank lines and electrical

• Disconnect the pump electrical connector as you lower access allows (use a flat trim tool to release tabs if needed).
• Disconnect fuel supply/return/EVAP lines using the fuel line quick-disconnect tool set (5/16" and 3/8").
• Keep a drain pan and shop towels ready for residual fuel.

Step 6B (Method B): Remove tank straps and lower the tank

• Remove the fuel tank strap bolts using a 15mm socket and ratchet.
• Lower the tank slowly with the floor jack (rated 3-ton minimum), watching for any remaining connected hoses/wires.
• When reinstalling the strap bolts, use a torque wrench: Torque to 25 Nm (18 ft-lbs).

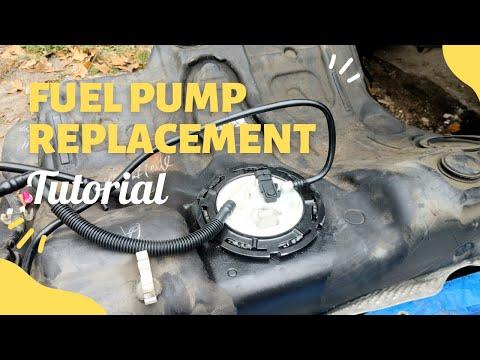

Step 7 (Method A or B): Swap the pump module into the tank

• With the module accessible, use a brass punch and hammer to rotate the lock ring counterclockwise and remove it.
• Lift out the module carefully (avoid bending the level float arm).
• Install the new tank seal (O-ring) onto the tank opening (lightly lubricate with clean gasoline on a shop towel so it doesn’t pinch).
• Install the new module and align it to the index marks.
• Install the lock ring and drive it clockwise with the brass punch and hammer until fully seated/locked.

Step 8: Reconnect lines, wiring, and close up

• Reconnect fuel lines until they click; gently tug to confirm they’re locked.
• Reconnect the electrical connector.
• If Method A: reinstall the access cover using a 7mm socket or 10mm socket, then reinstall the rear seat cushion.
• If Method B: raise the tank with the floor jack, reinstall the straps with a 15mm socket, and Torque to 25 Nm (18 ft-lbs).

Step 9: Restore power and prime the fuel system

• Reconnect the negative battery cable using a 10mm socket.
• Reinstall the fuel pump fuse/relay.
• Turn key to ON (not start) for 3 seconds, then OFF for 10 seconds; repeat 3 times to prime.
• Start the engine and let it idle while you check for leaks at every connection.

---

✅ After Repair

• Check for fuel smell/leaks with the engine running and after a short test drive.
• If the fuel gauge reads wrong, recheck the module connector and ensure the float arm wasn’t bent.
• If a check engine light appears, scan for codes related to EVAP/fuel pressure and recheck line connections.

---

💰 DIY vs Shop Cost

Shop Cost: ₹18,000-₹45,000 (parts + labor)

DIY Cost: ₹6,000-₹20,000 (parts only)

You Save: ₹12,000-₹25,000 by doing it yourself!

Shop labor rates vary but typically run ₹1,500-₹3,000/hour. This repair takes a shop approximately 2.5-5.0 hours.

---
