🔧 Camry - Fuel Pump Replacement

The fuel pump on your Camry is inside the fuel tank as part of the fuel pump/sender module. On this model, you typically access it through a service cover under the rear seat, so you usually do not have to drop the fuel tank.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• 🧯 Work outside or in a well-ventilated area; fuel vapors ignite easily.
• 🔥 No smoking, no shop lights with hot bulbs, no sparks near the car.
• 🧤 Wear gloves and safety glasses; gasoline is skin/eye irritant.
• 🪫 Disconnect the negative battery cable before opening the tank.
• ⛔ Relieve fuel pressure before disconnecting fuel lines to avoid spray.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Fire extinguisher (Class B)
• 10mm socket
• 12mm socket
• 1/4" drive ratchet
• 3/8" drive ratchet
• 3" extension
• Trim clip removal tool
• Flat-blade screwdriver (small)
• Phillips screwdriver #2
• Needle-nose pliers
• Shop towels
• Catch pan
• Non-sparking brass punch (specialty)
• Small hammer
• Torque wrench (5–60 Nm range)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Fuel pump module assembly - Qty: 1
• Fuel pump module tank seal/O-ring - Qty: 1
• Fuel pump strainer (sock filter) - Qty: 1
• Fuel line clip(s) - Qty: 1-2

---

📋 Before You Begin

• Park on level ground, set the parking brake, and keep doors open for ventilation.
• Run the fuel level down to about 1/4 tank or less; it reduces spill risk.
• Open the trunk and remove anything that could block rear seat access.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Relieve fuel pressure

• Open the hood.
• Use a 10mm socket to loosen the negative battery terminal and remove it. Torque to 5 Nm (44 in-lbs) on reassembly.
• Locate the under-hood fuse/relay box and remove the fuel pump fuse or circuit opening relay (labeling varies).
• Reconnect the negative battery cable temporarily using the 10mm socket.
• Start the engine and let it run until it stalls. Crank for 2–3 seconds more, then turn the key OFF.
• Disconnect the negative battery cable again with the 10mm socket.
• Tip: This step greatly reduces fuel spray.

Step 2: Remove the rear seat cushion

• From the back seat footwell area, locate the seat cushion retainers/bolts at the front edge.
• If your cushion uses bolts, remove them using a 12mm socket. Torque to 37 Nm (27 ft-lbs) on reassembly.
• If your cushion uses clips, use a trim clip removal tool to pop the front edge up.
• Lift the seat cushion out and set it aside.

Step 3: Open the fuel pump service cover

• Find the oval/round metal access cover on the floor under the seat.
• Remove the cover screws/bolts using a Phillips screwdriver #2 or 10mm socket (varies).
• Lift the cover. Use shop towels to wipe away dust so it can’t fall into the tank.

Step 4: Disconnect electrical connector and fuel line

• Unplug the pump/module electrical connector by releasing the lock tab with a small flat-blade screwdriver.
• Place a catch pan and shop towels under the fuel line connection.
• Release the quick-connect fuel line:
  • Use a small flat-blade screwdriver to gently lift the connector lock (if equipped).
  • Squeeze the connector tabs by hand and pull the line straight off.
  • Use needle-nose pliers only if needed, and don’t crush the connector.

Step 5: Remove the pump module lock ring

• Mark the module and tank alignment with a marker (so you reinstall in the same orientation).
• Use a non-sparking brass punch (specialty) and small hammer to tap the lock ring counterclockwise until it releases.
• Remove the lock ring and set it aside.
• Tip: Tap gently; avoid sparks and cracked plastic.

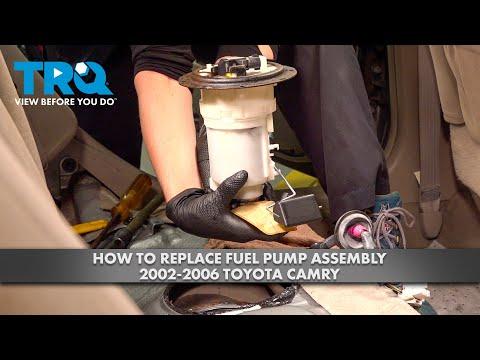

Step 6: Remove the fuel pump module

• Lift the module straight up slowly.
• Angle it as needed to clear the float arm (fuel level sensor) without bending it.
• Let fuel drain from the module into the tank for a few seconds, then move it to the catch pan.
• Remove and discard the old tank seal/O-ring.

Step 7: Swap pump parts (if you’re not replacing the whole module)

• If you bought a complete module, skip to Step 8.
• On a bench, use a Phillips screwdriver #2 and small flat-blade screwdriver to release the internal clips and remove the pump.
• Install the new fuel pump strainer (sock filter) and make sure it fully seats.
• Reassemble the module exactly as it came apart.

Step 8: Install new seal and reinstall the module

• Install the new tank seal/O-ring in the tank opening (not on the module unless your seal design requires it).
• Lower the module into the tank, keeping the float arm safe.
• Align your marks and seat the module fully.
• Reinstall the lock ring and tap it clockwise using the brass punch and hammer until it is fully locked and aligned.

Step 9: Reconnect fuel line and electrical connector

• Push the fuel line quick-connect on until it clicks.
• Gently tug the line to confirm it’s locked.
• Reconnect the electrical connector until it clicks.

Step 10: Reinstall service cover and rear seat

• Reinstall the access cover using a Phillips screwdriver #2 or 10mm socket.
• Reinstall the rear seat cushion:
  • Position it and press down to engage clips, or reinstall bolts using a 12mm socket.
  • Torque to 37 Nm (27 ft-lbs) if bolts are equipped.
• Reconnect the negative battery terminal using a 10mm socket. Torque to 5 Nm (44 in-lbs)

---

✅ After Repair

• Turn the key to ON (not START) for 3 seconds, then OFF. Repeat 3 times to prime the system.
• Start the engine and let it idle.
• Check carefully for fuel leaks at the quick-connect and around the lock ring area.
• If you smell fuel inside, shut off the engine and recheck the seal and line connection.

---

💰 DIY vs Shop Cost

Shop Cost: $650-$1,200 (parts + labor)

DIY Cost: $180-$550 (parts only)

You Save: $470-$650 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
