🔧 Forester - Fuel Pump Module Replacement

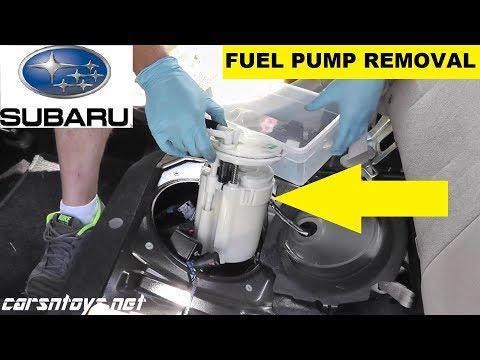

On your Forester, the fuel pump sits inside the fuel tank as a complete “module” (pump + level sensor + housing). Replacement is typically done through an access panel under the rear seat, so you usually don’t have to drop the tank.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• 🧯 Work outside or in a well-ventilated area; fuel vapors ignite easily.
• 🔥 No smoking, no heat guns, no shop lights with hot bulbs near the opening.
• 🔋 Disconnect the negative battery cable before opening the fuel system.
• 🧤 Wear gloves and safety glasses; fuel can irritate skin/eyes.
• 🧼 Clean dirt off the tank top before opening it so debris doesn’t fall in.
• ⚠️ Wipe spills immediately and dispose of rags safely.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Fire extinguisher (Class B)
• 10mm socket
• 3/8" ratchet
• 3" extension (3/8")
• Trim removal tool set
• Phillips screwdriver #2
• Small flat-blade screwdriver
• Needle-nose pliers
• Pick tool
• Torque wrench (inch-pound)
• Shop towels
• Brake cleaner spray
• Fuel line disconnect tool set
• Fuel pump lock ring wrench (specialty)
• Paint marker
• Catch pan (low profile)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Fuel pump module assembly - Qty: 1
• Fuel pump module seal / O-ring - Qty: 1
• Fuel tank access cover butyl seal (if damaged) - Qty: 1

---

📋 Before You Begin

• 🅿️ Park on level ground, shift to Park, and set the parking brake.
• ⛽ Try to work with under half a tank to reduce slosh and fumes.
• 🔑 Remove the key fob from the vehicle area so the system can’t wake up.
• 🔋 Disconnect the negative battery terminal using a 10mm socket.
• 🧠 If you have radio presets, note them; battery disconnect may reset some settings.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Relieve fuel pressure

• Use the trim removal tool set to access the interior fuse panel area (as needed) and locate the fuel pump fuse/relay per the fuse cover chart.
• Remove the fuel pump fuse/relay using needle-nose pliers.
• Reconnect the negative cable temporarily using the 10mm socket, start the engine, and let it stall. Crank for 3 seconds once more to bleed leftover pressure.
• Turn ignition OFF, then disconnect the negative cable again using the 10mm socket.
• Less pressure = less spray.

Step 2: Remove the rear seat bottom to reach the access panel

• Use the trim removal tool set to release the rear seat bottom clips (pull up at the front edge of the seat bottom).
• Lift the seat bottom out of the vehicle and set it aside.

Step 3: Open the fuel pump access cover

• Locate the access cover on the floor above the fuel tank.
• Remove the cover fasteners using a Phillips screwdriver #2 or 10mm socket (fastener type varies).
• If the cover is stuck, gently lift it using the trim removal tool set (don’t bend it).

Step 4: Clean the area before disconnecting anything

• Use brake cleaner spray and shop towels to clean dirt off the top of the module and surrounding tank surface.
• Use a paint marker to mark the module position relative to the tank (helps alignment during reassembly).

Step 5: Disconnect the electrical connector(s)

• Unplug the module connector by releasing the lock tab using a small flat-blade screwdriver (gentle—don’t break the tab).

Step 6: Disconnect the fuel line(s)

• Place shop towels and a catch pan under the connection to catch drips.
• Release the quick-connect fitting using the appropriate fuel line disconnect tool set (a disconnect tool slides into the fitting to release the internal spring).
• Pull the line straight off. Do not twist aggressively.

Step 7: Remove the lock ring

• Use the fuel pump lock ring wrench (specialty) to turn the lock ring counterclockwise and remove it.
• If you must use a hand tool, do not use steel punches/hammer that can spark. (The lock ring wrench is the safe, clean way.)

Step 8: Lift the fuel pump module out

• Carefully lift the module straight up. Angle it as needed so the float arm (fuel level sensor arm) clears the opening.
• Let fuel drain from the module into the tank for a few seconds, then set it into the catch pan.
• Remove the old seal/O-ring using a pick tool.

Step 9: Install the new seal and module

• Install the new seal/O-ring onto the tank opening (make sure it is not twisted).
• Lower the new module into the tank, guiding the float arm in without bending it.
• Align the module to the marks you made using the paint marker.

Step 10: Reinstall and tighten the lock ring

• Thread the lock ring on by hand first to avoid cross-threading.
• Tighten using the fuel pump lock ring wrench (specialty) until fully seated and aligned to the tank/module indexing marks.
• Torque to Subaru specification (service manual) for the lock ring using the correct adapter and torque wrench (inch-pound) if your lock ring tool supports torque.

Step 11: Reconnect fuel line(s) and connector(s)

• Push the fuel line on until it “clicks,” then tug lightly to confirm it’s locked.
• Reconnect the electrical connector until the lock tab clicks.

Step 12: Reinstall access cover and rear seat bottom

• Reinstall the access cover fasteners using the Phillips screwdriver #2 or 10mm socket.
• If the access cover seal is damaged, replace the fuel tank access cover butyl seal so fumes don’t enter the cabin.
• Reinstall the rear seat bottom and press down firmly to re-engage the clips.

---

✅ After Repair

• 🔋 Reconnect the negative battery cable using the 10mm socket.
• 🧠 Prime the system: turn ignition ON (engine OFF) for 5 seconds, then OFF for 5 seconds; repeat 3 times.
• 👃 Start the engine and check carefully for fuel smell and leaks at the line connection and lock ring area.
• 🛠️ If you have a check engine light after the repair, scan for codes—fuel line not fully clicked on is a common cause.

---

💰 DIY vs Shop Cost

Shop Cost: $800-$1,400 (parts + labor)

DIY Cost: $250-$700 (parts only)

You Save: $550-$700 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
