🔧 CX-30 - Fuel Pump Replacement

The fuel pump on your CX-30 is part of an in-tank fuel pump module. Replacing it usually means lifting the rear seat, opening the service cover (if equipped), disconnecting the fuel lines/electrical connector, and swapping the module with a new seal to prevent leaks and fuel vapor smells.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• 🧯 Work outside or in a very well-ventilated area; fuel vapors ignite easily.
• 🔥 No smoking, no open flames, and keep heat guns/work lights away from the tank opening.
• 🧤 Wear safety glasses and fuel-resistant gloves; gasoline can splash during line disconnect.
• 🔌 Disconnect the negative battery cable before unplugging the pump wiring.
• ⛔ Relieve fuel pressure before disconnecting any fuel line to reduce spray.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" drive ratchet
• 3" extension (1/4" drive)
• Trim removal tool set
• Pick tool
• Fuel line disconnect tool set
• Needle-nose pliers
• Torque wrench (Nm range)
• Non-sparking brass punch (specialty)
• Small hammer
• Shop towels
• Catch pan
• Flashlight
• Nitrile gloves
• Safety glasses
• Fire extinguisher (Class B)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Fuel pump module assembly - Qty: 1
• Fuel pump module seal/O-ring - Qty: 1
• Fuel strainer (sock filter) - Qty: 1
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• 🅿️ Park on level ground, set the parking brake, and keep the driver window down (helps if the car locks itself).
• 🔋 Disconnect the battery negative cable using a 10mm socket.
• ⛽ Reduce fuel level if possible (under 1/2 tank makes the job cleaner and easier).
• 🧼 Clean the area around the pump access (dirt must not fall into the tank).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Relieve fuel pressure

• Remove the fuel pump fuse/relay (location varies by fuse box layout). Use a trim removal tool set to open fuse box covers.
• Start the engine and let it run until it stalls, then crank for 3 seconds to bleed remaining pressure.
• Turn ignition OFF and reinstall the fuse/relay.
• Fuel pressure relief reduces fuel spray.

Step 2: Access the fuel pump service opening

• Fold the rear seat backs down and remove the rear seat bottom cushion (typically held by clips). Use a trim removal tool set to pop it up carefully.
• Locate the round/oval service cover on the floor above the tank and remove its fasteners. Use a 10mm socket and 1/4" drive ratchet if bolts are present.
• If the cover is sealed with butyl, lift it slowly with a trim removal tool set so you don’t bend it.

Step 3: Clean and mark everything

• Vacuum or wipe dirt away around the module top using shop towels and a flashlight for inspection.
• Use a marker to make an alignment mark between the tank and the pump module so the new one goes in the same orientation.

Step 4: Disconnect electrical connector and fuel lines

• Unplug the fuel pump electrical connector. Use a pick tool to gently lift the lock tab if needed.
• Place shop towels under the fuel line connection and keep a catch pan nearby.
• Disconnect the fuel quick-connect fitting using the fuel line disconnect tool set (this tool releases the internal spring clip).
• Cap/cover open lines with clean towels to keep dirt out.

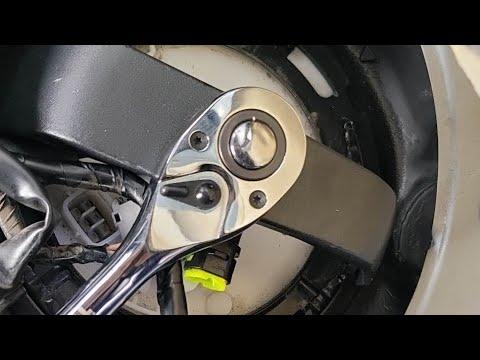

Step 5: Remove the retaining ring/lock ring

• Use a non-sparking brass punch (specialty) and small hammer to tap the retaining ring counterclockwise until it releases.
• Lift the retaining ring off and set it aside.
• Non-sparking tools reduce ignition risk.

Step 6: Remove the fuel pump module

• Carefully lift the module straight up. Use shop towels to catch drips.
• Angle it as needed to clear the level float arm without bending it.
• Drain the module into a catch pan before moving it away from the vehicle.

Step 7: Replace the seal and install the new module

• Remove the old tank seal/O-ring and wipe the sealing surface clean with shop towels.
• Install the new seal/O-ring (do not reuse the old one).
• Lower the new module into the tank, matching your alignment mark.
• Apply a tiny amount of dielectric grease to the electrical connector seal (not the terminals).

Step 8: Reinstall retaining ring and reconnect lines

• Install the retaining ring and tap it clockwise with the non-sparking brass punch (specialty) and small hammer until it is fully seated and aligned.
• Torque to Mazda specification (refer to service data for your exact fastener/ring style).
• Reconnect the fuel line until it clicks/locks, then tug-test by hand.
• Reconnect the electrical connector until it clicks.

Step 9: Reinstall service cover and rear seat

• Reinstall the service cover and fasteners using a 10mm socket and 1/4" drive ratchet.
• Torque to Mazda specification (refer to service data).
• Reinstall the rear seat cushion by aligning the hooks and pressing down firmly until the clips snap in.

Step 10: Reconnect battery and prime the system

• Reconnect the negative battery cable using a 10mm socket.
• Cycle ignition ON (do not start) for 5 seconds, then OFF. Repeat 3 times to prime the fuel system.
• Start the engine and let it idle.

---

✅ After Repair

• 🔍 Check carefully for fuel smell and any wetness around the module and fuel line connection.
• 🧪 With the engine running, recheck for leaks again after 2–3 minutes.
• 🛣️ Test drive 5–10 minutes, then recheck for leaks one more time.
• 🧰 If you have a scan tool, check for stored fuel system codes and clear them if needed.

---

💰 DIY vs Shop Cost

Shop Cost: $650-$1,200 (parts + labor)

DIY Cost: $250-$650 (parts only)

You Save: $400-$550 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
