🔧 Kicks - Fuel Pump Replacement

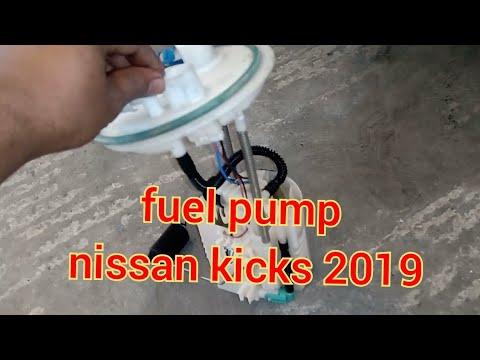

On your Kicks, the fuel pump is part of an in-tank module that supplies fuel at the correct pressure to the engine. Replacing it usually means accessing the top of the fuel tank (either through an interior service cover, or by lowering the tank), then swapping the module and sealing everything back up to prevent leaks and evap (check-engine) issues.

Difficulty Level: Advanced | Estimated Time: 2-5 hours

---

⚠️ Safety & Precautions

• ⚠️ Work outside or in strong ventilation; fuel vapors ignite easily.
• ⚠️ No smoking, no hot lights, no power tools that spark near open fuel.
• ⚠️ Keep a Class B fire extinguisher nearby.
• ⚠️ Relieve fuel pressure before disconnecting any fuel line.
• ⚠️ Disconnect the negative battery terminal before opening the tank/module.
• ⚠️ Clean the area before opening the tank to prevent dirt from entering (dirt can damage the new pump).

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Class B fire extinguisher
• 10mm socket
• Ratchet
• Extension set
• Flat trim removal tool
• Phillips screwdriver
• Fuel line quick-disconnect tool set (specialty)
• Brass punch set (specialty)
• Small hammer
• Shop towels
• Drain pan
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Fuel-safe container
• Tire pressure gauge

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Fuel pump module assembly - Qty: 1
• Fuel pump module seal (O-ring/gasket) - Qty: 1
• New lock ring (if required by the kit) - Qty: 1
• Evap/fuel line retaining clips (assorted) - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks at the rear wheels.
• Drive until the tank is as low as possible; a lighter tank is safer and easier.
• Confirm access method: lift the rear seat bottom and look for a round/oval metal cover with screws (service cover).
• Quick question 1: Do you see an interior service cover under the rear seat, or is there no cover?
• Quick question 2: Are you replacing the complete pump module (recommended) or only the pump motor?

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Relieve fuel pressure

• Open the hood.
• Use a 10mm socket to disconnect the negative battery terminal and move it aside so it can’t spring back.
• Relieve residual pressure by slowly loosening the fuel filler cap.
• If it hisses, wait until it stops.

Step 2: Decide your access path (service cover vs tank drop)

• If you have a rear-seat service cover, you’ll access the module from inside the cabin.
• If you do not have a service cover, the tank must be lowered from underneath.

Step 3A: Interior access (if service cover is present)

• Remove the rear seat bottom using a flat trim removal tool to release the clips (pull up sharply at the front edge).
• Use a Phillips screwdriver to remove the service cover screws and lift the cover.
• Use shop towels to clean all dirt around the pump module top before opening anything.

Step 3B: Underbody access (if no service cover)

• Raise the rear of the vehicle with a floor jack (rated 3-ton minimum) and support it on jack stands (rated 3-ton minimum).
• Use wheel chocks at the front wheels.
• Place a drain pan and fuel-safe container nearby for any spill.

Step 4: Disconnect electrical connector and fuel lines at the module

• Unplug the fuel pump electrical connector by hand (press the tab and pull straight back).
• Wrap the line connection with shop towels.
• Use a fuel line quick-disconnect tool set (specialty) to disconnect the fuel line(s).
• “Quick-disconnect” means it locks with internal fingers.

Step 5: Remove the lock ring and lift out the module

• Mark the module’s orientation with a Phillips screwdriver (scratch mark) so the new one goes in the same direction.
• Use a brass punch set (specialty) and small hammer to tap the lock ring counterclockwise until it releases.
• Brass is softer and reduces spark risk.
• Lift the module slowly; angle it to clear the float arm (fuel level sender) without bending it.
• Remove the old module seal (O-ring/gasket) from the tank opening.

Step 6: Install the new seal and pump module

• Install the new module seal (O-ring/gasket) into the tank groove by hand; make sure it sits flat and is not twisted.
• Lower the new module straight down, keeping the float arm from catching.
• Reinstall the lock ring and use the brass punch set (specialty) and small hammer to tighten it clockwise until fully seated.
• Torque spec note: Lock-ring tightening is typically a “fully seated to the stops” procedure; to give you the exact factory spec/indicator for your Kicks, answer the two questions above and I’ll match the correct procedure.

Step 7: Reconnect lines, connector, and reassemble

• Reconnect the fuel line(s) until you feel/hear a click; gently pull back to confirm it’s locked.
• Reconnect the electrical connector by hand until it clicks.
• If interior access: reinstall the service cover using a Phillips screwdriver, then snap the rear seat bottom back in place.
• If underbody access: lower the vehicle carefully from jack stands (rated 3-ton minimum) using the floor jack (rated 3-ton minimum).

Step 8: Prime the system and check for leaks

• Use a 10mm socket to reconnect the negative battery terminal.
• Turn ignition to ON (do not start) for 5 seconds, then OFF for 5 seconds; repeat 3 times to prime.
• Start the engine and inspect the module area and all fuel line connections for any wetness or fuel smell.

---

✅ After Repair

• Confirm no fuel leaks with the engine running and after a short drive.
• If a check-engine light appears, re-check the seal seating and that the evap/fuel line clips are fully locked.
• Refuel and confirm the fuel gauge reads normally (float arm not stuck).

---

💰 DIY vs Shop Cost

Shop Cost: $600-$1,300 (parts + labor)

DIY Cost: $250-$800 (parts only)

You Save: $350-$500+ by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
