🔧 Sienna - Fuel Pump Replacement

On your Sienna, the fuel pump is an in-tank module (it sits inside the fuel tank). Replacing it means safely relieving fuel pressure, opening the service access (if equipped), and swapping the pump/module without contaminating the tank or damaging fuel lines.

Difficulty Level: Advanced | Estimated Time: 2.5-5.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Work outside or in a very well-ventilated area; fuel vapors ignite easily.
• ⚠️ No smoking, no heaters, no shop lights with hot bulbs; keep a fire extinguisher nearby.
• ⚠️ Disconnect the battery negative cable before opening the tank/service port.
• ⚠️ Relieve fuel pressure before disconnecting any fuel line, or it can spray.
• ⚠️ Keep dirt out of the tank—clean the top of the module before opening it.
• ⚠️ If you must lower the tank: support it with a transmission jack; don’t balance it on a floor jack.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Fire extinguisher (Class B)
• 10mm socket
• 12mm socket
• 14mm socket
• 3/8" ratchet
• 3/8" torque wrench
• Flat-blade screwdriver (small)
• Trim clip removal tool
• Needle-nose pliers
• Fuel line disconnect pick set
• Shop towels
• Drain pan
• Non-sparking plastic scraper
• Permanent marker
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Transmission jack (specialty)
• Fuel pump lock ring wrench (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Fuel pump module assembly - Qty: 1
• Fuel pump tank seal O-ring - Qty: 1
• Fuel pump strainer (sock filter) - Qty: 1
• Fuel line quick-connect retainer clips - Qty: 1 set

---

📋 Before You Begin

• Park your Sienna on level ground, set the parking brake, and chock the rear wheels.
• Drive until the tank is near 1/4 full if possible—less fuel makes the job safer and lighter.
• Confirm which method applies (1 question): Do you have an interior service access panel for the fuel pump (usually under a seat/carpeting), or will you need to lower the fuel tank?
• Disconnect the battery: use a 10mm socket to remove the negative cable and isolate it so it can’t spring back.
• Have a place to store fuel-soaked towels safely (outside) before disposal.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Relieve fuel pressure

• Open the fuel door and loosen the gas cap to vent the tank.
• With the engine off, pull the fuel pump/fuel injection fuse or relay (use a trim clip removal tool to open the fuse box cover if needed).
• Start the engine and let it run until it stalls, then crank for 2-3 seconds more.
• Turn the key off and reconnect nothing yet. Pressure should now be low.

Step 2: Gain access to the fuel pump (two possible paths)

• Path A (Service access panel inside): Move/remove the seat/carpeting as needed using a 12mm socket and trim clip removal tool.
• Path B (No service access panel): You’ll lower the fuel tank from underneath (Steps 7-10).

Step 3: Clean the area and remove the service cover (Path A)

• Vacuum or wipe dirt off the top area using shop towels.
• Remove the access cover fasteners with a 10mm socket or flat-blade screwdriver (small) (varies by cover).
• Peel back any butyl seal carefully using a non-sparking plastic scraper.

Step 4: Disconnect electrical connector and fuel lines

• Unplug the fuel pump electrical connector by releasing the tab with a flat-blade screwdriver (small) (gentle—tabs break easily).
• Place a drain pan and shop towels under the fuel line connection.
• Release the quick-connect using a fuel line disconnect pick set, then pull the line straight off.
• If your line uses a separate retainer clip, remove it with needle-nose pliers and replace it with a new one during reassembly.

Step 5: Mark orientation and remove the lock ring

• Use a permanent marker to mark the pump module position relative to the tank (helps it go back exactly).
• Remove the lock ring using a fuel pump lock ring wrench (specialty) and a 3/8" ratchet.
• Lift the lock ring off and set it aside clean.

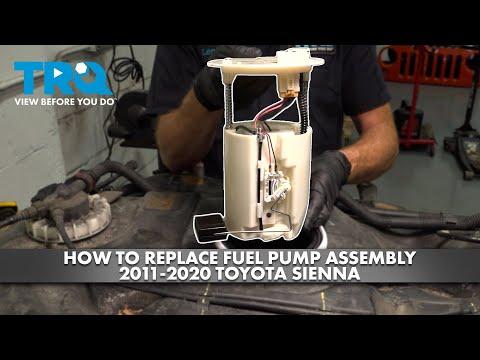

Step 6: Remove the pump module and replace the seal (Path A)

• Carefully lift the module straight up. Angle it as needed so the float arm (fuel level sender) doesn’t bend.
• Remove the old tank seal O-ring and install the new one. Do not reuse the old seal.
• Install the new module (or transfer parts only if your replacement is pump-only). Keep debris out of the tank.

Step 7: If there is NO service access panel—raise and support the van (Path B)

• Use wheel chocks on the front wheels.
• Lift the rear using a floor jack (rated 3-ton minimum) and support with jack stands (rated 3-ton minimum).
• Position a transmission jack (specialty) under the fuel tank to support it.

Step 8: Disconnect tank connections (Path B)

• Disconnect the fuel pump electrical connector using a flat-blade screwdriver (small).
• Disconnect fuel lines using a fuel line disconnect pick set; catch drips with a drain pan.
• Disconnect EVAP/vent hoses using needle-nose pliers (hose clamp type varies).

Step 9: Lower the tank (Path B)

• Remove tank strap bolts using a 14mm socket and 3/8" ratchet.
• Slowly lower the tank on the transmission jack (specialty), watching for hoses still attached.

Step 10: Swap the pump module (Path B)

• Clean the top of the tank with shop towels.
• Remove the lock ring using a fuel pump lock ring wrench (specialty).
• Replace the module and the seal O-ring, then reinstall the lock ring aligned to your marks.

Step 11: Reassemble and secure everything

• Reconnect fuel line(s) until you feel/hear a click; gently tug to confirm it’s locked.
• Reconnect the electrical connector until it clicks.
• Reinstall the service cover (Path A) or raise/strap the tank back up (Path B) using a 14mm socket.
• If strap bolts were removed, tighten with a 3/8" torque wrench to the specification for your Sienna’s tank strap bolts. (This value varies by hardware; I can give the exact spec if you confirm whether you’re doing Path A or Path B.)

Step 12: Prime the system and check for leaks

• Reconnect the battery negative cable using a 10mm socket.
• Reinstall the fuel pump fuse/relay.
• Turn ignition ON (engine off) for 5 seconds, then OFF for 5 seconds. Repeat 3 times to prime.
• Start the engine and inspect all connections for seepage using safety glasses and shop towels.

---

✅ After Repair

• Let the engine idle 2-3 minutes and re-check for fuel smell or dampness around the connection points.
• Take a short 5-10 minute drive, then re-check for leaks again.
• If a check engine light appears, you may have an EVAP hose not fully seated; re-check hose connections and quick-connect locks.

---

💰 DIY vs Shop Cost

Shop Cost: $900-$1,600 (parts + labor)

DIY Cost: $250-$650 (parts only)

You Save: $650-$950 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2.5-5.0 hours.

---
