🔧 Avalon - Fuel Pump Replacement

On your Avalon, the fuel pump is an in-tank module that’s serviced from inside the car (under the rear seat), not by dropping the fuel tank. The job is mostly careful disassembly, keeping dirt out of the tank, and safely handling fuel vapor.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• ⚠️ Work outside or in a very well-ventilated area—fuel vapors are flammable.
• ⚠️ No smoking, no sparks, no shop lights with hot bulbs near the open tank.
• ⚠️ Depressurize the fuel system before disconnecting lines to prevent fuel spray.
• ⚠️ Disconnect the 12V battery negative terminal to reduce spark risk.
• ⚠️ Keep dirt out of the tank—clean the top of the module before opening it.
• ⚠️ Have a fire extinguisher rated for fuel fires nearby.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 12mm socket
• 3/8" drive ratchet
• 3" extension (3/8" drive)
• Torque wrench (10–100 Nm range)
• Trim clip removal tool
• Phillips screwdriver #2
• Pick tool
• Fuel line quick-disconnect tool set
• Fuel pump lock ring wrench (specialty)
• Shop towels
• Catch pan
• Nitrile gloves
• Safety glasses
• Fire extinguisher (Class B)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Fuel pump module assembly - Qty: 1
• Fuel pump module tank seal (O-ring/gasket) - Qty: 1
• Fuel pump lock ring - Qty: 1

---

📋 Before You Begin

• Park on level ground and open the windows for ventilation.
• Lower the fuel level if possible (working near empty reduces spills).
• Depressurize the system: remove the fuel pump relay/fuse, then crank the engine until it stalls; crank 2–3 more seconds.
• Disconnect the battery: use a 10mm socket to remove the negative terminal and isolate it. Torque to 5 Nm (44 in-lbs).
• Have your new tank seal ready—don’t reuse the old seal.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the rear seat cushion

• Pull up firmly on the front edge of the rear seat bottom to release the clips.
• If your Avalon has seat cushion bolts, remove them with a 12mm socket.
• Lift the seat cushion out and set it aside.

Step 2: Access the fuel pump service cover

• Locate the metal service cover on the floor under the rear seat area.
• Remove any trim clips with a trim clip removal tool.
• Remove the cover screws with a Phillips screwdriver #2, then lift the cover off.

Step 3: Clean the area (important)

• Use shop towels to wipe dirt off the top of the fuel pump module and surrounding area.
• Cleanliness prevents tank contamination.

Step 4: Disconnect electrical connector

• Press the lock tab and unplug the module connector by hand.
• If the tab is stubborn, gently assist with a pick tool (don’t break the plastic lock).

Step 5: Disconnect the fuel lines

• Place a catch pan and shop towels under the lines to catch any residual fuel.
• Release the quick-connect fittings using the fuel line quick-disconnect tool set (this tool slides into the connector to release the internal fingers).
• Cap/cover the open lines with clean towels to keep dirt out.

Step 6: Remove the lock ring

• Mark the ring and tank with a reference line using a pick tool so you can confirm alignment on install.
• Remove the fuel pump lock ring using a fuel pump lock ring wrench (specialty).
• Do not use a steel chisel—spark risk.

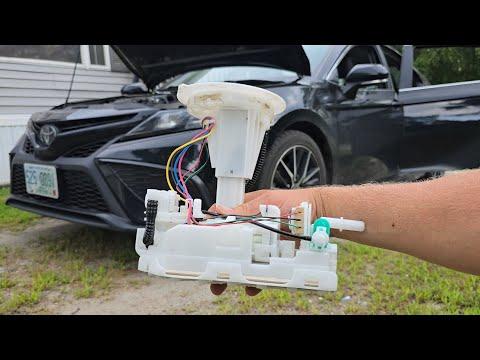

Step 7: Remove the fuel pump module

• Lift the module straight up carefully—there will be fuel in the housing.
• Angle it as needed to avoid bending the fuel level float arm.
• Place the module into a catch pan to drain.
• Remove the old tank seal (O-ring/gasket) from the tank opening by hand.

Step 8: Install the new seal and module

• Install the new fuel pump module tank seal (O-ring/gasket) onto the tank opening (make sure it sits flat and is not twisted).
• Lower the new module into the tank, guiding the float arm in without forcing it.
• Align the module/tank marks as originally positioned.

Step 9: Reinstall the lock ring and torque it

• Thread/install the lock ring by hand first to avoid cross-threading.
• Tighten using the fuel pump lock ring wrench (specialty).
• Torque to 67 Nm (49 ft-lbs).

Step 10: Reconnect fuel lines and electrical

• Push the fuel lines on until you feel/hear a solid click.
• Lightly tug each line by hand to confirm it’s locked.
• Reconnect the electrical connector until it clicks.

Step 11: Reinstall the service cover and rear seat

• Reinstall the service cover and screws using a Phillips screwdriver #2.
• Reinstall any trim clips with a trim clip removal tool (press them in straight).
• Reinstall the seat cushion: align the rear hooks (if equipped), then push down firmly to snap the front clips in.
• If seat bolts were removed, install them with a 12mm socket and torque to 37 Nm (27 ft-lbs).

---

✅ After Repair

• Reconnect the battery negative terminal using a 10mm socket. Torque to 5 Nm (44 in-lbs).
• Prime the fuel system: turn the key to ON (engine off) for 5 seconds, then OFF; repeat 3 times.
• Start the engine and let it idle for 2–3 minutes.
• Check carefully for fuel smell or seepage under the rear seat access area.
• If you had a check-engine light for fuel pressure, clear codes with a scan tool after confirming no leaks.

---

💰 DIY vs Shop Cost

Shop Cost: $650-$1,200 (parts + labor)

DIY Cost: $220-$650 (parts only)

You Save: $430-$550 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-3 hours.

---
