🔧 Sentra - Fuel Pump Replacement

On your Sentra, the fuel pump is part of an in-tank pump module that sits under the rear seat area. The job is mostly careful disassembly: depressurize the fuel system, open the access cover, swap the module, and reseal everything so there are no fuel vapor leaks.

Difficulty Level: Intermediate | Estimated Time: 2-3 hours

---

⚠️ Safety & Precautions

• ⚠️ Work outdoors or in a very well-ventilated area—fuel vapors are flammable.
• ⚠️ No smoking, no heat guns, no trouble lights with hot bulbs, and keep sparks away.
• ⚠️ Depressurize fuel pressure before disconnecting lines to prevent spray.
• ⚠️ Disconnect the negative battery cable to reduce spark risk.
• ⚠️ Clean dirt off the pump area before opening the tank to prevent contamination.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Fire extinguisher (Class B)
• Trim removal tool set
• Flathead screwdriver (medium)
• Phillips screwdriver #2
• Ratchet
• 10mm socket
• Needle-nose pliers
• Pick tool (small)
• Fuel pump lock ring wrench (specialty)
• Torque wrench (10-80 Nm range)
• Shop towels
• Parts cleaning brush
• Vacuum or compressed air blow gun

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Fuel pump module assembly - Qty: 1
• Fuel pump module tank seal (O-ring/gasket) - Qty: 1
• Access cover butyl sealant strip - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Open the fuel door and loosen the gas cap to help vent tank pressure.
• Disconnect the negative battery cable using a 10mm socket.
• Depressurize the fuel system before disconnecting lines (steps below).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Depressurize the fuel system

• Open the hood and locate the under-hood fuse/relay box.
• Remove the fuel pump fuse/relay (cover diagram typically labels it) using needle-nose pliers.
• Start the engine and let it run until it stalls; crank for 3-5 seconds more to bleed residual pressure.
• Turn ignition OFF and keep the fuse/relay out until reassembly is complete.

Step 2: Remove the rear seat bottom cushion

• From the rear passenger area, release the seat bottom cushion latches (front edge) using a trim removal tool set.
• Lift the seat bottom up and out; set it aside.

Step 3: Expose the fuel pump access cover

• Find the round/oval access cover in the floor under the seat.
• Vacuum and brush the area clean using a vacuum or compressed air blow gun and parts cleaning brush.
• Remove the access cover fasteners using a Phillips screwdriver #2 or 10mm socket (varies by cover).
• Carefully peel up the cover; use flathead screwdriver (medium) only as needed to avoid bending it.

Step 4: Disconnect electrical connector and fuel lines

• Unplug the fuel pump electrical connector by releasing the tab using a pick tool (small).
• Place shop towels around the fuel line connections to catch drips.
• Disconnect the quick-connect fuel line(s) by pressing the lock tabs and pulling straight off. Use needle-nose pliers only if needed to help press tabs (do not crush the connector).
• Tip: Pull, don’t twist—twisting can break fittings.

Step 5: Remove the fuel pump lock ring

• Mark the current lock ring position relative to the tank using a flathead screwdriver (medium) (light scratch mark) so you can align it during installation.
• Remove the lock ring using a fuel pump lock ring wrench (specialty). (This tool grips the ring so you can turn it without making sparks.)

Step 6: Remove the pump module

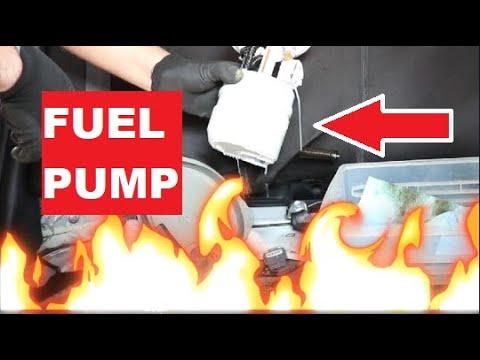

• Lift the module straight up slowly, guiding it out of the opening.
• Angle it as needed to clear the float arm (fuel level sender). Use shop towels to catch fuel.
• Remove and discard the old tank seal (O-ring/gasket) using a pick tool (small).

Step 7: Install the new tank seal and pump module

• Wipe the sealing surface clean using shop towels.
• Install the new tank seal (O-ring/gasket) in the groove, ensuring it lies flat (no twists).
• Lower the new pump module into place, guiding the float arm carefully.
• Align the module marks/locator tabs to the tank opening.

Step 8: Reinstall and tighten the lock ring

• Thread the lock ring on by hand first to avoid cross-threading.
• Tighten the lock ring using the fuel pump lock ring wrench (specialty).
• Torque to 68 Nm (50 ft-lbs) using a torque wrench (10-80 Nm range) (with the lock ring tool as an adapter if applicable).

Step 9: Reconnect fuel lines and electrical

• Reconnect the fuel line(s) until you feel/hear a positive click.
• Gently tug-test the line by hand to confirm it’s locked.
• Reconnect the electrical connector until it clicks.

Step 10: Seal the access cover and reinstall the seat

• Reinstall the access cover. If the butyl sealant is damaged, replace it with access cover butyl sealant strip.
• Install the access cover fasteners using a Phillips screwdriver #2 or 10mm socket (as equipped).
• Reinstall the rear seat bottom cushion and snap it back into the front latches using hand pressure.

Step 11: Restore power and prime the system

• Reinstall the fuel pump fuse/relay using needle-nose pliers.
• Reconnect the negative battery cable using a 10mm socket.
• Cycle ignition ON (engine OFF) for 5 seconds, then OFF for 5 seconds; repeat 3 times to prime.
• Start the engine and let it idle while you check for leaks.

---

✅ After Repair

• With the engine idling, inspect the pump top and fuel line connections for any seepage.
• Reinstall the gas cap and confirm there’s no fuel smell inside the cabin.
• If a check engine light appears, scan for codes and recheck connector engagement and line locks.

---

💰 DIY vs Shop Cost

Shop Cost: $650-$1,200 (parts + labor)

DIY Cost: $180-$450 (parts only)

You Save: $470-$750 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-3 hours.

---
