🔧 CX-9 - Fuel Pump Replacement

On your CX-9, the fuel pump is part of an in-tank fuel pump module (it sits inside the fuel tank). The job is mainly about relieving fuel pressure, opening the service access, disconnecting lines/connectors, and swapping the module without contaminating the tank.

Difficulty Level: Advanced | Estimated Time: 2.5-5.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Work outside or in a very well-ventilated area; fuel vapors are flammable.
• ⚠️ No smoking, no hot work lights, no grinding/sparks near the vehicle.
• ⚠️ Let the exhaust cool fully before starting.
• ⚠️ Disconnect the negative battery cable before opening the fuel system.
• ⚠️ Keep dirt out of the tank; contamination can ruin the new pump and injectors.
• ⚠️ Use only a non-sparking method on the lock ring (Mazda tool preferred).
• ⚠️ Have a fire extinguisher rated for flammable liquids nearby.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Nitrile gloves
• Safety glasses
• Fire extinguisher (Class B)
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 10mm socket
• 3/8" drive ratchet
• 3" extension (3/8")
• Trim removal tool set
• Phillips screwdriver
• Flat-blade screwdriver
• Fuel line disconnect tool set (specialty)
• Fuel pump lock ring wrench (specialty)
• Shop towels
• Drain pan
• Hand siphon pump (manual)
• Permanent marker
• Vacuum

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Fuel pump module assembly - Qty: 1
• Fuel pump module seal / O-ring - Qty: 1
• Optional: fuel line retaining clips - Qty: 1

---

📋 Before You Begin

• Park your CX-9 on level ground and set the parking brake.
• Chock the wheels using wheel chocks.
• Run the fuel level as low as possible (lighter tank = easier/safer).
• Open the fuel door and loosen the fuel cap to relieve tank vapor pressure.
• Plan for fuel spills: set a drain pan and keep shop towels ready.
• Know this tool: a fuel line disconnect tool set (specialty) is a small plastic/metal tool that releases the internal spring of a quick-connect fuel fitting.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the battery

• Use a 10mm socket and 3/8" drive ratchet to disconnect the negative battery cable and isolate it so it can’t spring back.

Step 2: Relieve fuel pressure (important)

• Remove the fuel pump fuse/relay (location depends on your CX-9’s fuse box layout).
• Start the engine and let it run until it stalls.
• Crank for 3–5 seconds one more time to bleed off the remaining pressure.
• Less pressure = less fuel spray.

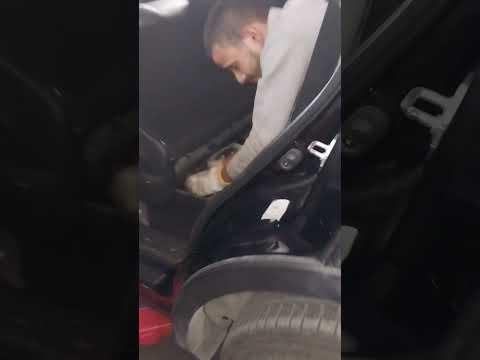

Step 3: Access the fuel pump service opening

• Move the rear seating area as needed to expose the access area.
• Use a trim removal tool set to carefully lift/remove trim pieces without breaking clips.
• Remove any access cover fasteners using a Phillips screwdriver or 10mm socket (depending on what your CX-9 has).
• Vacuum the area using a vacuum so no dirt falls into the tank.

Step 4: Disconnect the electrical connector

• Unplug the fuel pump module connector by releasing the lock tab using a flat-blade screwdriver (gentle pressure).
• Place shop towels around the lines to catch any drips.

Step 5: Disconnect fuel lines from the module

• Use the fuel line disconnect tool set (specialty) to release the quick-connect fitting(s).
• Pull the line straight off (don’t twist hard; it can damage the fitting).
• Direct any small fuel spill into a drain pan.

Step 6: Mark the module orientation

• Use a permanent marker to mark the fuel pump module position relative to the tank (alignment matters for float arm clearance and sealing).

Step 7: Remove the lock ring

• Use a fuel pump lock ring wrench (specialty) to loosen and remove the lock ring.
• Lift the ring off and set it aside clean.
• Do not use steel punch/hammer—spark risk.

Step 8: Remove the fuel pump module

• Carefully lift the module up while guiding the level float arm out of the opening.
• Keep the module tilted to avoid dumping fuel from the housing.
• Remove the old seal/O-ring from the tank opening using a flat-blade screwdriver (gently).

Step 9: Install the new seal and new module

• Install the new fuel pump module seal / O-ring onto the tank opening (make sure it sits flat and isn’t twisted).
• Lower the new module into the tank, guiding the float arm in without bending it.
• Align your marker marks so the module sits in the original orientation.

Step 10: Reinstall the lock ring

• Install the lock ring by hand first to avoid cross-threading/misalignment.
• Tighten using the fuel pump lock ring wrench (specialty) until fully seated.
• Torque to Mazda specification (lock ring torque varies by version; don’t guess).

Step 11: Reconnect fuel lines and electrical

• Reconnect the fuel line(s) until you feel/hear a click.
• Gently tug-test each line to confirm it’s locked.
• Reconnect the electrical connector until the lock tab clicks.

Step 12: Reinstall the access cover and trim

• Reinstall the access cover and fasteners using a Phillips screwdriver or 10mm socket.
• Reinstall trim using the trim removal tool set to guide clips into place.

Step 13: Restore power and prime the fuel system

• Reinstall the fuel pump fuse/relay.
• Reconnect the negative battery cable using a 10mm socket.
• Cycle ignition ON (engine off) for 5 seconds, then OFF for 5 seconds; repeat 3–4 times to prime the system.

---

✅ After Repair

• Start the engine and let it idle while you check for leaks at the fuel line connections and around the lock ring area.
• If you smell strong fuel odor, shut the engine off and re-check the seal and line connections.
• Clear any stored codes if a fuel pressure or EVAP code set during the repair (a scan tool may be needed).
• Test drive close to home first, then re-check for any dampness or fuel smell.

---

💰 DIY vs Shop Cost

Shop Cost: $900-$1,600 (parts + labor)

DIY Cost: $250-$800 (parts only)

You Save: $650-$800 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2.5-5.0 hours.

---
