🔧 Odyssey - Fuel Pump Replacement

On your Odyssey, the fuel pump is inside the fuel tank as a “module” (pump + level sender + housing). The job is usually done either through an interior service opening (best-case) or by lowering the fuel tank (more work). Because fuel is flammable, the most important part is relieving fuel pressure and preventing sparks.

Difficulty Level: Advanced | Estimated Time: 2-6 hours

---

⚠️ Safety & Precautions

• 🧯 Work outside or in a very well-ventilated area; no flames, no smoking, no hot work lights.
• ⚡ Disconnect the 12V battery negative terminal before opening the tank/pump area.
• ⛽ Relieve fuel pressure before disconnecting any fuel line, or fuel can spray.
• 🧤 Wear safety glasses and fuel-resistant gloves; keep rags and a drain pan ready.
• 🧹 Clean the area before opening the tank; dirt in the tank can damage the new pump.
• 🛑 If you smell heavy fuel vapors, stop and ventilate before continuing.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Fire extinguisher (Class B)
• Shop rags
• Drain pan (at least 2-gallon)
• 10mm socket
• 12mm socket
• 14mm socket
• 3/8" drive ratchet
• 3/8" drive extension set
• Torque wrench (3/8" drive, 10–80 ft-lb range)
• Phillips screwdriver #2
• Trim clip removal tool
• Small pick tool
• Brass drift punch set
• Small hammer
• Fuel line quick-disconnect tool set (specialty)
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Transmission jack (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Fuel pump module assembly - Qty: 1
• Fuel pump module tank seal O-ring - Qty: 1
• Fuel pump strainer (sock filter) - Qty: 1
• Fuel tank strap hardware (if corroded) - Qty: 1 set

---

📋 Before You Begin

• 🅿️ Park on level ground, set the parking brake, and chock the rear wheels with wheel chocks.
• ⛽ Try to run the tank low (under 1/4 tank). A full tank is heavy and messy.
• 🔍 Confirm access type: lift cargo-area/2nd-row floor carpeting and look for a round/oval metal access cover with screws.
• ⚡ Disconnect the battery: use a 10mm socket to remove the negative cable and isolate it so it can’t spring back.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Relieve fuel pressure

• Open the hood and remove the fuel pump fuse/relay (use your under-hood fuse box diagram and small pick tool).
• Start the engine and let it run until it stalls. Crank it 2–3 seconds more to bleed remaining pressure.
• Turn ignition OFF and keep the key/fob away from the vehicle.

Step 2: Decide which procedure you’ll use (access cover vs tank drop)

• Check under the rear floor/cargo area for a service cover using a trim clip removal tool and Phillips screwdriver #2.
• If you find a metal cover above the tank, follow Steps 3–8 (Access Cover Method).
• If there is no cover, follow Steps 9–16 (Fuel Tank Drop Method).

Step 3: Access Cover Method — remove interior trim to reach the cover

• Remove any floor trays/carpets using a trim clip removal tool.
• Remove the access cover screws with a Phillips screwdriver #2.
• Lift the cover and set it aside.

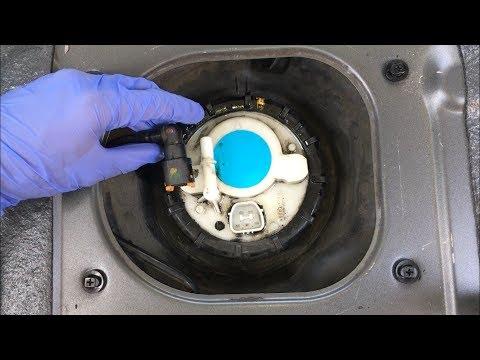

Step 4: Access Cover Method — clean and disconnect lines/connectors

• Blow/brush dirt away from the pump module top (keep debris out). Use shop rags.
• Unplug the fuel pump electrical connector by releasing the tab with a small pick tool.
• Place shop rags under the fuel line connection and disconnect the quick-connect using a fuel line quick-disconnect tool set (specialty).

Step 5: Access Cover Method — remove the lock ring

• Use a brass drift punch set and small hammer to tap the lock ring counterclockwise (brass helps avoid sparks).
• Lift the lock ring off and set it aside.
• Tap gently—do not deform the ring.

Step 6: Access Cover Method — remove the pump module

• Lift the module straight up carefully; tilt as needed to clear the float arm (fuel level arm).
• Let fuel drain into a drain pan.
• Remove the old seal O-ring from the tank opening with a small pick tool.

Step 7: Access Cover Method — install the new module and seal

• Install the new fuel pump module tank seal O-ring in the tank groove (do not reuse the old one).
• Lower the new module into the tank, keeping the float arm from snagging.
• Reinstall the lock ring and tighten it by tapping clockwise with the brass drift punch set and small hammer until it fully seats and the ring stops moving.

Step 8: Access Cover Method — reconnect and reassemble

• Reconnect the fuel line until you feel/hear it click; lightly tug to confirm it’s locked.
• Reconnect the electrical connector.
• Reinstall the service cover with a Phillips screwdriver #2, then reinstall carpeting/trim with the trim clip removal tool.

Step 9: Fuel Tank Drop Method — raise and support the vehicle

• Chock wheels with wheel chocks.
• Lift the rear with a floor jack (rated 3-ton minimum) and support with jack stands (rated 3-ton minimum).
• Keep the vehicle stable before you go underneath.

Step 10: Fuel Tank Drop Method — support the fuel tank

• Position a transmission jack (specialty) under the tank.
• Use shop rags to protect surfaces where needed.

Step 11: Fuel Tank Drop Method — disconnect filler/vent and electrical

• Disconnect the pump electrical connector(s) using a small pick tool.
• Disconnect fuel and vapor lines using a fuel line quick-disconnect tool set (specialty) and catch any fuel with a drain pan.

Step 12: Fuel Tank Drop Method — remove tank straps

• Remove strap bolts using a 12mm socket or 14mm socket (varies by hardware).
• Lower the tank slowly with the transmission jack (specialty), watching for any remaining hoses/wires.

Step 13: Fuel Tank Drop Method — remove the pump module

• With the tank safely down, clean the pump area using shop rags.
• Remove the lock ring using a brass drift punch set and small hammer.
• Remove the module and old seal O-ring using a small pick tool.

Step 14: Fuel Tank Drop Method — install the new module

• Install the new fuel pump module tank seal O-ring.
• Install the new module and seat the lock ring fully using the brass drift punch set and small hammer.

Step 15: Fuel Tank Drop Method — raise tank and reconnect everything

• Raise the tank with the transmission jack (specialty).
• Reinstall tank strap bolts using a 12mm socket or 14mm socket, then tighten with a torque wrench to the factory strap-bolt specification.
• Reconnect all fuel/vapor lines and electrical connectors; confirm each quick-connect is fully locked.

Step 16: Lower vehicle

• Lower the vehicle from jack stands (rated 3-ton minimum) using a floor jack (rated 3-ton minimum).
• If you removed any wheels during access, install lug nuts with a torque wrench: Torque to 127 Nm (94 ft-lbs).

---

✅ After Repair

• Reconnect the battery negative terminal using a 10mm socket.
• Prime the system: turn ignition ON for 5 seconds, OFF for 5 seconds, repeat 3 times (do not crank).
• Start the engine and inspect for leaks at the pump top and all line connections using safety glasses and shop rags.
• If you have a check engine light, read codes with a scan tool and address any evap/fuel pressure codes after confirming no leaks.

---

💰 DIY vs Shop Cost

Shop Cost: $900-$1,800 (parts + labor)

DIY Cost: $250-$800 (parts only)

You Save: $650-$1,000 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-5 hours.

---
