🔧 ProMaster - Fuel Pump Module Replacement

The fuel pump on your ProMaster is part of an in-tank fuel pump module. Replacing it usually requires safely lowering the fuel tank, swapping the module and seal, then reinstalling everything without damaging fuel lines or wiring.

Difficulty Level: Advanced | Estimated Time: 3-6 hours

Assumption: fuel tank must be lowered (no service access panel).

---

⚠️ Safety & Precautions

• ⚠️ Work outside or in a well-ventilated area—fuel vapors are extremely flammable.
• ⚠️ No smoking, flames, heaters, or grinding/sparks anywhere nearby.
• ⚠️ Relieve fuel pressure before disconnecting fuel lines to prevent spray.
• ⚠️ Disconnect the negative battery cable to prevent accidental sparks.
• ⚠️ Support the fuel tank with a jack before removing straps—do not let it drop.
• ⚠️ Use jack stands on solid points; never rely on a floor jack alone.
• ⚠️ Clean dirt from the pump area—debris in the tank can damage the new pump.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Fire extinguisher Class B
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Transmission jack (specialty)
• Metric socket set 8mm-18mm
• Ratchet 3/8"
• Breaker bar 1/2"
• Torque wrench 10-200 Nm
• Flat-blade screwdriver
• Trim/panel clip tool
• Pliers
• Pick tool
• Fuel line quick-disconnect tool set (specialty)
• Brass drift punch (specialty)
• Dead-blow hammer
• Shop rags
• Catch pan
• Hand siphon pump (specialty)
• OBD2 scan tool

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Fuel pump module assembly - Qty: 1
• Fuel pump module tank seal/O-ring - Qty: 1
• Fuel tank strap bolts - Qty: 2

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Reduce fuel level as low as possible—less fuel makes the tank much lighter.
• Use an OBD2 scan tool to check for stored fuel pump/fuel pressure codes and save them for reference.
• Disconnect the battery: use a 10mm socket to remove the negative terminal and isolate it so it can’t spring back.
• Relieve fuel pressure before opening any fuel line connections.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Relieve fuel system pressure

• Open the fuel filler door and loosen the gas cap to vent tank pressure.
• Locate the fuel feed line connection you’ll disconnect later, and place shop rags under it to catch any residual fuel.
• If your ProMaster has a fuel pump fuse/relay that’s accessible, remove it using pliers, then crank the engine a few seconds to bleed pressure.
• Expect a small spill even after depressurizing.

Step 2: Raise and support the van safely

• Lift the rear area enough to work under it using a floor jack (rated 3-ton minimum).
• Set the vehicle on jack stands (rated 3-ton minimum) at proper support points.
• Keep the floor jack (rated 3-ton minimum) lightly supporting as a backup.

Step 3: Support the fuel tank

• Position a transmission jack (specialty) under the center of the fuel tank.
• Use a flat board on the jack pad (if available) to spread the load and prevent tank damage.

Step 4: Disconnect electrical and EVAP connections at the tank

• Locate the tank wiring connector(s) and unplug them using a pick tool if the lock tab is stuck (a pick is a small hooked tool for releasing clips).
• Disconnect EVAP/vapor hoses by releasing clips with a trim/panel clip tool or flat-blade screwdriver.
• Cap/cover open lines with clean shop rags to keep dirt out.

Step 5: Disconnect the fuel line(s)

• Place a catch pan under the connection point.
• Use the fuel line quick-disconnect tool set (specialty) if the fitting requires it; otherwise release the quick-connect tabs by hand and pull straight off.
• Use shop rags to catch fuel drips.

Step 6: Remove the fuel tank straps and lower the tank

• Use a metric socket set 8mm-18mm with a ratchet 3/8" to remove the fuel tank strap bolts.
• Lower the tank slowly with the transmission jack (specialty).
• Stop lowering if anything is still attached, then disconnect remaining hoses/wiring using pliers and a pick tool.
• Torque to 55 Nm (41 ft-lbs) for tank strap bolts during reassembly.

Step 7: Clean the pump module area

• With the tank lowered enough to access the top, clean around the pump module with shop rags.
• Do not blow dirt into the tank opening.

Step 8: Remove the fuel pump module lock ring

• Unplug the module electrical connector if it’s on top of the module using a pick tool.
• Use a brass drift punch (specialty) and dead-blow hammer to tap the lock ring counterclockwise until it releases.
• A brass drift is a soft metal punch that reduces spark risk when striking metal rings.

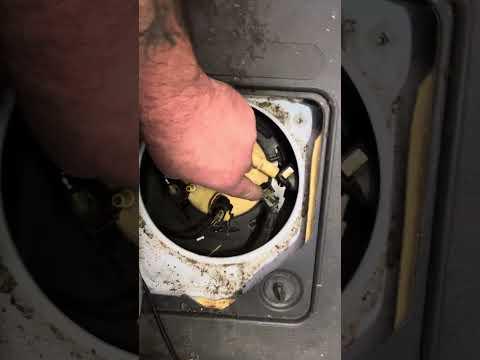

Step 9: Remove the fuel pump module and seal

• Lift the module out carefully—angle it as needed to clear the float arm.
• Remove the old seal/O-ring by hand and discard it.
• Drain the module into the catch pan and wipe the sealing surface with shop rags.

Step 10: Install the new seal and fuel pump module

• Install the new seal/O-ring into the tank groove by hand—make sure it sits flat and is not twisted.
• Carefully insert the new module, keeping the seal in place.
• Reinstall the lock ring and tap it clockwise using the brass drift punch (specialty) and dead-blow hammer until fully seated against its stops.
• If the seal pinches, it will leak.

Step 11: Raise the tank and reconnect lines

• Raise the tank into position using the transmission jack (specialty).
• Reconnect fuel lines until you hear/feel a positive click.
• Reconnect EVAP hoses and all electrical connectors.
• Reinstall the tank straps using a metric socket set 8mm-18mm and ratchet 3/8".
• Torque to 55 Nm (41 ft-lbs) for tank strap bolts.

Step 12: Reconnect the battery

• Reconnect the negative battery terminal using a 10mm socket.
• Torque to 6 Nm (53 in-lbs) for the battery terminal clamp.

---

✅ After Repair

• Prime the system: turn the key to ON (do not crank) for 3 seconds, then OFF for 10 seconds; repeat 3-4 times.
• Start the engine and let it idle for 2 minutes while checking underneath for leaks.
• Use an OBD2 scan tool to clear any fuel system codes and confirm none return.
• Reinstall and tighten the gas cap, then road test gently for 10-15 minutes and recheck for leaks.

---
