🔧 GLE - Fuel Pump Replacement

On your GLE, the fuel pump is inside the fuel tank as part of a pump/module assembly. Replacing it usually involves lifting the rear seat cushion, opening the service cover, disconnecting fuel/electrical lines, and swapping the module without dropping the tank.

Assumption: Your GLE has an in-cabin access cover under the rear seat (common on this model); if not, the tank must be lowered.

Difficulty Level: Advanced | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• ⚠️ Work outdoors or in a very well-ventilated area—fuel vapors are flammable.
• ⚠️ No smoking, sparks, hot work lights, or grinding anywhere nearby.
• ⚠️ Relieve fuel pressure before disconnecting lines to prevent spray.
• ⚠️ Disconnect the negative battery terminal to reduce fire risk.
• ⚠️ Keep a Class B fire extinguisher within reach.
• ⚠️ Clean dirt off the module area first—dirt in the tank can damage the new pump.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Class B fire extinguisher
• Plastic trim removal tool set
• Flathead screwdriver (medium)
• Torx T20 screwdriver
• Torx T25 screwdriver
• Ratchet
• 10mm socket
• 13mm socket
• Fuel line disconnect pick set
• Fuel pump lock ring tool (specialty)
• Torque wrench (5–60 Nm range)
• Shop towels
• Drain pan
• Non-sparking plastic scraper
• Paint marker
• Hand vacuum or small shop vacuum

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Fuel pump module assembly - Qty: 1
• Fuel pump module seal/O-ring - Qty: 1
• Lock ring (if damaged or deformed) - Qty: 1
• Dielectric grease (small packet) - Qty: 1
• Fuel-safe cleaner (for wiping area) - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and remove the key from the vehicle.
• Open the fuel door to help reduce tank vapor pressure.
• Relieve fuel pressure: remove the fuel pump fuse/relay, then crank/start until it stalls; crank 2–3 more seconds.
• Disconnect battery: use a 10mm socket to remove the negative terminal and isolate it so it can’t spring back.
• Vacuum the rear seat area so dirt doesn’t fall into the open tank.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the rear seat cushion

• Use a plastic trim removal tool set to pop the lower rear seat cushion clips free (pull up at the front edge).
• If bolts are present, remove them using a 13mm socket.
• Lift the cushion out and set it aside.

Step 2: Open the fuel pump service cover

• Locate the round/oval access cover under the seat area.
• Remove fasteners using a Torx T20 screwdriver or Torx T25 screwdriver (varies by cover).
• Use a plastic trim removal tool set to lift the cover without bending it.

Step 3: Clean the area thoroughly

• Use a hand vacuum or small shop vacuum to remove loose dirt around the module.
• Wipe the top of the module and surrounding area using shop towels.
• Clean first, open tank second.

Step 4: Disconnect the electrical connector

• Release the connector lock using a flathead screwdriver (medium) gently.
• Pull the connector straight off and set it aside.
• Apply a tiny amount of dielectric grease (small packet) later during reassembly (dielectric grease helps prevent corrosion in electrical connectors).

Step 5: Disconnect the fuel lines

• Place a drain pan under the area and wrap connections with shop towels.
• Use a fuel line disconnect pick set to lift the retaining clips (quick-connect fittings lock with internal tabs).
• Pull the line off slowly while holding a towel over it to catch any residual fuel.
• Don’t pry hard—fuel fittings crack easily.

Step 6: Mark the lock ring and module position

• Use a paint marker to draw alignment marks across the lock ring and the tank (helps you reinstall in the same orientation).

Step 7: Remove the lock ring

• Use a fuel pump lock ring tool (specialty) with a ratchet to loosen the ring.
• Lift the lock ring off and set it aside.
• Avoid hammer/chisel—spark and damage risk.

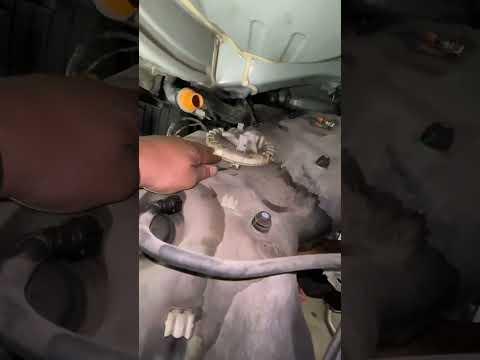

Step 8: Remove the fuel pump module

• Carefully lift the module upward; tilt as needed to clear the float arm (the float measures fuel level).
• Let fuel drain from the module into the drain pan.
• Remove the old seal/O-ring using a non-sparking plastic scraper.

Step 9: Install the new seal and module

• Lightly wipe the sealing surface using shop towels; it must be clean and smooth.
• Install the new fuel pump module seal/O-ring flat in its groove (no twists).
• Lower the new fuel pump module assembly into the tank, matching your paint marker alignment marks.

Step 10: Reinstall and tighten the lock ring

• Install the ring by hand first to avoid cross-threading.
• Use the fuel pump lock ring tool (specialty) with a torque wrench (5–60 Nm range) to tighten.
• Torque: Use the specification for your exact lock ring/module variant; if not available, tighten to the factory index marks and ensure the ring is fully seated evenly all the way around (do not over-tighten).

Step 11: Reconnect fuel lines and electrical

• Push the fuel lines on until they click; tug lightly to confirm they are locked.
• Reconnect the electrical connector until it locks.
• Wipe any spilled fuel using shop towels.

Step 12: Reinstall the service cover and seat cushion

• Reinstall the service cover and tighten fasteners using a Torx T20 screwdriver or Torx T25 screwdriver.
• Reinstall the rear seat cushion and press down to engage the clips.
• If equipped with bolts, install using a 13mm socket and snug firmly.

Step 13: Restore power and prime the fuel system

• Reconnect the battery negative terminal using a 10mm socket.
• Reinstall the fuel pump fuse/relay you removed.
• Key ON (engine OFF) for 10 seconds, then OFF for 10 seconds; repeat 3–4 times to prime the system.

---

✅ After Repair

• Start the engine and let it idle for 2–3 minutes.
• Check carefully for leaks at the pump seal area and both fuel line connections.
• Take a short test drive, then re-check for any fuel smell or seepage.
• If a check engine light appears, scan for codes and address any “fuel pressure” or “pump control” faults before driving far.

---

💰 DIY vs Shop Cost

Shop Cost: $900-$1,800 (parts + labor) (approx. ₹75,000-₹1,50,000)

DIY Cost: $250-$900 (parts only) (approx. ₹20,000-₹75,000)

You Save: $650-$900 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
