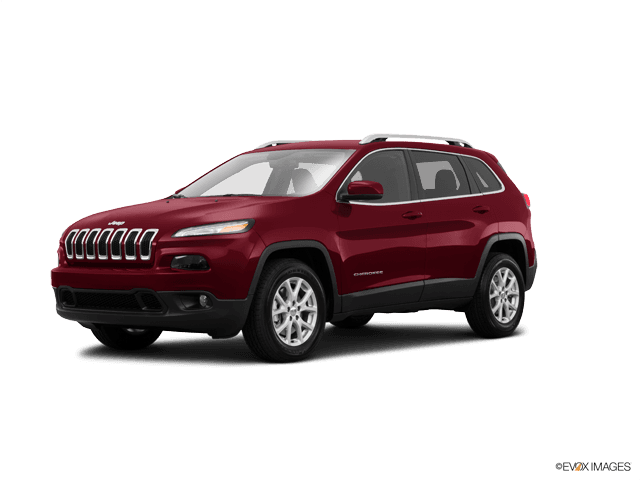

🔧 Cherokee - Fuel Pump Module Replacement

The fuel pump on your Cherokee is inside the fuel tank as part of a pump/sender “module.” Replacement involves safely depressurizing the fuel system, disconnecting fuel and electrical connections, and swapping the module with a new seal so it doesn’t leak fuel vapors.

Difficulty Level: Advanced | Estimated Time: 2-5 hours

---

⚠️ Safety & Precautions

• ⚠️ Work outside or in a very well-ventilated area; fuel vapors are flammable.
• ⚠️ No smoking, sparks, hot lights, or power tools that can arc near the open tank.
• ⚠️ Depressurize the fuel system before opening any fuel line.
• ⚠️ Disconnect the negative battery terminal before unplugging the pump wiring.
• ⚠️ Keep a Class B fire extinguisher nearby and wear safety glasses and fuel-resistant gloves.
• ⚠️ If you must drop the tank, support it with a transmission jack; a fuel-filled tank is heavy.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Fuel-resistant gloves
• Class B fire extinguisher
• Trim removal tool
• Flat-blade screwdriver
• Phillips screwdriver
• Pick tool set
• Needle-nose pliers
• 1/4" drive ratchet
• 3/8" drive ratchet
• Socket set 8mm-18mm
• Torx bit set T20-T30
• Torque wrench 10-100 Nm
• Fuel line disconnect tool set (specialty)
• Fuel pump lock ring tool (specialty)
• Shop towels
• Drain pan
• Marker pen
• OBD2 scan tool
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Transmission jack (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Fuel pump module assembly - Qty: 1
• Fuel pump module tank seal O-ring - Qty: 1
• Fuel pump lock ring - Qty: 1
• Fuel line quick-connect retainer clips - Qty: 1 set

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks at the rear wheels.
• If possible, drive until the tank is near 1/4 full to make the job safer and easier.
• Depressurize fuel pressure: remove the fuel pump fuse/relay, start the engine, and let it run until it stalls; crank 2 more seconds, then key OFF.
• Disconnect the battery: use a 10mm socket to remove the negative terminal and isolate it so it can’t spring back.
• Wipe/clean the area before opening the tank so dirt cannot fall inside.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Relieve fuel pressure and power down

• Use an OBD2 scan tool to check for any stored fuel pressure/pump codes and save them for reference.
• Use a socket set 8mm-18mm to open the under-hood fuse box and remove the fuel pump fuse/relay.
• Start the engine and let it stall, then turn the key OFF.

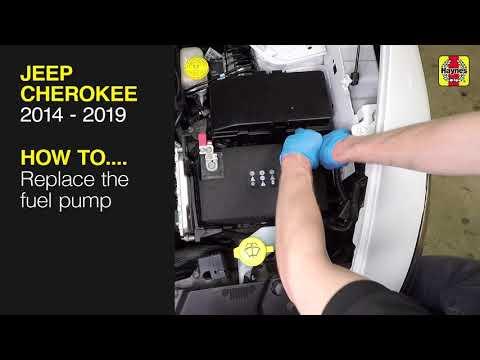

• Use a 10mm socket to disconnect the negative battery cable. Prevents sparks near fuel.

Step 2: Choose the correct access method

• Path A (Service access panel under rear seat): Continue to Step 3.
• Path B (No access panel): Skip to Step 9 to lower the fuel tank.

Step 3: Remove the rear seat cushion (Path A)

• Use a trim removal tool to release the front seat cushion retainers (pull upward at the front edge).
• If your cushion uses bolts, remove them with a socket set 8mm-18mm.
• Lift the cushion out and set it aside.

Step 4: Open the fuel pump service cover (Path A)

• Use a Phillips screwdriver or Torx bit set T20-T30 to remove the service cover fasteners.
• Peel back any sealer carefully using a pick tool set.
• Clean the area using shop towels so dirt can’t drop into the tank.

Step 5: Disconnect electrical connector and fuel lines (Path A)

• Unplug the pump electrical connector by releasing the lock tab using a pick tool set.
• Place a drain pan and shop towels under the connections.
• Disconnect the quick-connect fuel line(s) using a fuel line disconnect tool set (specialty) (this tool releases the internal spring clip without breaking the fitting).
• Cap/cover the open lines with clean shop towels to reduce vapor and contamination.

Step 6: Mark orientation and remove the lock ring (Path A)

• Use a marker pen to mark the module position relative to the tank.
• Remove the lock ring using a fuel pump lock ring tool (specialty) (it grips the ring evenly so you don’t crack it).
• Lift the lock ring off and set it aside.

Step 7: Remove the fuel pump module (Path A)

• Carefully lift the module out while guiding the float arm and strainer past the tank opening.
• Have a drain pan ready; the module will drip fuel.
• Remove the old tank seal O-ring from the tank opening using a pick tool set.

Step 8: Install the new module and seal (Path A)

• Install the new O-ring seal into the tank groove using your hands and fuel-resistant gloves. Do not twist the seal.
• Lower the new module in, aligning your marks, and ensure the seal stays seated.
• Install a new lock ring and tighten using the fuel pump lock ring tool (specialty) until fully seated/aligned to the stop marks.
• Reconnect fuel line(s) by pushing until they click; gently tug to confirm locked.
• Reconnect the electrical connector until the lock clicks.
• Reinstall the service cover using a Phillips screwdriver or Torx bit set T20-T30.
• Reinstall the rear seat cushion (reverse removal). If bolts were removed, tighten with a torque wrench 10-100 Nm to the specification for your seat fasteners.

Step 9: Lower the fuel tank (Path B)

• Raise and support the vehicle: use a floor jack (rated 3-ton minimum) and place it on jack stands (rated 3-ton minimum).
• Support the tank with a transmission jack (specialty).
• Remove any shields/undercovers using a socket set 8mm-18mm and Torx bit set T20-T30.
• Disconnect the filler neck/EVAP connections as equipped using needle-nose pliers and a flat-blade screwdriver.
• Disconnect the pump electrical connector(s) using a pick tool set.
• Disconnect fuel lines using the fuel line disconnect tool set (specialty).
• Remove tank strap bolts using a socket set 8mm-18mm, then slowly lower the tank on the transmission jack (specialty).

Step 10: Replace the module on the tank top (Path B)

• Clean the pump area with shop towels.
• Mark module orientation using a marker pen.
• Remove the lock ring using the fuel pump lock ring tool (specialty), remove the module, and replace the O-ring seal using a pick tool set.
• Install the new module, install a new lock ring, and tighten with the fuel pump lock ring tool (specialty) until fully seated/aligned to the stop marks.

Step 11: Reinstall the tank (Path B)

• Raise the tank into position using the transmission jack (specialty).
• Install the tank straps and start bolts by hand, then tighten with a torque wrench 10-100 Nm to the specification for your strap fasteners.
• Reconnect fuel lines, EVAP lines, and electrical connectors; confirm each connection is fully locked.
• Reinstall shields/undercovers using a socket set 8mm-18mm and Torx bit set T20-T30.
• Lower the vehicle from jack stands (rated 3-ton minimum) using the floor jack (rated 3-ton minimum).

---

✅ After Repair

• Reconnect the battery negative terminal using a 10mm socket.
• Reinstall the fuel pump fuse/relay using a socket set 8mm-18mm as needed for access.
• Prime the system: key ON for 3 seconds, key OFF for 10 seconds; repeat 3-4 times before cranking.
• Start the engine and inspect for leaks at the pump area and quick-connect fittings with a bright light.
• Use an OBD2 scan tool to clear any codes and re-check for returning faults.
• Road test 10-15 minutes, then re-check for fuel smell/leaks.

---

💰 DIY vs Shop Cost

Shop Cost: $900-$1,600 (parts + labor)

DIY Cost: $250-$700 (parts only)

You Save: $650-$900 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-5 hours.

---
