🔧 QX50 - Fuel Pump Replacement

The fuel pump sits inside the fuel tank and supplies pressurized fuel to the engine. On your QX50, the pump is serviced as an in-tank fuel pump module, typically accessed from inside the vehicle under the rear seat area.

Assumption: Your QX50 has an interior service access cover for the pump module (common on this platform).

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• ⚠️ Work in a well-ventilated area and keep all flames/sparks away (fuel vapors ignite easily).
• ⚠️ Relieve fuel pressure before disconnecting any fuel lines to prevent fuel spray.
• ⚠️ Disconnect the negative battery terminal to prevent accidental sparks.
• ⚠️ Wear safety glasses and fuel-resistant gloves; have rags ready for spills.
• ⚠️ Do not use power tools near an open fuel tank opening.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Fire extinguisher (Class B)
• 10mm socket
• 3/8" ratchet
• 3" extension (3/8")
• Torque wrench (5–100 Nm range)
• Trim removal tool
• Phillips screwdriver #2
• Flathead screwdriver (small)
• Fuel line disconnect pick set
• Fuel pump lock ring tool (specialty)
• Shop rags
• Non-sparking plastic scraper
• Marker or paint pen

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Fuel pump module assembly - Qty: 1
• Fuel pump module tank seal (O-ring/gasket) - Qty: 1
• Replacement fuel line retaining clips (if damaged) - Qty: 1
• Dielectric grease (small packet) - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and open a window for ventilation.
• Run the fuel level down if possible; a fuller tank makes spills more likely.
• Gather a small container for any fuel drips and lay shop rags around the work area.
• Know this term: the lock ring tool is a wrench that turns the pump’s retaining ring without making sparks or damaging it.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Relieve fuel pressure

• Open the hood.
• Remove the fuel pump fuse (or fuel pump relay) from the fuse box using a small flathead screwdriver to help lift it if needed.
• Start the engine and let it run until it stalls.
• Crank the engine for 3–5 seconds one more time to release leftover pressure.

Step 2: Disconnect the battery

• Use a 10mm socket and 3/8" ratchet to loosen the negative battery terminal clamp.
• Remove the negative cable and position it so it can’t spring back onto the battery post.

Step 3: Access the fuel pump service cover

• Move the front seats forward for space.
• Remove the rear seat bottom cushion using a trim removal tool (most cushions release from front clips with a firm upward pull).
• Locate the fuel pump service cover in the floor area.
• Remove the cover fasteners using a Phillips screwdriver #2 or 10mm socket (varies by cover style).

Step 4: Clean the area (very important)

• Use shop rags to wipe dirt away from the top of the pump module and the surrounding metal.
• Use a non-sparking plastic scraper to gently break loose any stuck dirt.
• Keep debris out of the tank.

Step 5: Disconnect the electrical connector

• Press the connector tab and unplug it by hand.
• Add a tiny amount of dielectric grease to the seal during reassembly (it helps prevent moisture issues).

Step 6: Disconnect the fuel lines

• Place shop rags around the fittings to catch fuel.
• Release the quick-connect fitting using a fuel line disconnect pick set to lift the plastic locking tabs if they’re stubborn.
• Pull the line straight off (don’t twist aggressively).
• Cap/cover the open line ends with a clean rag to reduce fumes and dirt entry.

Step 7: Mark the pump module orientation

• Use a marker or paint pen to mark the relationship between the pump module top and the tank (alignment helps it seat correctly).

Step 8: Remove the lock ring

• Install the fuel pump lock ring tool (specialty) onto the retaining ring.
• Turn the lock ring counterclockwise to remove it.
• Lift the lock ring off and set it aside.

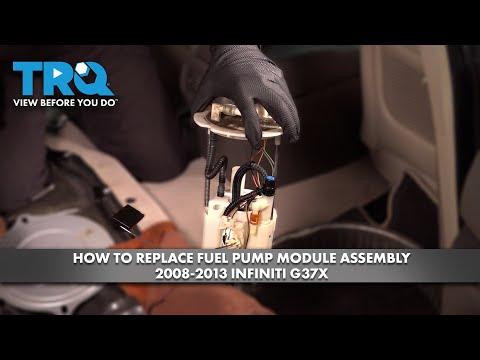

Step 9: Remove the fuel pump module

• Carefully lift the module straight up.
• Angle it as needed to clear the float arm (the float is the fuel level sensor; it’s delicate).
• Have shop rags ready—fuel will drip from the module.

Step 10: Replace the tank seal (O-ring)

• Remove the old seal from the tank opening using a non-sparking plastic scraper.
• Install the new seal and make sure it sits flat with no twists.

Step 11: Install the new fuel pump module

• Lower the new module into the tank carefully, guiding the float arm in without bending it.
• Align the module using your paint-pen marks.

Step 12: Reinstall and torque the lock ring

• Install the lock ring by hand first to avoid cross-threading.
• Use the fuel pump lock ring tool (specialty) to tighten it.
• Torque to 78 Nm (58 ft-lb).

Step 13: Reconnect fuel lines and electrical connector

• Push each fuel line on until you feel/hear a click.
• Gently tug-test the lines by hand to confirm they are locked.
• Reconnect the electrical connector until it clicks.

Step 14: Reinstall the service cover and rear seat

• Reinstall the service cover using a Phillips screwdriver #2 or 10mm socket (match what you removed).
• Reinstall the rear seat bottom cushion by aligning the rear hooks and pushing down to snap the front clips in.

Step 15: Reinstall fuse/relay and reconnect battery

• Reinstall the fuel pump fuse/relay by hand.
• Reconnect the negative battery terminal using a 10mm socket and 3/8" ratchet.

---

✅ After Repair

• Cycle the ignition to prime the system: key ON for 5 seconds, OFF for 5 seconds, repeat 3 times.
• Start the engine and let it idle for 2–3 minutes.
• Inspect for leaks at the fuel line connections and around the lock ring area (sniff + visual check).
• If you smell strong fuel inside the cabin, shut off the engine and recheck the seal and line locks.
• Take a short test drive, then recheck for leaks again.

---

💰 DIY vs Shop Cost

Shop Cost: $900-$1,600 (parts + labor)

DIY Cost: $250-$750 (parts only)

You Save: $650-$850 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
