🔧 Pilot - Fuel Pump Replacement

On your Pilot, the fuel pump is part of an in-tank pump module that supplies pressurized fuel to the engine. Replacement usually involves relieving fuel pressure, accessing the pump through an interior service opening, swapping the module and seal, then checking carefully for leaks.

Difficulty Level: Advanced | Estimated Time: 2-4 hours

Assumption: your Pilot uses an in-tank pump module accessed under the 2nd-row seat/service cover.

---

⚠️ Safety & Precautions

• ⚠️ Work outdoors or in a very well-ventilated area; fuel vapors ignite easily.
• ⚠️ No smoking, flames, hot lights, or sparking tools near the vehicle.
• ⚠️ Relieve fuel pressure before disconnecting any fuel line to prevent spray.
• ⚠️ Disconnect the negative battery cable before opening the tank.
• ⚠️ Keep a Class B fire extinguisher nearby and wear safety glasses and fuel-resistant gloves.
• ⚠️ Clean around the pump opening; dirt in the tank can damage injectors.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 12mm socket
• 3/8" drive ratchet
• 3/8" drive torque wrench (10–80 Nm range)
• Trim removal tool set
• Phillips screwdriver #2
• Flathead screwdriver (small)
• Pick tool (small)
• Fuel line quick-disconnect tool set (specialty)
• Brass punch set (specialty)
• Small hammer
• Needle-nose pliers
• Shop vacuum
• Clean drain pan (at least 2-gallon)
• Clean shop towels
• Painter’s tape and marker
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Fuel pump module assembly (in-tank) - Qty: 1
• Fuel pump module tank seal/O-ring - Qty: 1
• Fuel pump lock ring - Qty: 1 (recommended)
• Dielectric grease (small packet) - Qty: 1 (optional)

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Keep windows open for ventilation.
• Reduce fuel level if possible; a near-empty tank is lighter and spills less.
• Have a place ready to set the fuel pump module (use a clean drain pan).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Relieve fuel pressure

• Open the hood.
• Use a 10mm socket to loosen the battery negative terminal and remove the negative cable from the battery post. Torque to 5 Nm (44 in-lbs) on reassembly.
• Re-connect the negative cable temporarily so the engine can run while you depressurize (you’ll disconnect again right after).
• Pull the fuel pump fuse/relay from the under-hood fuse/relay box (use the fuse puller or needle-nose pliers carefully).
• Start the engine and let it run until it stalls, then crank for 3 seconds to relieve any remaining pressure.
• Turn ignition OFF, then disconnect the negative battery cable again using the 10mm socket.

Step 2: Access the fuel pump service cover

• Move the 2nd-row seat(s) forward as needed.
• Use a trim removal tool set to lift/remove any small trim pieces or carpet flap covering the service area.
• Use a Phillips screwdriver #2 or 10mm socket (varies by cover) to remove the service cover fasteners, then lift the cover off.
• Use a shop vacuum to remove all dust around the pump area.
• Cleanliness here prevents future fuel system damage.

Step 3: Disconnect electrical connector and fuel lines

• Unplug the fuel pump electrical connector by releasing the lock tab with a pick tool (small), then pulling straight off.
• Place clean shop towels around the fuel line connection to catch drips.
• Disconnect the fuel line quick-connector:
  • A “quick-connect” is a snap-on fitting that locks onto the line; it must be released before pulling off.
  • Use a fuel line quick-disconnect tool set (specialty) if needed, then pull the line off straight.
• Cap/cover the open line with a clean towel to keep dirt out.

Step 4: Mark orientation and remove the lock ring

• Use painter’s tape and marker to mark the pump module position relative to the tank (helps align the new one the same way).
• Remove the lock ring:
  • Use a brass punch set (specialty) and small hammer to tap the lock ring counterclockwise until it releases.
  • Brass is used because it’s less likely to spark than steel.
• Lift the lock ring off and set it aside (replace it if you’re installing a new one).

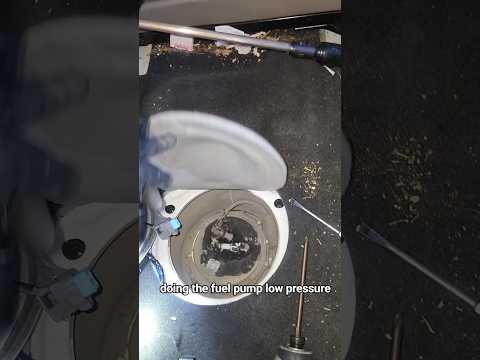

Step 5: Remove the fuel pump module

• Carefully lift the pump module up and out of the tank opening.
• Angle it as needed to clear the fuel level float arm and reservoir.
• Let fuel drain from the module into a clean drain pan.
• Remove and discard the old tank seal/O-ring.

Step 6: Install the new seal and new fuel pump module

• Wipe the tank sealing surface with clean shop towels. Do not let debris fall into the tank.
• Install the new tank seal/O-ring in the groove (make sure it sits flat and is not twisted).
• If the electrical connector seal looks dry, apply a tiny amount of dielectric grease to the connector seal only (optional).
• Lower the new pump module into the tank, keeping the float arm from snagging.
• Align the module using your tape marks.

Step 7: Reinstall and lock the ring

• Install the lock ring.
• Use the brass punch set (specialty) and small hammer to tap the lock ring clockwise until fully seated at its stops.
• Fully seated ring prevents fuel vapor leaks.

Step 8: Reconnect fuel line and electrical connector

• Push the fuel line quick-connector on until it clicks and locks.
• Gently tug the line to confirm it’s locked (do not yank).
• Plug in the electrical connector until it clicks.

Step 9: Reinstall the service cover and interior trim

• Reinstall the service cover and fasteners using a Phillips screwdriver #2 or 10mm socket.
• Reinstall carpet/trim using the trim removal tool set as needed.

Step 10: Restore power, prime the system, and check for leaks

• Reinstall the fuel pump fuse/relay in the under-hood box.
• Reconnect the battery negative cable using a 10mm socket. Torque to 5 Nm (44 in-lbs).
• Prime the fuel system:
  • Turn ignition ON (do not start) for 5 seconds, then OFF.
  • Repeat 3 times to build fuel pressure.
• Start the engine and let it idle.
• Check for leaks at the pump top and fuel line connection using a bright light (no open flame).

---

✅ After Repair

• Test drive for 10-15 minutes and re-check for any fuel smell or dampness under the service cover.
• If the engine cranks longer than normal at first, repeat the key ON/OFF prime cycle 2-3 more times.
• If a check engine light appears, a scan tool may be needed to read/clear codes after verifying there are no leaks.

---

💰 DIY vs Shop Cost

Shop Cost: $800-$1,400 (parts + labor)

DIY Cost: $250-$650 (parts only)

You Save: $550-$750 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
