🔧 Express 3500 - Fuel Pump Replacement

The fuel pump on your Express 3500 is part of an in-tank fuel pump module. Replacing it means safely lowering the fuel tank, swapping the module (with a new seal), then reinstalling the tank and priming the system.

Difficulty Level: Advanced | Estimated Time: 3-6 hours

Assumption: standard U.S. Express 3500 in-tank pump module; torque specs listed are commonly used for this platform—use OEM specs if you have them.

---

⚠️ Safety & Precautions

• ⚠️ Work outdoors or in a very well-ventilated area—fuel vapors are highly flammable.
• ⚠️ No smoking, sparks, heat guns, or drop lights with hot bulbs.
• ⚠️ Support the van with jack stands—never rely on a floor jack alone.
• ⚠️ Fuel may spray when lines are opened—wear safety glasses and gloves.
• ⚠️ Disconnect the negative battery cable before unplugging tank/pump wiring.
• ⚠️ If the tank is more than 1/4 full, it will be much heavier—reduce fuel level first if possible.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• Fire extinguisher (Class B)
• Socket set (8mm-21mm)
• Ratchet (3/8")
• Breaker bar (1/2")
• Torque wrench (10-150 ft-lbs)
• Flat trim tool
• Fuel line quick-disconnect tool set (3/8" and 1/2")
• Drain pan (at least 3 gallons)
• Shop rags
• Plastic/brass punch (non-sparking)
• Hammer (16 oz)
• Fuel tank support board (2x6 wood, ~24")
• Permanent marker

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Fuel pump module assembly - Qty: 1
• Fuel pump module tank seal/O-ring - Qty: 1
• Fuel tank strap bolts (optional if rusty) - Qty: 2-4
• Fuel line retainer clips (optional, if damaged) - Qty: 1-3

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the front wheels.
• Open the fuel door and loosen the gas cap to vent tank pressure.
• Relieve fuel pressure before disconnecting any fuel lines.
• Plan a safe place to set the tank down once it’s lowered.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Relieve fuel system pressure

• Use the socket set (8mm-21mm) and ratchet (3/8") to remove the underhood fuse/relay box cover.
• Remove the fuel pump relay (or fuel pump fuse) using the flat trim tool.
• Start the engine and let it run until it stalls.
• Crank for 3-5 seconds to relieve any remaining pressure, then turn key OFF.
• Reinstall the relay/fuse later during reassembly.

Step 2: Disconnect the battery

• Use the socket set (8mm-21mm) and ratchet (3/8") to disconnect the negative battery cable.
• Tuck the cable aside so it can’t spring back to the terminal.

Step 3: Raise and support the van

• Use the floor jack (rated 3-ton minimum) to lift the rear at approved lift points.
• Set it securely on jack stands (rated 3-ton minimum).
• Give the van a careful shake test before getting underneath.

Step 4: Support the fuel tank

• Place the fuel tank support board (2x6 wood, ~24") on the pad of the floor jack (rated 3-ton minimum).
• Jack up gently until the board contacts the bottom of the fuel tank and supports it.
• The board prevents tank damage.

Step 5: Disconnect the filler neck and vent connections

• Position a drain pan (at least 3 gallons) and keep shop rags handy.
• Use the socket set (8mm-21mm) and ratchet (3/8") to loosen the hose clamps at the filler neck/vent hoses (as equipped).
• Use the flat trim tool to carefully help slide hoses off if they’re stuck (don’t gouge the plastic fittings).

Step 6: Disconnect the fuel lines and electrical connector at the tank

• Locate the fuel line quick-connect fittings on top/front area of the tank.
• Use the fuel line quick-disconnect tool set (3/8" and 1/2") to separate the fuel supply/return lines (a quick-disconnect tool slides into the fitting to release internal spring fingers).
• Catch drips in the drain pan (at least 3 gallons) and wipe with shop rags.
• Disconnect the pump/sender wiring connector by hand; use the flat trim tool only if needed to release the lock tab.
• Mark any similar-looking lines with a permanent marker so they go back correctly.

Step 7: Remove the fuel tank straps

• Keep the tank supported with the floor jack (rated 3-ton minimum).
• Use the socket set (8mm-21mm), breaker bar (1/2"), and ratchet (3/8") to remove the fuel tank strap bolts.
• Slowly lower the tank a few inches with the floor jack (rated 3-ton minimum) and check for any remaining hoses/wires.
• If anything is still connected, raise the tank slightly and disconnect it before continuing.

Step 8: Lower the tank enough to access the pump module

• Lower the tank to a comfortable working height using the floor jack (rated 3-ton minimum).
• Do not put strain on plastic EVAP lines; they can crack if bent too far.

Step 9: Clean the area around the fuel pump lock ring

• Use shop rags to wipe dirt off the top of the tank around the module.
• Keeping dirt out prevents injector damage.

Step 10: Remove the lock ring and pump module

• Use the plastic/brass punch (non-sparking) and hammer (16 oz) to tap the lock ring counterclockwise until it releases.
• Lift the module out carefully—angle it as needed to clear the float arm.
• Let fuel drain from the module into the drain pan (at least 3 gallons).
• Remove and discard the old tank seal/O-ring by hand.

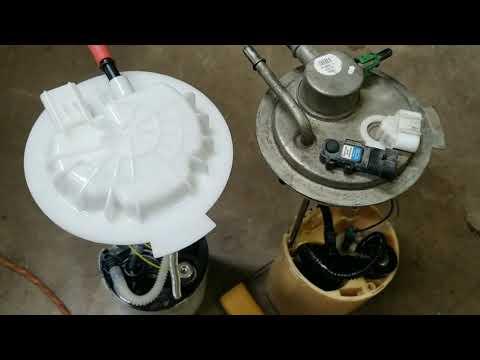

Step 11: Install the new seal and fuel pump module

• Install the new Fuel pump module tank seal/O-ring into the tank groove by hand.
• Lower the new Fuel pump module assembly into the tank, guiding the float arm in gently.
• Reinstall the lock ring and use the plastic/brass punch (non-sparking) and hammer (16 oz) to tap it clockwise until fully seated/locked.

Step 12: Reinstall the tank

• Raise the tank with the floor jack (rated 3-ton minimum) and fuel tank support board (2x6 wood, ~24").
• Reconnect the electrical connector by hand until it clicks.
• Reconnect fuel lines by hand until they click/lock; tug lightly to confirm they’re secure.
• Reconnect filler and vent hoses and tighten clamps using the socket set (8mm-21mm) and ratchet (3/8").
• Reinstall tank straps and bolts using the socket set (8mm-21mm) and torque wrench (10-150 ft-lbs).
• Torque to 34 N·m (25 ft-lbs) for fuel tank strap bolts.

Step 13: Finish up underhood and lower the van

• Reinstall the fuel pump relay/fuse using the flat trim tool if needed.
• Reconnect the negative battery cable using the socket set (8mm-21mm) and ratchet (3/8").
• Use the floor jack (rated 3-ton minimum) to lift slightly, remove jack stands (rated 3-ton minimum), and lower the van.

---

✅ After Repair

• Turn key to ON (engine OFF) for 5 seconds, then OFF for 5 seconds. Repeat 3-4 times to prime the system.
• Start the engine and let it idle for 2 minutes.
• Check carefully for leaks at the tank fittings and fuel lines.
• Test drive 5-10 minutes, then recheck for leaks and fuel smell.
• If the fuel gauge reads wrong, recheck the module connector and lock ring seating.

---

💰 DIY vs Shop Cost

Shop Cost: $900-$1,600 (parts + labor)

DIY Cost: $250-$650 (parts only)

You Save: $650-$950 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-6 hours.

---
