🔧 Sentra - Fuel Pump Replacement

On your Sentra, the fuel pump is part of an in-tank fuel pump module (it also carries the fuel level sender). Replacement is done from inside the car under the rear seat by removing an access cover, disconnecting the fuel line/electrical connector, and swapping the module with a new seal.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

Assumption: Stock in-tank fuel pump module accessed under rear seat.

---

⚠️ Safety & Precautions

• ⚠️ Work outside or in a well-ventilated area; fuel vapors are flammable.
• ⚠️ No smoking, sparks, heat guns, or incandescent work lights near the car.
• ⚠️ Relieve fuel pressure before opening the system to prevent a fuel spray.
• ⚠️ Disconnect the negative battery cable to reduce spark risk.
• ⚠️ Keep a class B fire extinguisher nearby and wipe spills immediately.
• ⚠️ Do not reuse the old fuel pump seal; leaks and fuel smell can result.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" ratchet
• 3" extension for ratchet
• Phillips screwdriver #2
• Flat trim tool
• Needle-nose pliers
• Small pick tool
• Fuel line disconnect pliers (specialty)
• Fuel pump lock ring wrench (specialty)
• Shop towels
• Drain pan
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Fuel pump module assembly (in-tank) - Qty: 1
• Fuel pump module tank seal / O-ring - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and open the windows for ventilation.
• Have a drain pan and towels ready; a small amount of fuel will spill.
• Relieve fuel pressure: remove the fuel pump fuse/relay, then start and let the engine run until it stalls; crank for 2–3 seconds to finish bleeding pressure.
• Disconnect the negative battery cable using a 10mm socket.
• A “lock ring” is the big threaded ring that holds the module to the tank.
• A “quick-connect” is a fuel line fitting that releases with tabs.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the rear seat cushion

• Slide your fingers under the front edge of the rear seat cushion and pull up firmly to pop the retaining clips.
• If equipped with bolts, remove them using a 10mm socket and 1/4" ratchet.
• Lift the cushion out and set it aside.

Step 2: Remove the fuel pump access cover

• Locate the round/oval access cover on the floor under the seat.
• Remove the cover fasteners using a Phillips screwdriver #2 or 10mm socket (varies by cover).
• Use a flat trim tool to gently lift the cover.
• Clean dirt around the opening using shop towels so debris doesn’t fall into the tank.

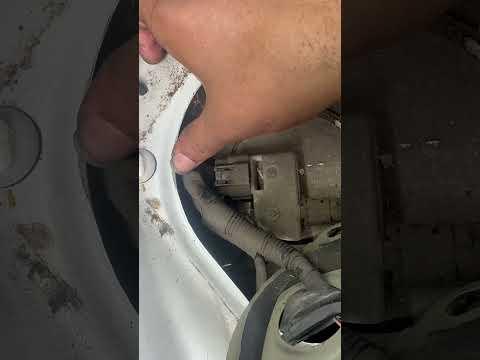

Step 3: Disconnect the electrical connector

• Press the connector tab and unplug it from the fuel pump module.
• If the tab is stubborn, use a small pick tool carefully to lift the lock. Don’t break it.

Step 4: Disconnect the fuel line(s)

• Place a drain pan and shop towels under the connection.
• Release the quick-connect fitting:
  • Squeeze the connector tabs using fuel line disconnect pliers (specialty), then pull the line straight off.
  • If it uses a colored safety clip, remove the clip first using needle-nose pliers.
• Cap/cover the open line with a clean towel to reduce fumes.

Step 5: Remove the fuel pump lock ring

• Mark the lock ring position relative to the tank with a small scratch or marker so you can line it back up.
• Use a fuel pump lock ring wrench (specialty) to loosen and remove the lock ring.
• Lift the ring off and set it aside.

Step 6: Remove the fuel pump module

• Lift the module straight up slowly. Tilt as needed to clear the fuel level float arm.
• Let fuel drain from the module into the drain pan.
• Remove the old tank seal/O-ring from the tank opening using a small pick tool.
• Don’t drop dirt into the tank.

Step 7: Install the new seal and module

• Install the new tank seal/O-ring into the groove on the tank opening.
• Lower the new module into the tank, guiding the float arm in without bending it.
• Make sure the module’s alignment tabs/index marks seat correctly.

Step 8: Reinstall and tighten the lock ring

• Install the lock ring by hand first to avoid cross-threading.
• Tighten using the fuel pump lock ring wrench (specialty) until the ring aligns to your marks and the module is fully seated.

Step 9: Reconnect fuel line(s) and electrical connector

• Push the fuel line on until it clicks; then tug lightly to confirm it’s locked.
• Reinstall any safety clip using needle-nose pliers (if equipped).
• Reconnect the electrical connector until it clicks.

Step 10: Reinstall access cover and rear seat

• Reinstall the access cover fasteners using a Phillips screwdriver #2 or 10mm socket.
• Reinstall the rear seat cushion by pushing it down to snap the clips in place.

Step 11: Restore power and prime the fuel system

• Reconnect the negative battery cable using a 10mm socket.
• Reinstall the fuel pump fuse/relay.
• Prime: turn ignition to ON (do not start) for 5 seconds, then OFF for 5 seconds; repeat 3 times.

---

✅ After Repair

• Start the engine and let it idle for 1–2 minutes.
• Check carefully for fuel leaks at the module top and fuel line connection (use a flashlight, not a hot bulb light).
• If you smell fuel inside, shut off engine and recheck the lock ring seating and seal.
• Road test 10 minutes, then recheck for any fuel smell/leaks again.

---

💰 DIY vs Shop Cost

Shop Cost: $650-$1,200 (parts + labor)

DIY Cost: $180-$450 (parts only)

You Save: $470-$750 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
