🔧 Sierra 1500 - Fuel Pump Replacement

On your Sierra 1500, the fuel pump is part of an in-tank fuel pump module. Replacement means safely relieving fuel pressure, accessing the top of the tank (either by lifting/removing the bed or lowering the fuel tank), swapping the module and seal, then verifying there are no leaks.

Difficulty Level: Advanced | Estimated Time: 3-6 hours

---

⚠️ Safety & Precautions

• ⚠️ Fuel vapors ignite easily: work outdoors or in a very well-ventilated area; no smoking, flames, or hot work lights.
• ⚠️ Mild-hybrid system: disconnect the 12V battery and disable the 48V system service disconnect before touching fuel pump wiring.
• ⚠️ Relieve fuel pressure before disconnecting lines to avoid fuel spray.
• ⚠️ Support the truck and/or tank safely: never rely on a floor jack alone; use jack stands.
• ⚠️ Keep dirt out of the tank: clean the pump area before opening the tank.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Fire extinguisher Class B
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Socket set with ratchet (1/2")
• Socket set with ratchet (3/8")
• 10mm socket
• 13mm socket
• 15mm socket
• 18mm socket
• Torx T15 screwdriver
• Flat-blade screwdriver
• Torque wrench (10-200 Nm range)
• Fuel line quick-disconnect tool set (3/8" and 1/2")
• Pliers (hose clamp)
• Brass punch
• Dead-blow mallet
• Fuel pump lock ring tool (specialty)
• Transmission jack (specialty)
• Drain pan (fuel-safe)
• Shop towels

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• In-tank fuel pump module assembly - Qty: 1
• Fuel pump module tank seal (O-ring) - Qty: 1
• Fuel pump lock ring - Qty: 1
• Fuel line retaining clips - Qty: 1 set

---

📋 Before You Begin

• Work with the fuel level as low as possible (1/8 tank or less).
• Park on level ground and chock the wheels.
• Relieve fuel pressure before disconnecting any fuel line.
• Disconnect 12V battery negative with a 10mm socket.
• Disable the 48V mild-hybrid system using the 48V service disconnect under/near the rear seat area before touching fuel pump wiring. If you want, tell me what badge your truck has (eAssist or not) and I’ll point you to the exact disconnect location.
• Pick your access method: Bed lift/removal (often easier) or tank drop (no bed handling).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Relieve fuel system pressure

• Open the fuel door and loosen the gas cap to release tank vapor pressure.
• In the underhood fuse block, remove the fuel pump power (fuel pump relay/fuse). Use a fuse puller or needle-nose pliers.
• Start the engine and let it run until it stalls. Crank again for 2-3 seconds to ensure pressure is bled down.
• Turn ignition OFF and reinstall the relay/fuse later during reassembly.

Step 2: Disable power (12V and 48V)

• Disconnect the 12V battery negative cable using a 10mm socket.
• Disable the 48V system service disconnect before touching the fuel pump connector. Wait a few minutes before unplugging modules.

Step 3: Choose your access method

• Method A (Recommended for many DIYers): Lift/remove the bed to access the pump from the top.
• Method B: Lower the fuel tank.

Step 4A (Method A): Remove tail lamps and bed harness connections

• Remove both tail lamps using a Torx T15 screwdriver, then unplug the lamp connectors by hand.
• Disconnect the bed wiring harness connectors near the rear frame area (press the lock tabs by hand or use a flat-blade screwdriver gently).

Step 5A (Method A): Disconnect the fuel filler neck from the bed

• At the fuel door area, remove the filler neck screws using a socket set as equipped (some use 10mm socket).
• Make sure the filler neck can move with the bed when lifted.

Step 6A (Method A): Remove bed bolts and lift the bed

• Remove the bed mounting bolts using an 18mm socket.
• With 2-4 helpers, lift the bed up and back enough to access the fuel pump area (or remove it fully). Cardboard protects paint at contact points.
• When reinstalling bed bolts later: Torque to 74 Nm (55 ft-lbs).

Step 4B (Method B): Raise the truck and support the fuel tank

• Raise the rear of the truck using a floor jack (rated 3-ton minimum) and support it with jack stands (rated 3-ton minimum).
• Position a transmission jack (specialty) under the fuel tank with a wood pad (to spread the load).

Step 5B (Method B): Disconnect filler/vent hoses and connectors

• Loosen/remove hose clamps and disconnect filler and vent hoses using pliers (hose clamp) and a flat-blade screwdriver as needed.
• Unplug the fuel pump electrical connector (lock tab by hand; use flat-blade screwdriver gently if stuck).
• Disconnect fuel lines using the fuel line quick-disconnect tool set (3/8" and 1/2"). (A quick-disconnect tool releases the spring clip inside the fitting.)

Step 6B (Method B): Remove tank straps and lower the tank

• Remove/loosen fuel tank strap bolts using a 15mm socket.
• Lower the tank slowly with the transmission jack (specialty), watching for any hoses or connectors still attached.
• When reinstalling tank strap bolts later: Torque to 25 Nm (18 ft-lbs).

Step 7: Clean the pump area before opening the tank

• Clean dirt from the top of the tank and around the pump lock ring using shop towels.
• Keep debris out of the tank opening.

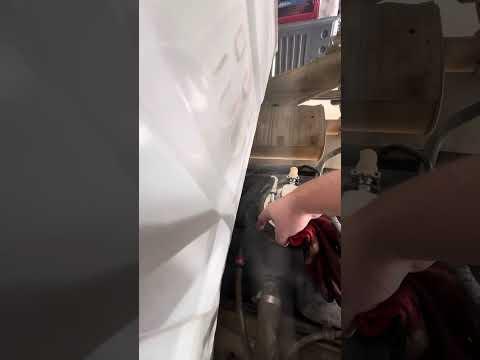

Step 8: Disconnect lines and electrical at the pump module (top of tank)

• Disconnect the fuel feed/return/vapor lines using the fuel line quick-disconnect tool set (3/8" and 1/2").
• Unplug the fuel pump electrical connector by hand.
• Have a drain pan (fuel-safe) ready for any fuel drips.

Step 9: Remove the fuel pump lock ring and module

• Remove the lock ring using a fuel pump lock ring tool (specialty).
• If you must tap it, use a brass punch and dead-blow mallet (brass reduces spark risk).
• Lift the module out slowly, angling it to clear the float arm without bending it.
• Remove the old tank seal (O-ring) by hand.

Step 10: Install the new seal and fuel pump module

• Install the new fuel pump module tank seal (O-ring) into the tank groove by hand.
• Insert the new fuel pump module carefully, making sure the seal stays seated and the module indexes correctly.
• Install the new fuel pump lock ring and tighten it fully using the fuel pump lock ring tool (specialty) until it locks into its stops.

Step 11: Reconnect lines/connector and reassemble (bed or tank)

• Reconnect fuel lines until they click; gently tug by hand to confirm they are locked.
• Reconnect the fuel pump electrical connector.
• Method A: Reinstall bed, harnesses, filler neck screws, and tail lamps using your socket set and Torx T15 screwdriver; bed bolts Torque to 74 Nm (55 ft-lbs).
• Method B: Raise tank, reinstall straps using a 15mm socket; strap bolts Torque to 25 Nm (18 ft-lbs); reconnect filler/vent hoses and clamps.

Step 12: Restore power and prime the fuel system

• Reinstall the fuel pump relay/fuse if removed.
• Reconnect the 48V service disconnect (if equipped) and reconnect the 12V battery negative using a 10mm socket.
• Prime: turn ignition ON for 5 seconds (do not crank), OFF for 5 seconds; repeat 3 times to build pressure.

---

✅ After Repair

• Start the engine and let it idle for 2-3 minutes.
• Inspect for leaks at the pump top, fuel line connections, and filler/vent hoses.
• Road test gently, then recheck for leaks.
• If a check engine light appears, scan for codes and address any EVAP/fuel pressure related codes.

---

💰 DIY vs Shop Cost

Shop Cost: $900-$1,600 (parts + labor)

DIY Cost: $250-$650 (parts only)

You Save: $650-$950 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-5 hours.

---
