🔧 Altima - Fuel Pump Replacement

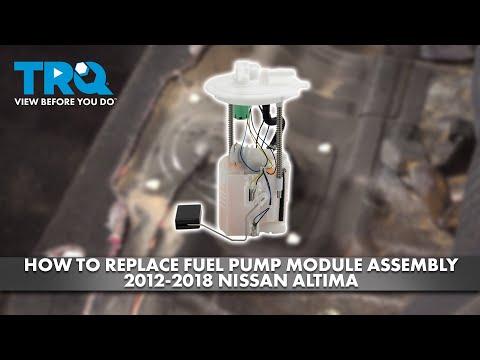

On your Altima, the fuel pump sits inside the fuel tank as part of a fuel pump “module” (the whole assembly). The job is usually done through an access panel under the rear seat, so you normally don’t have to drop the fuel tank.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• 🧯 Work outside or in a well-ventilated area; fuel vapors ignite easily.
• 🔥 No smoking, no heat guns, no shop lights with hot bulbs near the open tank.
• 🧤 Wear gloves and safety glasses; fuel can irritate skin/eyes.
• 🔋 Disconnect the negative battery terminal before opening the fuel system.
• 🧼 Clean dirt around the pump opening first; dirt in the tank can ruin the new pump.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 3/8" ratchet
• 3/8" extension (6")
• Inch-pound torque wrench (20–200 in-lb range)
• Foot-pound torque wrench (10–100 ft-lb range)
• Phillips #2 screwdriver
• Plastic trim removal tool
• Small flat-blade screwdriver
• Fuel pump lock ring wrench (specialty)
• Brass drift punch
• Small hammer
• Shop towels
• Catch pan
• Nitrile gloves
• Safety glasses
• Class B fire extinguisher

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Fuel pump module assembly - Qty: 1
• Fuel pump module tank seal (O-ring) - Qty: 1
• Fuel pump module lock ring - Qty: 1

---

📋 Before You Begin

• ⛽ Drive until the tank is at or below 1/4 tank if possible; it reduces spills.
• 🅿️ Park on level ground and remove the key from the vehicle.
• 🔧 Relieve fuel pressure before disconnecting lines: remove the fuel pump fuse/relay (labeled on the under-hood fuse box cover), start the engine, and let it run until it stalls; then crank for 3 seconds.
• 🔋 Disconnect the battery: use a 10mm socket to remove the negative terminal and isolate it so it can’t spring back. Torque to 5 Nm (44 in-lb) on reassembly.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the rear seat cushion

• Use a plastic trim removal tool to help pop the front seat cushion clips loose (pull up firmly at the front edge).
• Lift the cushion out and set it aside.

Step 2: Open the fuel pump access cover

• Locate the metal access cover in the floor under the rear seat.
• Remove the cover fasteners using a Phillips #2 screwdriver or 10mm socket (fastener type can vary).
• Peel back any butyl sealer carefully; use a small flat-blade screwdriver only if needed. Go slow—don’t bend the cover.

Step 3: Disconnect the electrical connector and fuel lines

• Unplug the pump electrical connector by hand (press the tab and pull).
• Place a catch pan and shop towels under the connections.
• Disconnect the quick-connect fuel line(s): use your fingers to release the connector tabs; if stuck, gently help the tab with a small flat-blade screwdriver.
• Pull straight—don’t twist the plastic line.

Step 4: Clean the area around the lock ring

• Wipe dirt away using shop towels.
• Do not let debris fall into the tank opening.

Step 5: Remove the fuel pump lock ring

• Preferred method: use a fuel pump lock ring wrench (specialty) and loosen the ring counterclockwise.
• Alternate method: place a brass drift punch against a lock-ring tab and tap with a small hammer to turn it counterclockwise.
• Remove the lock ring and set it aside.

Step 6: Remove the fuel pump module

• Lift the module straight up carefully (fuel may drip—use the catch pan).
• Angle it as needed to clear the fuel level float without bending it.
• Remove the old tank seal (O-ring) from the tank opening by hand and discard it.

Step 7: Install the new seal and fuel pump module

• Install the new fuel pump module tank seal (O-ring) into the groove/opening (do not reuse the old one).
• Lower the new module into the tank in the same orientation as the old one.
• Make sure the seal stays seated and does not pinch.

Step 8: Install and tighten the lock ring

• Install the new fuel pump module lock ring (or reuse only if your replacement procedure specifies reuse).
• Tighten with the fuel pump lock ring wrench (specialty) until fully seated/locked.
• Torque to 68 Nm (50 ft-lb).

Step 9: Reconnect fuel lines and electrical connector

• Reconnect the fuel line(s) by pushing them on until they click.
• Gently tug-test the line(s) by hand to confirm they’re locked.
• Reconnect the electrical connector until it clicks.

Step 10: Reinstall the access cover and rear seat

• Reinstall the access cover fasteners using a Phillips #2 screwdriver or 10mm socket.
• Torque to 3 Nm (27 in-lb) if using small bolts/screws with a torque spec.
• Reinstall the rear seat cushion and push down firmly to snap the front clips in.

---

✅ After Repair

• 🔋 Reconnect the negative battery terminal using a 10mm socket. Torque to 5 Nm (44 in-lb).
• ⛽ Reinstall the fuel pump fuse/relay you removed.
• 🔑 Prime the system: key ON (engine OFF) for 5 seconds, key OFF for 5 seconds—repeat 3 times.
• 🕵️ Start the engine and inspect for leaks at the top of the module and the fuel line connections.
• 🛣️ Test drive 5–10 minutes, then recheck for fuel smell/leaks.

---

💰 DIY vs Shop Cost

Shop Cost: $650-$1,200 (parts + labor)

DIY Cost: $220-$550 (parts only)

You Save: $430-$650 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
