🔧 Forester - Fuel Pump Replacement

Your Forester’s fuel pump is inside the fuel tank, but Subaru designed an access panel under the rear seat so you can service it without dropping the tank. The job is mostly careful disassembly, keeping dirt out of the tank, and preventing fuel vapor ignition.

Difficulty Level: Intermediate | Estimated Time: 1.5-3 hours

---

⚠️ Safety & Precautions

• ⚠️ Work outside or in a very well-ventilated area—fuel vapors are highly flammable.
• ⚠️ No smoking, no heat guns, no shop lights with broken lenses, and don’t create sparks.
• ⚠️ Disconnect the negative battery cable before opening the tank access cover.
• ⚠️ Relieve fuel pressure before disconnecting fuel lines to prevent spray.
• ⚠️ Keep dirt out of the tank—clean the top of the module area before opening.
• ⚠️ Have a Class B fire extinguisher nearby.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Fire extinguisher (Class B)
• 10mm socket
• 3/8" ratchet
• 3" extension (3/8")
• Phillips #2 screwdriver
• Flat-blade screwdriver (medium)
• Trim removal tool (plastic)
• Needle-nose pliers
• Torque wrench (in-lb)
• Shop towels
• Drain pan (at least 2-gallon)
• Non-sparking pick tool (plastic) (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Fuel pump module assembly - Qty: 1
• Fuel pump module tank seal (O-ring/gasket) - Qty: 1
• Fuel hose clamp set - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and open the fuel door to relieve tank vapor pressure.
• Run the fuel level down if possible—less fuel means less mess and fumes.
• Relieve fuel pressure: remove the fuel pump fuse/relay, then crank the engine for 3–5 seconds until it stumbles/dies.
• Disconnect the battery: use a 10mm socket to remove the negative battery terminal and isolate it so it can’t spring back.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the rear seat bottom cushion

• Use a trim removal tool (plastic) to pop the front edge clips of the rear seat bottom up.
• Lift the cushion out and set it aside.

Step 2: Open the fuel pump access cover

• Locate the access panel on the floor under the rear seat (passenger-side area).
• Use a Phillips #2 screwdriver (or 10mm socket, depending on fasteners) to remove the access cover screws/bolts.
• Pull the cover up and move any butyl sealant aside carefully using a non-sparking pick tool (plastic) (specialty).

Step 3: Clean the area before disconnecting anything

• Use shop towels to wipe dust and grit off the top of the fuel pump module and surrounding area.
• Cleanliness here prevents tank contamination.

Step 4: Disconnect the electrical connector(s)

• Press the lock tab and unplug the pump/module connector by hand.
• If the tab is stubborn, use a flat-blade screwdriver (medium) gently to assist—do not break the lock.

Step 5: Disconnect the fuel line(s)

• Place a drain pan (at least 2-gallon) under the access area and surround the connection with shop towels.
• For the quick-connect fitting: squeeze the side tabs with needle-nose pliers (or by hand), then pull the line straight off.
• Expect a small amount of fuel—keep the line pointed into the towels.

Step 6: Remove the fuel pump module retaining fasteners

• Use a 10mm socket with a 3/8" ratchet and 3" extension (3/8") to remove the module flange nuts/bolts evenly in a crisscross pattern.
• Set fasteners aside where they won’t fall into the opening.

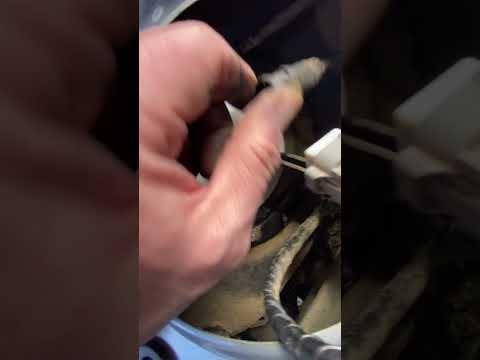

Step 7: Lift the module out of the tank (slowly)

• Carefully lift the module straight up. Angle it as needed to clear the float arm (fuel level sensor).
• Let fuel drain off the module into the tank, then into your drain pan (at least 2-gallon) as you remove it fully.
• Remove and discard the old fuel pump module tank seal (O-ring/gasket).

Step 8: Install the new seal and module

• Install the new fuel pump module tank seal (O-ring/gasket) onto the tank opening (or onto the module if your seal is designed that way).
• Lower the new fuel pump module assembly into the tank carefully, guiding the float arm so it doesn’t bend.
• Align the module’s index marks with the tank marks so the line routing matches.

Step 9: Tighten the module fasteners evenly

• Start all nuts/bolts by hand first.
• Tighten in a crisscross pattern using a 10mm socket.
• Final tighten using a torque wrench (in-lb): Torque to 44 in-lbs (5 N·m).

Step 10: Reconnect fuel line(s) and electrical connector(s)

• Push the quick-connect fuel line on until it clicks, then tug gently to confirm it’s locked.
• Reconnect the electrical connector until it clicks.
• If any hose clamps were removed, install new ones from the fuel hose clamp set using needle-nose pliers.

Step 11: Close up the access cover and reinstall the rear seat

• Reinstall the access cover using a Phillips #2 screwdriver or 10mm socket.
• Reinstall the rear seat bottom cushion: align the rear tabs first, then press down at the front until the clips snap in.

---

✅ After Repair

• Reconnect the battery negative terminal using a 10mm socket.
• Prime the system: turn the key to ON (do not start) for 5 seconds, OFF for 5 seconds—repeat 3 times.
• Start the engine and let it idle while you check for fuel smell or seepage under the rear seat access area.
• If you see any leak, shut the engine off immediately and recheck the quick-connect and seal seating.

---

💰 DIY vs Shop Cost

Shop Cost: $650-$1,150 (parts + labor)

DIY Cost: $220-$650 (parts only)

You Save: $430-$500 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3 hours.

---
