🔧 Sierra 1500 - Fuel Pump Replacement

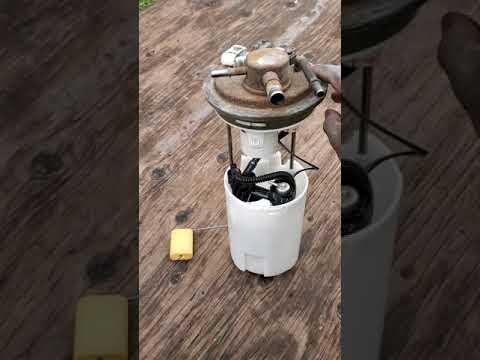

On your Sierra 1500, the fuel pump is part of an in-tank fuel pump module (pump + sending unit). Replacement usually involves accessing the top of the fuel tank either by lifting/removing the truck bed or by lowering the fuel tank.

Difficulty Level: Advanced | Estimated Time: 3-6 hours

---

⚠️ Safety & Precautions

• 🧯 Work outside or in a very well-ventilated area—gas fumes are highly flammable.
• 🛑 No smoking, no sparks, no trouble lights with hot bulbs—use an LED work light.
• 🔋 Disconnect the negative battery cable before opening the fuel system.
• ⛽ Relieve fuel pressure before disconnecting any fuel lines to prevent spray.
• 🧤 Wear safety glasses and fuel-resistant gloves—fuel can irritate skin and eyes.
• 🧰 Support the bed/tank securely—never rely on only a jack.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Fuel-resistant gloves
• Wheel chocks
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wood block for jack pad
• Socket set 8mm–21mm
• Ratchet
• Breaker bar
• Torque wrench (10–150 ft-lbs range)
• Flathead screwdriver
• Needle-nose pliers
• Fuel line quick-disconnect tool set (5/16" and 3/8")
• Brass drift punch (specialty)
• Small hammer
• Drain pan
• Siphon pump (hand pump)
• Shop towels
• LED work light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Fuel pump module assembly - Qty: 1
• Fuel pump module tank seal (O-ring) - Qty: 1
• Fuel filter (frame-mounted, if equipped) - Qty: 1
• New fuel line retaining clips (optional) - Qty: 1 set

---

📋 Before You Begin

• 🅿️ Park on level ground, set the parking brake, and chock the rear wheels.
• ⛽ If the tank is more than 1/4 full, use a siphon pump (hand pump) to remove fuel into an approved container. Lighter tank = much easier.
• 🔋 Disconnect the negative battery cable using a 10mm socket.
• 🧯 Keep a Class B fire extinguisher nearby (fuel-rated).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Relieve fuel pressure

• Open the underhood fuse box and remove the fuel pump relay using needle-nose pliers.
• Start the engine and let it run until it stalls.
• Crank for 3 seconds one more time to bleed off remaining pressure.
• Turn the key OFF.

Step 2: Choose your access method (Bed lift/removal or Tank drop)

• Method A (often easier): lift or remove the bed to access the pump from above.
• Method B (common in shops): lower the fuel tank and remove the pump module.
• If you’re working alone, Method B may be safer.

Step 3A (Method A): Unbolt and lift/remove the bed

• Unplug the rear tail lamp/bed harness connector (near the rear frame area) by releasing the lock tab with a flathead screwdriver.
• Remove the fuel filler neck screws at the bedside using a socket set 8mm–21mm and ratchet (size varies by fastener).
• Remove the bed bolts using a breaker bar and socket set 8mm–21mm.
• With help, lift the bed rearward/up enough to access the top of the tank (or fully remove it).
• When reinstalling bed bolts: Torque to 80 Nm (59 ft-lbs).

Step 3B (Method B): Support and lower the fuel tank

• Raise the rear of the truck with a floor jack (rated 3-ton minimum) and support with jack stands (rated 3-ton minimum).
• Place a wood block for jack pad on the floor jack and support the fuel tank.
• Disconnect the EVAP/vapor lines and electrical connector at the front/top of the tank (use a flathead screwdriver to release clips as needed).
• Disconnect fuel lines using the fuel line quick-disconnect tool set (5/16" and 3/8"). (A quick-disconnect tool slides into the fitting to release the internal spring.)
• Remove the tank strap bolts using a socket set 8mm–21mm and ratchet, then slowly lower the tank with the floor jack (rated 3-ton minimum).
• When reinstalling tank strap bolts: Torque to 35 Nm (26 ft-lbs).

Step 4: Clean the top of the tank

• Use LED work light to inspect the pump area.
• Wipe/blow away dirt around the pump lock ring using shop towels. Keep dirt out of the tank.

Step 5: Remove the fuel pump lock ring

• Unplug the pump electrical connector using a flathead screwdriver to release the tab.
• Disconnect any remaining quick-connect lines with the fuel line quick-disconnect tool set (5/16" and 3/8").
• Use a brass drift punch (specialty) and small hammer to tap the lock ring counterclockwise until it releases.
• Lift off the lock ring and remove the old seal.

Step 6: Remove the fuel pump module

• Carefully lift the module up and out of the tank.
• Angle it as needed to clear the float arm (fuel level sender). Go slow to avoid bending it.
• Let fuel drain into a drain pan.

Step 7: Install the new seal and new fuel pump module

• Install the new tank seal (O-ring) into the tank opening by hand.
• Lower the new module into the tank carefully, guiding the float arm in.
• Reinstall the lock ring and use the brass drift punch (specialty) and small hammer to tap it clockwise until fully seated/locked.

Step 8: Reconnect lines, wiring, and reinstall tank/bed

• Reconnect fuel/EVAP lines until they “click” and tug lightly to confirm locked.
• Reconnect the pump electrical connector.
• If Method B: raise the tank with the floor jack (rated 3-ton minimum), install straps, and torque to 35 Nm (26 ft-lbs).
• If Method A: reinstall the bed, reconnect the harness, and torque bed bolts to 80 Nm (59 ft-lbs).

Step 9: Prime the system and check for leaks

• Reinstall the fuel pump relay by hand.
• Reconnect the negative battery cable using a 10mm socket.
• Turn the key to ON (engine OFF) for 5 seconds, then OFF for 10 seconds. Repeat 3 times.
• Start the engine and inspect for leaks at every fuel line connection using LED work light and shop towels.

---

✅ After Repair

• 🧪 Let the engine idle for 2–3 minutes and recheck for seepage or fuel smell.
• 🛣️ Take a short test drive, then recheck underneath for leaks.
• 🧰 If the fuel gauge reads wrong, the float arm may be hung up—recheck module seating.
• 🔎 If you have a check engine light afterward, inspect EVAP/vapor line connections first.

---

💰 DIY vs Shop Cost

Shop Cost: $900-$1,600 (parts + labor)

DIY Cost: $250-$650 (parts only)

You Save: $650-$950 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-5 hours.

---
