🔧 Jetta - Front Window Regulator Replacement

The front window regulator supports and moves the glass up and down inside the door. When it breaks, the window may fall, tilt, or stop moving. This repair requires removing the inner door trim, disconnecting the glass, and replacing the regulator assembly.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• Disconnect the negative battery cable before working in the door, since the side airbag may be present.
• Support the window glass with tape before removing the regulator bolts.
• Do not force the glass if it is stuck in the run channel.
• Keep fingers clear of the regulator tracks and cable mechanism.
• If the window has an anti-pinch feature, a relearn may be needed after repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Trim panel removal tool
• Torx T20 screwdriver
• Torx T25 screwdriver
• 10mm socket
• 1/4-inch ratchet
• 1/4-inch extension
• Flat blade screwdriver
• Masking tape
• Pick tool
• Torque wrench
• Safety glasses
• Gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front window regulator - Qty: 2
• Door trim clip set - Qty: 2
• Moisture barrier adhesive - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Lower the glass if possible before disconnecting the battery, then tape the glass in place.
• Disconnect the negative battery cable and wait at least 10 minutes before opening the door trim.
• Have a helper ready if the glass is loose or partially detached.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

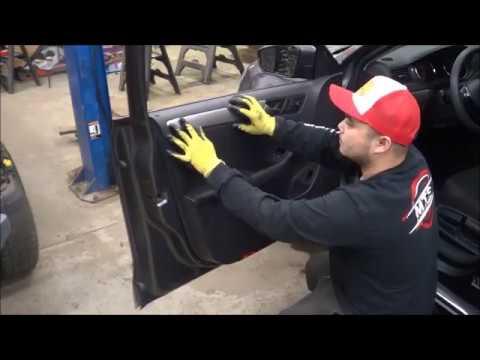

Step 1: Remove the door trim panel

• Use a trim panel removal tool to pop off the trim pieces around the door handle and armrest.
• Use a Torx T20 screwdriver to remove the screws hidden behind the trim covers.
• Use the trim panel removal tool to release the door panel clips around the perimeter.
• Lift the panel upward to unhook it from the top edge of the door.
• Disconnect any electrical connectors carefully.

Step 2: Remove the moisture barrier

• Use a flat blade screwdriver and pick tool to carefully peel back the moisture barrier without tearing it.
• Keep the adhesive clean so the barrier can be resealed later.

Step 3: Secure the window glass

• Raise or position the glass so the mounting holes line up with the regulator access openings.
• Use masking tape across the top of the door frame to hold the glass in place.
• Two layers of tape helps prevent slipping.

Step 4: Disconnect the glass from the regulator

• Use a 10mm socket with a 1/4-inch ratchet and extension to remove the glass clamp bolts.
• Carefully slide the glass upward and secure it with more tape.

Step 5: Remove the old regulator

• Use a Torx T25 screwdriver or 10mm socket to remove the regulator mounting fasteners.
• Disconnect the window motor electrical connector if it is attached to the regulator assembly.
• Angle the regulator out through the large service opening in the door.

Step 6: Install the new regulator

• Feed the new regulator into the door opening and position it on the mounting points.
• Start all fasteners by hand before tightening.
• Torque to 8 Nm (71 ft-lbs) for the regulator mounting bolts unless your replacement kit specifies otherwise.
• Reconnect the motor connector.

Step 7: Reattach the glass

• Lower the taped glass carefully into the regulator clamps.
• Use a 10mm socket to tighten the glass clamp bolts.
• Torque to 8 Nm (71 ft-lbs) for the glass clamp bolts.
• Remove the masking tape only after the glass is fully secured.

Step 8: Test the window and reinstall the door panel

• Reconnect the battery negative cable.
• Use the window switch to test full up and full down travel.
• Reinstall the moisture barrier and press it firmly into the original adhesive.
• Reconnect all electrical connectors and hang the door panel on the upper door lip.
• Use the trim panel removal tool to snap the clips back in place.
• Reinstall all Torx T20 screws and trim covers.

---

✅ After Repair

• Cycle the window several times and check for smooth movement.
• If the window has auto-up/down, hold the switch in the up position for a few seconds, then in the down position for a few seconds to relearn the limit settings.
• Check that the glass sits evenly in the seal and does not bind.
• Listen for unusual cable noise or clicking during operation.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$900 (parts + labor)

DIY Cost: $140-$320 (parts only)

You Save: $310-$580 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
