🔧 Front Window Regulators - Replacement

Replacing the front window regulators means removing the door trim, disconnecting the glass, and swapping the regulator assembly inside each front door. On your Camry, this is a moderate job because the glass must be handled carefully to avoid cracking or dropping it.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• Keep fingers clear of the regulator tracks and glass edges.
• The window glass is heavy and can drop suddenly.
• Disconnect the negative battery cable before working in the door if the airbag connector or power window wiring must be unplugged.
• Do not turn the ignition on with door connectors unplugged.
• Use a trim tool carefully to avoid breaking door panel clips.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• Ratchet
• Extension bar
• Phillips screwdriver
• Plastic trim removal tool
• Flat trim stick
• Painter’s tape
• Needle-nose pliers
• Torque wrench
• Safety glasses
• Mechanic gloves
• Door panel clip tool

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front window regulator assembly - Replace in pairs if both sides are worn - Qty: 1 or 2
• Door panel clips - Qty: 1 set
• Plastic vapor barrier adhesive - Qty: 1
• Optional window motor - Qty: 1 or 2 if the motor is faulty

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Lower the affected window slightly if it still works.
• Disconnect the negative battery cable before unplugging door wiring.
• Use painter’s tape to support the glass before removing the regulator.
• Have a helper ready if the glass feels loose or heavy.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the door trim panel

• Use a plastic trim removal tool to pop off the switch panel and any trim covers.
• Remove the screws with a Phillips screwdriver and 10mm socket if equipped.
• Work around the edge of the door panel with the trim tool to release the clips.
• Lift the panel upward to unhook it from the window ledge.
• Unplug the electrical connectors from the switch panel and speaker.

Step 2: Remove the water shield and secure the glass

• Peel back the vapor barrier carefully with a flat trim stick.
• Use painter’s tape to hold the glass fully up in the door frame.
• Keep the tape outside and inside the glass for better support.

Step 3: Disconnect the glass from the regulator

• Move the window glass until the regulator bolts or clamps are visible through the access openings.
• Use a 10mm socket and ratchet to remove the glass-to-regulator fasteners.
• Carefully lift the glass out of the regulator track only if needed by the design.
• Leave the glass taped in the up position.

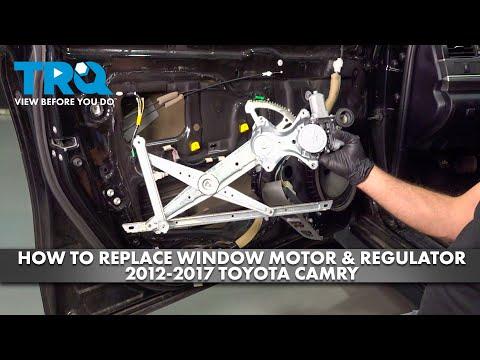

Step 4: Remove the old regulator assembly

• Unplug the window motor connector if it is attached to the regulator assembly.
• Use a 10mm socket with extension bar to remove the regulator mounting bolts.
• Angle the old regulator out through the large service opening in the door.
• Move slowly to avoid scratching the glass.

Step 5: Install the new regulator assembly

• Feed the new regulator into the door opening and align the mounting holes.
• Install the mounting bolts by hand first, then tighten with a 10mm socket.
• Torque to 8 Nm (71 in-lbs) for the regulator mounting bolts unless the replacement part instructions specify otherwise.
• Reconnect the window motor connector.

Step 6: Reattach the glass

• Lower the taped glass carefully into the regulator clamps or align it with the mounting points.
• Use a 10mm socket to tighten the glass fasteners.
• Torque to 8 Nm (71 in-lbs) for the glass clamp bolts unless the service part specifies a different value.
• Remove the painter’s tape only after the glass is securely fastened.

Step 7: Test window movement before reassembly

• Reconnect the battery negative cable.
• Turn the ignition on and use the window switch to move the glass up and down.
• Check for smooth travel, proper sealing, and no binding or clicking.
• If the motor stops early, recheck the glass alignment in the track.

Step 8: Reinstall the door panel

• Reconnect the door switch, speaker, and any other unplugged connectors.
• Press the vapor barrier back into place using plastic adhesive if needed.
• Hang the door panel on the upper ledge, then press the clips into place.
• Reinstall all screws with a Phillips screwdriver and 10mm socket.
• Snap the trim covers and switch panel back into position.

---

✅ After Repair

• Run the window from fully down to fully up several times.
• Make sure the glass seats evenly in the weatherstrip.
• Listen for grinding, popping, or clicking sounds.
• If the automatic up/down function is lost, reinitialize the window by holding the switch fully up for a few seconds after the glass closes, then fully down for a few seconds.
• Check that the door locks, speakers, and switches still work.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$700 (parts + labor)

DIY Cost: $90-$220 (parts only)

You Save: $260-$480 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3 hours.

---
