🔧 Front Window Regulators - Replacement

The front door trim panel and water shield must be removed so the regulator and motor assembly can come out of the door shell. On your Silverado, the regulator is a cable-style unit, so it is replaced as an assembly when the window is slow, stuck, or off-track.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• Disconnect the negative battery cable before starting. The door contains power window wiring.
• Support the glass with tape before removing the regulator. The window can drop suddenly.
• Keep hands clear of the regulator tracks. The mechanism can pinch fingers.
• Use caution around the side airbag area in the door. Do not probe yellow connectors.
• If the truck has one-touch auto-up/down, the window may need re-initialization after repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 7mm socket
• 8mm socket
• 10mm socket
• Ratchet
• Short extension
• Trim panel removal tool
• Flat-blade screwdriver
• Torx T30 screwdriver
• Needle-nose pliers
• Painter's tape
• Safety glasses
• Work gloves
• Torque wrench

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front window regulator assembly - Qty: 2
• Front window motor - Qty: 2 if not included with regulator
• Door panel retainers - Qty: 1 set
• Water shield adhesive or butyl tape - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Lower the window glass enough to access the regulator clips if the window still moves.
• If the glass is stuck in the raised position, tape it to the door frame before removing the panel.
• Disconnect the negative battery cable and wait a few minutes before unplugging door connectors.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the door trim panel

• Use a 7mm socket to remove the screws from the armrest, pull handle area, and lower door panel.
• Use a trim panel removal tool to pop the clips around the perimeter of the door panel.
• Lift the panel straight up and off the door shell.
• Disconnect the window switch, speaker connector, and any courtesy light connectors.

Step 2: Remove the water shield

• Use a flat-blade screwdriver carefully to peel back the water shield without tearing it.
• Set the shield aside so it can be reused if it is still in good shape.
• Keep the adhesive clean.

Step 3: Secure the glass

• If the window glass is up, use painter's tape to hold it firmly to the door frame.
• If the glass is partly down, move it by hand only if it is stable enough to reach the regulator bolts.
• Support the glass before loosening anything on the regulator.

Step 4: Disconnect the motor and glass

• Use a 10mm socket to remove the regulator and motor fasteners from the door shell.
• Use a Torx T30 screwdriver if your door uses Torx fasteners on the motor or regulator.
• Use needle-nose pliers to release the glass from the regulator clips if needed.
• Carefully slide the glass fully up and secure it with tape.

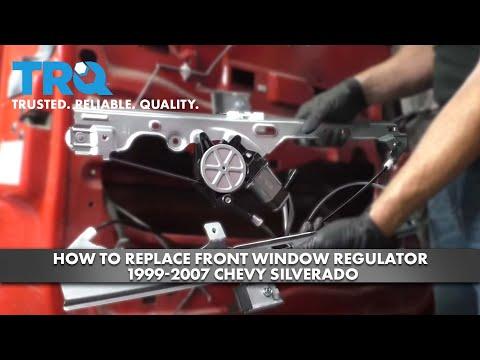

Step 5: Remove the old regulator assembly

• Use a 10mm socket and ratchet to remove the regulator mounting bolts.
• Angle the regulator and motor assembly out through the large service opening in the door.
• Remove it slowly so the tracks do not snag inside the door.

Step 6: Install the new regulator

• Position the new regulator inside the door shell.
• Use the 10mm socket to hand-start all mounting bolts first.
• Tighten the regulator mounting bolts to 9 Nm (80 in-lbs).
• Reconnect the motor electrical connector if it was removed.

Step 7: Attach the glass to the regulator

• Remove the tape holding the glass.
• Lower or raise the glass by hand until it aligns with the regulator clips.
• Use the 10mm socket or Torx T30 screwdriver to secure the glass to the regulator.
• Tighten glass-to-regulator fasteners to 8 Nm (71 in-lbs).

Step 8: Test window movement before reassembly

• Reconnect the battery temporarily and test the window switch.
• Make sure the glass moves smoothly up and down without binding.
• If the glass tilts or binds, stop and realign the regulator before continuing.

Step 9: Reinstall the water shield and door panel

• Reinstall the water shield using the original adhesive or new butyl tape.
• Reconnect all electrical connectors in the door panel.
• Hang the door panel on the upper ledge first, then press the clips in place.
• Use the 7mm socket to reinstall all trim screws.

Step 10: Final tighten and function check

• Reconnect the negative battery cable fully.
• Test the window, lock switch, mirror switch, and speaker operation.
• Make sure the panel is fully seated and there are no loose clips.

---

✅ After Repair

• Cycle the window fully up and down several times.
• If equipped with one-touch function, hold the switch in the up position for a few seconds after full closure to relearn the stops.
• Listen for scraping, popping, or uneven movement.
• Check the door panel for rattles and confirm all trim is seated.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$700 (parts + labor)

DIY Cost: $120-$280 (parts only)

You Save: $230-$420 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.5 hours.

---
