🔧 Prius - Front Window Regulator Replacement

A front window regulator is the track-and-cable (or scissor) mechanism that moves your window glass up and down. On your Prius, replacement means removing the door trim panel, securing the glass, swapping the regulator (and motor if it comes as an assembly), then re-initializing the auto-up/down.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours (one door)

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the 12V battery negative terminal before unplugging door wiring to prevent shorts and avoid any SRS warnings.
• ⚠️ Support the window glass securely—glass can drop suddenly when the regulator is unbolted.
• ⚠️ Do not tear the plastic vapor barrier (the water shield behind the door panel); reseal it to prevent water leaks and speaker/wiring damage.
• ⚠️ Keep the key fob away from the car while working so the window switch can’t be bumped.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" ratchet
• 6" socket extension
• Torque wrench (in-lb)
• Phillips screwdriver
• Plastic trim removal tool set
• Pick tool
• Needle-nose pliers
• Painter’s tape (1.5" wide)
• Razor blade or plastic scraper
• Work light
• Magnetic parts tray
• Mechanic’s gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front window regulator assembly - Qty: 1
• Front window motor - Qty: 1 (only if not included with regulator)
• Door panel retainer clips - Qty: 6-12 (as needed)
• Vapor barrier butyl tape - Qty: 1 (as needed)

---

📋 Before You Begin

• Park on level ground, shift to P, and power the car OFF.
• Lower the window to about halfway if it still moves (this gives access to the glass clamps). If it’s stuck, you’ll work around its position.
• Disconnect the 12V battery negative terminal using a 10mm socket.
• Take photos of connectors before unplugging.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the front door trim panel

• Use a plastic trim removal tool set to gently pry up the window switch panel.
• Unplug the switch connectors using a pick tool to release the small locking tabs (a locking tab is a tiny clip that prevents the plug from backing out).
• Remove any visible screws in the armrest/handle area using a Phillips screwdriver.
• Use a plastic trim removal tool set to pop the door panel clips loose around the edges.
• Lift the door panel upward to unhook it from the window channel, then set it aside.

Step 2: Remove and preserve the vapor barrier

• Carefully peel the plastic vapor barrier back using a razor blade or plastic scraper if needed to separate sticky butyl.
• Do not fully remove it unless necessary; fold it out of the way.
• Keep butyl clean so it reseals well.

Step 3: Secure the window glass

• Use painter’s tape (1.5" wide) to tape the glass to the door frame (run 2–3 long strips over the top of the door).
• If the glass is loose, add extra tape and support it with your hand while loosening hardware.

Step 4: Disconnect the window motor and related connectors

• Unplug the window motor connector using a pick tool to release the lock tab.
• Move wiring clips out of the way using a trim removal tool or needle-nose pliers.

Step 5: Detach the glass from the regulator

• Through the door access holes, locate the two glass clamp bolts.
• Use a 10mm socket with a 6" socket extension to loosen/remove the clamp bolts.
• Torque to 80 in-lbf (9 N·m) on reassembly.
• Once unclamped, keep the glass taped up and stable.

Step 6: Remove the window regulator (and motor if included)

• Remove the regulator mounting bolts using a 10mm socket and 1/4" ratchet.
• Support the regulator as the last bolts come out so it doesn’t drop and bend.
• Carefully maneuver the regulator assembly out through the large door opening.
• Torque to 71 in-lbf (8 N·m) on reassembly for regulator-to-door bolts.

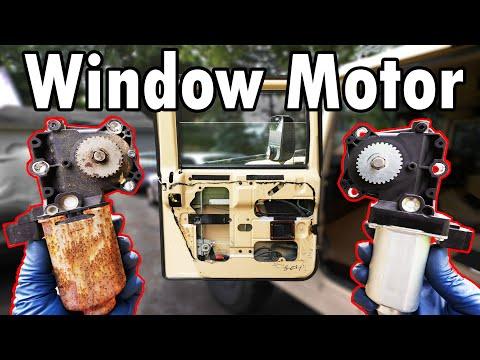

Step 7: Transfer the motor (only if your new regulator doesn’t include it)

• Remove the motor fasteners from the old regulator using a 10mm socket (or the same tool that matches your fasteners).
• Install the motor onto the new regulator.
• Torque to 53 in-lbf (6 N·m) for motor fasteners.
• Keep fingers clear of the gear area.

Step 8: Install the new regulator

• Slide the new regulator into the door and align it to the mounting holes.
• Start all bolts by hand first to avoid cross-threading.
• Tighten using a 10mm socket and finish with a torque wrench (in-lb).
• Torque to 71 in-lbf (8 N·m).

Step 9: Reattach the glass to the regulator

• Lower the glass carefully into the clamps (remove some tape as needed, but keep one strip supporting it).
• Install/tighten the clamp bolts using a 10mm socket.
• Torque to 80 in-lbf (9 N·m).

Step 10: Reseal the vapor barrier and reinstall the door panel

• Press the vapor barrier back into the butyl seal; add vapor barrier butyl tape where it no longer sticks.
• Reconnect the switch connectors.
• Hook the top of the panel onto the window channel, then press clips in around the perimeter using your hands.
• Reinstall screws using a Phillips screwdriver.

Step 11: Reconnect the 12V battery

• Reconnect the negative terminal using a 10mm socket.

---

✅ After Repair

• Turn the car ON (READY not required) and test the window up/down movement.
• Initialize auto up/down: hold the window switch fully DOWN for 2–3 seconds after it reaches bottom, then hold fully UP for 2–3 seconds after it reaches top.
• Check the window for smooth travel and proper sealing at the top (no wind noise gap).
• Confirm the door lock, mirror, and speaker still work (connectors seated).

---

💰 DIY vs Shop Cost

Shop Cost: $450-$850 (parts + labor)

DIY Cost: $120-$320 (parts only)

You Save: $330-$530 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
