🔧 HR-V - Front Window Regulator Replacement

On your HR-V, replacing a front window regulator means removing the inner door trim, supporting the glass, unbolting the regulator assembly, and reinstalling/alignment testing. The exact steps are very similar side-to-side, but connector routing and trim pieces differ slightly between the driver and passenger door.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

Quick questions so I give you the correct side-specific steps + torque specs:

• 🧩 Is it the front driver door or front passenger door?
• 🧩 Are you replacing the regulator only, or the regulator with motor (complete assembly)?

---

⚠️ Safety & Precautions

• ⚠️ Keep hands clear of the regulator arms and scissor/cable path; it can pinch hard.
• ⚠️ Support the window glass before unbolting it from the regulator, or it can drop suddenly.
• ⚠️ If you unplug airbag-related connectors (some door harnesses route near SRS wiring), disconnect the 12V battery and wait 3 minutes before unplugging connectors.
• ⚠️ Don’t turn the ignition on with major door connectors unplugged; it can set warning lights.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" drive ratchet
• 3" extension (1/4" drive)
• Phillips #2 screwdriver
• Trim clip removal tool
• Small flat-blade screwdriver
• Needle-nose pliers
• Painter’s tape (1.5")
• Torque wrench (in-lb and ft-lb capable)
• Work gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front window regulator - Qty: 1
• Front window regulator motor - Qty: 1 (if not included with regulator)
• Door panel trim clips - Qty: 6-12 (as needed)
• Butyl adhesive (door vapor barrier sealer) - Qty: 1 (as needed)

---

📋 Before You Begin

• Park on level ground and turn the ignition OFF.
• Open the front door you’re working on fully for room.
• If you plan to unplug multiple connectors inside the door, disconnect the negative battery cable using a 10mm socket and wait 3 minutes.
• Have painter’s tape ready to hold the glass up once it’s separated from the regulator.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm door side & parts type (pause point)

• Reply with driver or passenger, and whether it’s regulator only or regulator + motor.
• This matters because fastener locations, harness routing, and some torque specs/connector handling differ by door and assembly type.

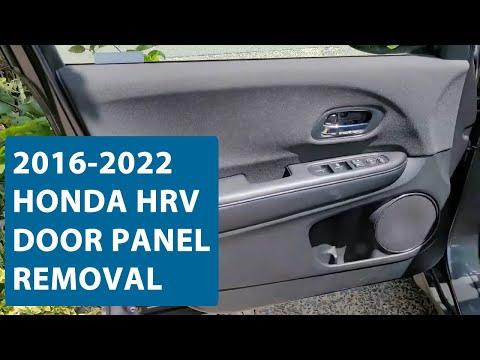

Step 2: Remove the inner door trim panel (outline)

• Use a small flat-blade screwdriver to gently pop the trim covers hiding screws.
• Use a Phillips #2 screwdriver to remove the armrest/handle screws.
• Use a trim clip removal tool to pop the panel clips around the edges.
• Lift the panel straight up to unhook it from the window channel, then unplug connectors.
• A trim clip tool prevents breaking clips.

Step 3: Remove and preserve the vapor barrier (outline)

• Carefully peel the plastic vapor barrier back by hand.
• If the adhesive tears, plan to reseal using butyl adhesive during reassembly.

Step 4: Separate the glass from the regulator (outline)

• Reconnect the window switch temporarily (if needed) and move the glass until the regulator-to-glass fasteners are visible through the access holes.
• Turn ignition OFF again.
• Use a 10mm socket and ratchet to loosen/remove the glass clamp/bolts.
• Raise the glass fully by hand and secure it to the door frame using painter’s tape (1.5") in multiple strips.

Step 5: Remove the regulator/motor assembly (outline)

• Unplug the motor connector.
• Use a 10mm socket, extension, and ratchet to remove the regulator mounting bolts.
• Work the regulator out through the access opening without bending it.

Step 6: Install the new regulator and align (outline)

• Position the new regulator in the door and start bolts by hand to avoid cross-threading.
• Use a torque wrench to tighten fasteners to the correct spec (I’ll provide the exact numbers once you confirm driver/passenger and regulator-only vs motor assembly).
• Lower the glass carefully onto the regulator clamps and reinstall the glass fasteners with a 10mm socket.

Step 7: Function test before reassembly (outline)

• Plug in the switch and motor, then cycle the window fully down and fully up.
• Listen for clicking/grinding and watch for the glass tilting (misalignment).
• If the auto-up/down or pinch protection acts weird after battery disconnect, you may need window initialization (I’ll give the exact procedure for your door once confirmed).

---

✅ After Repair

• Verify the window seals evenly at the top and doesn’t rattle on bumps.
• Recheck that the vapor barrier is fully sealed to prevent water leaks into the cabin.
• If you disconnected the battery, confirm radio/settings and perform window initialization if needed.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$800 (parts + labor)

DIY Cost: $90-$250 (parts only)

You Save: $260-$550 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-3 hours.

---
