🔧 Fusion - Front Window Regulator Replacement

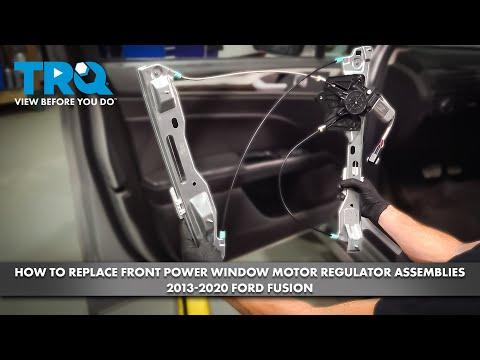

On your Fusion, the window regulator is the cable/track assembly that lifts and lowers the glass. Replacing it requires removing the front door panel, securing the glass, swapping the regulator (often as a regulator+motor assembly), then reassembling and testing.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours (per door)

---

⚠️ Safety & Precautions

• ⚠️ Keep hands clear of the regulator cables and scissor/track while powered—pinch hazard.
• ⚠️ Support the window glass with tape or a helper so it can’t drop.
• ⚠️ Turn ignition OFF and keep the key away from the car while unplugging door wiring.
• ⚠️ Recommended: disconnect the 12V battery negative cable to prevent shorts and avoid setting electrical faults.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Trim removal tool set
• Small pick tool
• Flathead screwdriver (small)
• Phillips screwdriver #2
• 7mm socket
• 8mm socket
• 10mm socket
• 1/4" ratchet
• 3" extension (1/4" drive)
• Torque wrench (inch-pound)
• Torque wrench (foot-pound)
• Painters tape (1"-2" wide)
• Panel clip pliers
• Drill
• Drill bit set
• Rivet gun (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front window regulator - Qty: 1
• Front window regulator motor - Qty: 1 (only if not included)
• Door panel retainer clips - Qty: 4-10 (as needed)
• Butyl tape (door water shield adhesive) - Qty: 1
• Aluminum rivets (regulator mounting) - Qty: 6-10 (if riveted)

---

📋 Before You Begin

• Park on level ground, window about halfway down if possible (makes glass bolts accessible).
• Have a clean table ready for screws/clips so nothing gets lost.
• If you’ll disconnect the 12V battery: use a 10mm socket to remove the negative terminal and isolate it so it can’t spring back.
• Quick questions so I give you the exact fastener method and torque specs (they vary):
• ➡️ Which side are you doing: front driver or front passenger?
• ➡️ Are you replacing regulator only or a regulator + motor assembly?

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the front door trim panel

• Use a trim removal tool set to pop off the small trim covers at the door pull/handle area (they hide screws).
• Remove the exposed screws using a 7mm socket and/or Phillips screwdriver #2 (exact mix depends on your door panel version).
• Starting at the lower edge, use the trim removal tool set or panel clip pliers to pop the panel clips free around the perimeter.
• Lift the panel straight up and off the window ledge.
• Unplug the electrical connectors (window switch, courtesy light). Use a small pick tool to release stubborn connector locks. Don’t pull on wires.

Step 2: Remove the door water shield (vapor barrier)

• Carefully peel the water shield back using a trim removal tool set.
• If the adhesive is messy or no longer sticks, plan to use butyl tape during reassembly.

Step 3: Secure the window glass

• If the glass is still attached to the regulator and you can power the window: temporarily reconnect the window switch and turn ignition ON just long enough to position the glass so the clamp/fasteners are visible through the access holes.
• Turn ignition OFF again.
• Use painters tape (1"-2" wide) to tape the glass to the door frame (run several long strips over the top of the door).

Step 4: Disconnect the glass from the regulator

• Through the access holes, loosen/remove the glass-to-regulator fasteners using an 8mm socket or 10mm socket (varies by build).
• Once free, slide the glass fully up by hand and re-tape it securely.

Step 5: Remove the regulator (and motor if attached)

• Unplug the window motor connector (use the small pick tool if the lock tab is tight).
• Look at how the regulator is mounted:
  • If you see bolts: remove them using an 10mm socket.
  • If you see factory rivets (round heads): drill the rivet heads off using a drill and drill bit set. Go slow to avoid enlarging holes.
• Angle the regulator out through the largest access opening.

Step 6: Transfer the motor (only if your new regulator doesn’t include it)

• Remove the motor fasteners using an 8mm socket (common) and separate the motor from the regulator.
• Install the motor onto the new regulator and tighten fasteners evenly.
• If the motor gear doesn’t seat, rotate slightly by hand.

Step 7: Install the new regulator

• Position the new regulator in the door and line up the mounting points.
• If bolted: start all bolts by hand, then tighten with a 10mm socket.
• If riveted: install new rivets using a rivet gun (specialty).
• Torque specs: I’ll provide the exact Ford torque values once you confirm driver/passenger side and whether it’s bolt-on or riveted on your door.

Step 8: Reattach the glass and function-test

• Lower the glass carefully into the regulator clamps.
• Install/tighten the glass fasteners using an 8mm socket or 10mm socket.
• Plug in the motor connector.
• Reconnect the window switch, turn ignition ON, and run the window up/down slowly to confirm smooth travel and no cable popping.

Step 9: Reinstall the water shield and door panel

• Re-seal the water shield using butyl tape if needed, pressing firmly around the full perimeter.
• Reconnect all door panel electrical connectors.
• Hang the panel on the top lip first, then press clips in around the edges.
• Reinstall screws using a 7mm socket and/or Phillips screwdriver #2, then snap trim covers back on.

---

✅ After Repair

• Cycle the window fully down and fully up 3 times and listen for clicking/popping.
• Check the door for water shield gaps (this prevents leaks and wind noise).
• If you disconnected the 12V battery, reconnect it using a 10mm socket and confirm the radio/settings are working normally.
• If the auto-up/down or pinch protection acts weird, tell me and I’ll walk you through the Fusion window relearn for your exact switch setup.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$900 (parts + labor)

DIY Cost: $120-$350 (parts only)

You Save: $330-$550 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
