🔧 Pacifica - Front Window Regulator Replacement

Replacing a front window regulator means removing the front door trim panel, peeling back the water shield, supporting the glass, and swapping the regulator (the scissor/cable mechanism that moves the glass). On your Pacifica, doing this cleanly is mostly about careful trim removal and keeping the glass safely supported.

Difficulty Level: Intermediate | Estimated Time: 2-3 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the 12V negative battery cable before unplugging door wiring to prevent airbag/SRS faults and accidental window movement.
• ⚠️ Support the window glass with painter’s tape and/or suction cups; glass can drop suddenly when the regulator is disconnected.
• ⚠️ Keep the ignition OFF and the key/fob away from the van while working near door wiring.
• ⚠️ The high-voltage hybrid system is not part of this job, but still avoid orange HV cables/components.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Trim removal tool set
• Phillips screwdriver
• Flat-blade screwdriver
• 1/4" drive ratchet
• 3/8" drive ratchet
• 10mm socket
• 8mm socket
• Torx T20 driver
• Torx T30 driver
• Pick tool
• Painters tape 1.5" wide
• Window suction cups
• Needle-nose pliers
• Torque wrench 5-60 Nm
• Work gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front window regulator - Qty: 1
• Front window regulator motor - Qty: 1
• Door panel trim clips - Qty: 1 set
• Butyl seal tape for water shield - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and make sure the window is about halfway down if it still moves (this helps access the glass clamps).
• Turn the ignition OFF and keep the key/fob at least 15 ft away.
• Disconnect the 12V negative battery cable using a 10mm socket.
• Set up a clean table/blanket for the door panel so you don’t scratch it.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the front door trim panel

• Use a trim removal tool set to gently pry off the trim pieces hiding screws (usually near the door pull handle and switch area).
• Remove visible fasteners using a Phillips screwdriver and/or Torx T20 driver (locations vary by door).
• Use the trim removal tool set to pop the panel clips loose around the perimeter.
• Lift the panel upward to unhook it from the window ledge.
• Unplug connectors (window switch, courtesy light) using a pick tool to release locks. Don’t pull on the wires.

Step 2: Remove the water shield

• Carefully peel back the plastic water shield (vapor barrier) by hand.
• If the butyl (sticky seal) stretches, use a pick tool to help separate it cleanly.
• Plan to reseal it later with butyl seal tape so water doesn’t leak into the cabin.

Step 3: Secure the window glass

• Use painter’s tape 1.5" wide to tape the glass to the door frame (run several long strips over the top of the glass to the outside door frame).
• For extra safety, attach window suction cups to hold the glass while you work.

Step 4: Disconnect the regulator from the glass

• Locate the regulator’s glass clamps/fasteners through the door access holes.
• Use an 8mm socket or 10mm socket (varies by build) to loosen the clamp fasteners.
• Once loosened, carefully lift the glass slightly by hand and keep it taped in the full-up position.

Step 5: Unplug and remove the regulator motor (if replacing)

• Unplug the window motor connector using a pick tool to release the lock.
• If your replacement is regulator-only, remove the motor from the regulator using a Torx T30 driver.
• Keep fingers clear of the cable drum area.

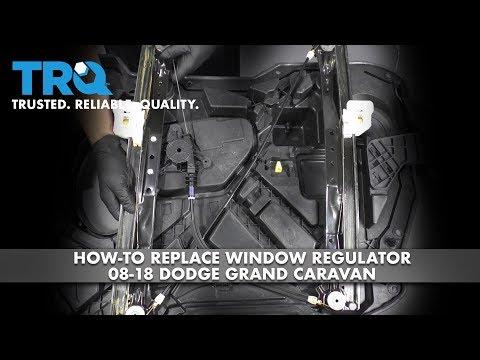

Step 6: Remove the window regulator assembly

• Remove the regulator mounting bolts using a 10mm socket.
• Carefully maneuver the regulator out through the largest door opening.
• Inspect the door for broken clips, loose glass guides, or debris.

Step 7: Install the new regulator

• Slide the new regulator into position and start the mounting bolts by hand.
• Tighten mounting bolts with a 10mm socket, then final-tighten with a torque wrench 5-60 Nm to the correct OEM specification.
• If transferring the motor, install it using a Torx T30 driver and final-tighten with a torque wrench 5-60 Nm to the correct OEM specification.

Step 8: Reattach the glass to the regulator

• Lower the glass carefully into the regulator clamps (remove some tape as needed, but keep one strip for safety).
• Tighten the clamp fasteners using an 8mm socket or 10mm socket, then final-tighten with a torque wrench 5-60 Nm to the correct OEM specification.
• Remove the remaining tape and suction cups.

Step 9: Reinstall the water shield and door panel

• Reseal the water shield using butyl seal tape (press firmly all the way around).
• Reconnect all electrical connectors.
• Hook the door panel on the top ledge, then press clips in around the perimeter by hand.
• Reinstall screws using a Phillips screwdriver / Torx T20 driver as removed.

Step 10: Reconnect the battery and function check

• Reconnect the 12V negative cable using a 10mm socket.
• Cycle the window up/down and listen for binding or popping.
• If auto-up/down acts odd, perform a window relearn: run the window fully down, hold the switch down 2 seconds; run fully up, hold 2 seconds.

---

✅ After Repair

• Verify the glass seats evenly at the top weatherstrip and doesn’t tilt forward/back.
• Check for wind noise and water leaks after a car wash or hose test.
• If you have an airbag/SRS light afterward, recheck door connectors and scan for codes with a compatible scan tool.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$900 (parts + labor)

DIY Cost: $120-$350 (parts only)

You Save: $330-$550 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-3 hours.

---
