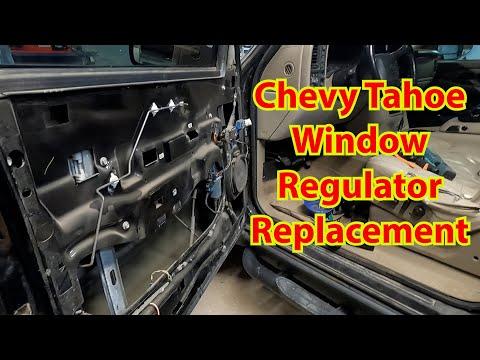

🔧 Tahoe - Front Window Regulator Replacement

The front window regulator is the lift mechanism inside the door that moves the glass up and down. On your Tahoe, replacement requires removing the interior door panel, securing the glass, swapping the regulator (often sold with the motor), then reassembling and testing.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours per door

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the battery before unplugging door/airbag wiring to avoid accidental airbag deployment.
• ⚠️ Support the window glass with tape or suction cups so it can’t drop and shatter.
• ⚠️ Keep fingers clear of the regulator arms and cables; they can pinch hard.
• ⚠️ Use eye protection when drilling rivets (if your regulator is riveted in).

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Trim removal tool set
• Small flathead screwdriver
• Pick tool
• 1/4" drive ratchet
• 3/8" drive ratchet
• 3" extension
• 7mm socket
• 10mm socket
• Torx T15 driver
• Torx T30 driver
• Torque wrench (in-lb)
• Painters tape (2" wide)
• Suction cup glass holder (specialty)
• Cordless drill
• 1/4" drill bit
• Heavy-duty rivet gun (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front window regulator (with motor) - Qty: 1
• Door trim panel clips (as needed) - Qty: 1 set
• Water shield butyl adhesive strip (as needed) - Qty: 1
• 1/4" heavy-duty rivets (if equipped) - Qty: 6-10

---

📋 Before You Begin

• Park on level ground, shift to Park, and open the front door fully.
• Lower the window if possible until you can access the glass-to-regulator clamp bolts through the door access holes.
• Disconnect the negative battery cable using a 10mm socket, then wait 2 minutes before unplugging door connectors.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the front door trim panel

• Use a trim removal tool set to gently pry off the small trim covers at the door pull/handle area (they hide screws).
• Remove the door panel screws using a 7mm socket and Torx T15 driver (locations vary by panel trim).
• Starting at the bottom edge, pop the panel clips free using the trim removal tool set, then lift the panel upward to unhook it from the window channel.
• Unplug electrical connectors using a pick tool to release locking tabs (don’t pull on wires).

Step 2: Remove the water shield (vapor barrier)

• Carefully peel the water shield back using your hands and a small flathead screwdriver where needed.
• Tip: Keep the butyl adhesive clean for reuse.

Step 3: Secure the window glass

• Use painters tape (2" wide) to tape the glass to the door frame (run multiple strips over the top of the door).
• If the glass is loose, support it with a suction cup glass holder (specialty) while you work.

Step 4: Separate the glass from the regulator

• Line up the access holes so you can see the glass clamp fasteners.
• Loosen/remove the clamp bolts using a 10mm socket.
• Torque to 89 in-lb (10 Nm) on reassembly.
• Lift the glass fully by hand and re-tape it securely in the full-up position.

Step 5: Unplug the window motor and free the harness

• Unplug the motor connector using a pick tool to release the lock.
• Release any harness clips from the door using the trim removal tool set.

Step 6: Remove the regulator assembly (bolts or rivets)

• If held by bolts: remove them with a 10mm socket.
• If held by rivets: drill the rivet heads with a cordless drill and 1/4" drill bit, then push the rivet bodies through the door.
• Remove the regulator through the large door opening (rotate it as needed to clear the crash beam).

Step 7: Install the new regulator

• Position the new regulator inside the door and align it to the mounting holes.
• If bolts: install and tighten using a 10mm socket, then Torque to 89 in-lb (10 Nm).
• If rivets: install new rivets using a heavy-duty rivet gun (specialty) and tighten until fully seated.
• Reconnect the motor connector by hand until it clicks.

Step 8: Reattach the glass to the regulator

• Lower the regulator carrier into position (you can temporarily reconnect the switch to move it, or move it by hand depending on design).
• Carefully lower the glass into the regulator clamps.
• Install/tighten the clamp bolts using a 10mm socket.
• Torque to 89 in-lb (10 Nm).

Step 9: Reinstall the water shield and door panel

• Press the water shield back into the butyl adhesive by hand; add water shield butyl adhesive strip if it won’t stick.
• Reconnect all electrical connectors by hand until they click.
• Hang the door panel on the top lip first, then press the clips in around the edges.
• Reinstall screws using a 7mm socket and Torx T15 driver.

Step 10: Reconnect the battery

• Reconnect the negative battery cable using a 10mm socket.

---

✅ After Repair

• Cycle the window up/down 5–10 times and listen for clicking, popping, or cable snapping sounds.
• Confirm auto-up/auto-down and pinch protection work correctly.
• Check the glass alignment at the top seal; it should close evenly without tilting.
• If you see an airbag/SRS light after reconnecting, the door airbag connector may not be fully seated and may require a scan tool to clear.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$900 (parts + labor)

DIY Cost: $120-$350 (parts only)

You Save: $330-$550 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
