🔧 Malibu - Front Window Regulator Replacement

The front window regulator is the lift mechanism that moves the glass up and down. On your Malibu, you’ll remove the inner door panel, support the glass, unbolt the regulator (and motor if included), then reinstall and re-learn the window’s “auto” function.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours (per door)

---

⚠️ Safety & Precautions

• ⚠️ Keep hands clear of the regulator arms/cables; pinch hazard.
• ⚠️ Support the window glass with tape or a suction cup before unbolting it, or it can drop suddenly.
• ⚠️ Turn ignition OFF and remove the key/fob from the vehicle while your hands are inside the door.
• ⚠️ If you unplug the door airbag-related connectors (if equipped in the door), disconnect the battery negative cable first and wait at least 2 minutes.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Trim removal tool set (plastic)
• Phillips screwdriver #2
• Torx T20 screwdriver
• Torx T30 screwdriver
• 7mm socket
• 10mm socket
• 1/4" ratchet
• 3/8" ratchet
• 6" extension (1/4" or 3/8")
• Torque wrench (in-lb capable)
• Torque wrench (ft-lb capable)
• Painter’s tape (2" wide)
• Window suction cup (specialty)
• Pick tool
• Needle-nose pliers
• Work light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front window regulator (LH or RH) - Qty: 1
• Front window regulator motor (if not included with regulator) - Qty: 1
• Door trim panel retainer clips - Qty: 6-12
• Butyl door vapor barrier adhesive strip - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Lower the window about halfway if it still moves; it makes the glass fasteners easier to access.
• If you expect to unplug any yellow SRS/airbag-style connectors inside the door: use a 10mm socket to disconnect the negative battery cable and wait 2 minutes.
• Take photos before unplugging connectors.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

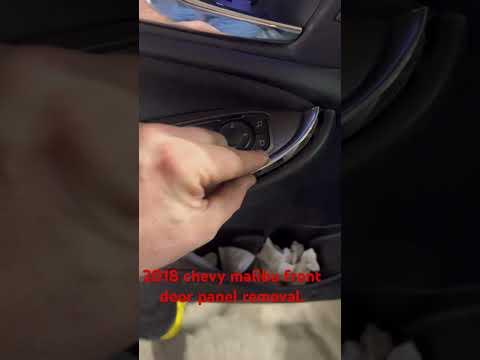

Step 1: Remove the front door trim panel

• Use a trim removal tool set (plastic) to carefully pry off the small trim covers hiding screws (typically at the inner handle area and/or armrest).
• Remove the exposed screws using a 7mm socket and/or Torx T20 screwdriver (fastener type can vary by location on the panel).
• Use the trim removal tool set (plastic) to pop the panel clips free around the edges.
• Lift the door panel upward to unhook it from the window ledge.
• Unplug electrical connectors (window switch, lock, speaker) using a pick tool to release tabs if needed.

Step 2: Remove the vapor barrier (water shield)

• Use the trim removal tool set (plastic) to peel the vapor barrier back slowly.
• If the adhesive tears or won’t reseal, plan to replace it with butyl door vapor barrier adhesive strip during reassembly.

Step 3: Support the window glass

• Use painter’s tape (2" wide) to tape the glass to the door frame (run multiple strips from outside glass over the top of the door frame to the inside).
• For extra control, use a window suction cup (specialty) on the glass so you can guide it by hand.

Step 4: Disconnect the window motor/regulator electrical connector

• Locate the motor connector through the access opening.
• Press the tab and unplug it by hand; use a pick tool gently if the lock tab is stubborn.

Step 5: Separate the glass from the regulator

• Through the door access holes, locate the glass-to-regulator fasteners (typically two clamp/bolts).
• Use a 10mm socket to loosen/remove the glass fasteners.
• Carefully raise the glass fully by hand and add more painter’s tape (2" wide) to hold it at the top.
• Torque on install: Torque to 10 Nm (89 in-lb)

Step 6: Remove the regulator assembly

• Remove the regulator mounting bolts using a 10mm socket with a 1/4" ratchet and 6" extension.
• If your replacement does not include the motor, remove the motor screws using a Torx T30 screwdriver and transfer the motor to the new regulator.
• Maneuver the regulator out through the largest access opening (rotate it as needed).
• Torque on install (regulator to door bolts): Torque to 10 Nm (89 in-lb)
• Torque on install (motor screws): Torque to 3 Nm (27 in-lb)

Step 7: Install the new regulator (and motor if applicable)

• Feed the new regulator into the door and align it to the mounting holes by hand.
• Start all bolts by hand first to avoid cross-threading, then tighten using a 10mm socket.
• If transferring the motor, install it with a Torx T30 screwdriver and tighten evenly.
• Torque: Torque to 10 Nm (89 in-lb) (regulator bolts)
• Torque: Torque to 3 Nm (27 in-lb) (motor screws)

Step 8: Reattach the glass to the regulator

• Lower the glass carefully until it sits in the regulator clamps/holders.
• Install/tighten the glass fasteners using a 10mm socket.
• Remove the painter’s tape (2" wide) after the glass is secured.
• Torque: Torque to 10 Nm (89 in-lb)

Step 9: Function test before reassembly

• Reconnect the motor connector by hand.
• Temporarily plug in the window switch and turn ignition ON.
• Run the window up/down slowly and listen for skipping/clicking.
• If it binds, stop and recheck alignment.

Step 10: Reinstall the vapor barrier and door panel

• Press the vapor barrier back into place; use butyl door vapor barrier adhesive strip if needed.
• Reconnect all electrical connectors.
• Hang the door panel on the top lip first, then press the clips in around the perimeter.
• Reinstall screws using a 7mm socket and/or Torx T20 screwdriver.

---

✅ After Repair

• Initialize the auto-up/auto-down (relearn): with ignition ON, fully raise the window and hold the switch UP for 3 seconds; fully lower the window and hold the switch DOWN for 3 seconds. Repeat once if auto doesn’t work.
• Confirm the window seals evenly at the top and doesn’t “pop” outward.
• Test door lock, mirror, speaker, and handle operation before calling it done.
• If you disconnected the battery, reset the clock and check for any warning lights.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$900 (parts + labor)

DIY Cost: $120-$350 (parts only)

You Save: $330-$550 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
